Table 4-7
Step
Volume Box Position
10
and Volume Box Size
11
QUALITY
12
VOL. ANGLE
13
Start Acquisition
4-4-5-2 Functions after the 3D Acquisition
Table 4-8
Step
1
2
3
4
5
6
7
8
U
RETZTECHNIK LTRASOUND
1
Pre-Volume Mode Functions
Task
Adjust the Volume Box (ROI) Position resp. Size with the TRACKBALL in the B-Single image.
The upper trackball key to change the Trackball function from Box Position to Box Size.
Changes the line density at the expense of the acquisition speed (low, mid1, mid2, high1, high2).
To select the Volume Sweep Angle.
Press the FREEZE key resp. the right trackball key to start the Volume acquisition.

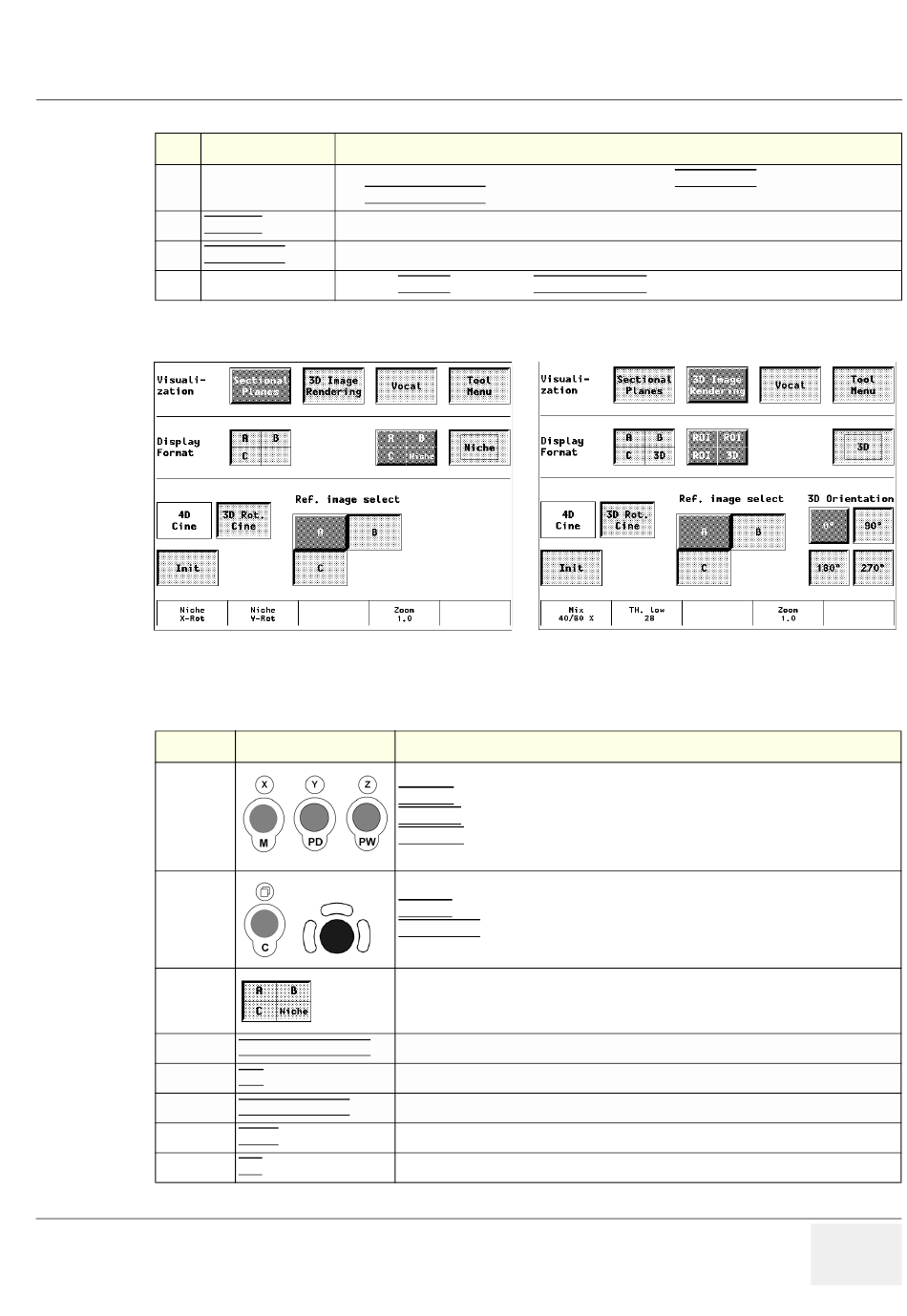

Figure 4-12 Sectional Planes and 3D Image Rendering
Functions after the 3D Acquisition
Task
REF. IMAGE SELECT
INIT
3D ORIENTATION
ZOOM
MIX
Chapter 4 Functional Checks
Expected Results
M-MODE rotary control: Rotation about X-axis of the reference image.
PD-MODE rotary control: Rotation about the Y-axis of the reference image.
PW-MODE rotary control: Rotation about the Z-axis of the reference image.
C-MODE rotary control: Movement along Z-axis of the reference image.
TRACKBALL: Movement along X- and Y-axis of the reference image.
Parts of the orthogonal sections A, B and C are complied to a 3D-section aspect.
The aspect shows quasi a spatial cut into the reference image.
To select the Reference image among A, B or C.
Resets the rotations and translations of a volume section to the initial (start) position.
To change the image orientation of the 3D-image as well as the sectional planes.
The 3D-image as well as the sectional planes can be varied by their aspect ratio.
To adjust the mix ratio between two calculated modes.
