7-7-6 Unable to Record to VCR
Unable to record to VCR!
U
RETZTECHNIK LTRASOUND
1
Is the VCR properly
connected?
YES
Is the VCR tape put into
the device?
YES
Is recording impossible even
by manual operation?
YES
Video Output of System
o.k.?
YES
Replace VCR.

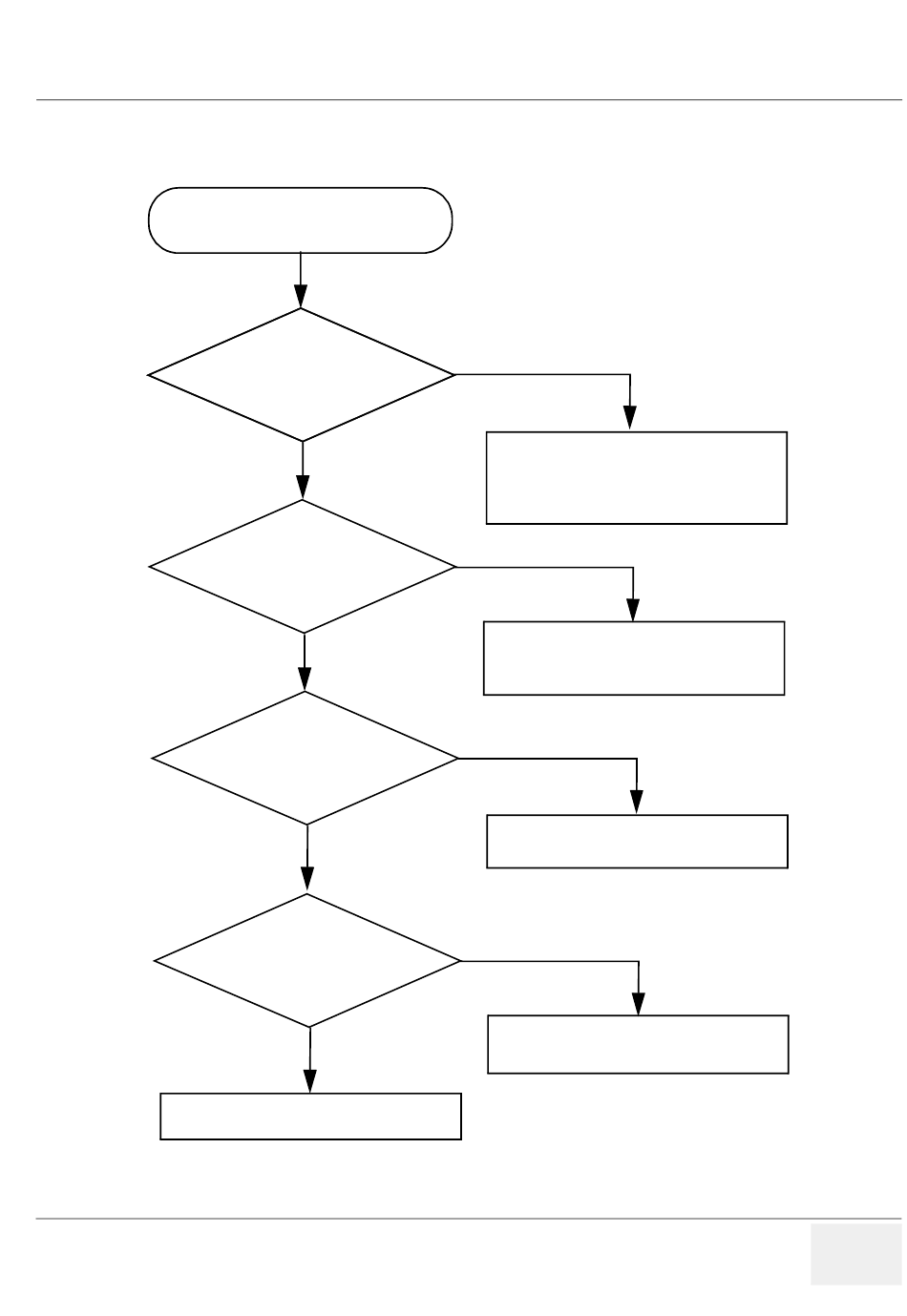

Figure 7-17 VCR Troubleshooting
Chapter 7 Diagnostics/Troubleshooting
V
OLUSON
NO
Check that all signal, and power
supply cable connections to the VCR
unit are OK.
NO
Put the tape into the device and
rewind it.
NO
- Check the signal cable connections
between VCR and Internal I/O.
NO
Replace CKV
