CV3100 series and MINI series high performance general purpose inverter instruction manual
breaker
power supply
forward
reverse
Multi-function terminal 1
Multi-function terminal 2
Multi-function terminal 3
Multi-function terminal 4
Multi-function terminal 5
Multi-function terminal 6
0-10V analog
Signals input
0-20mA analog
Signals input

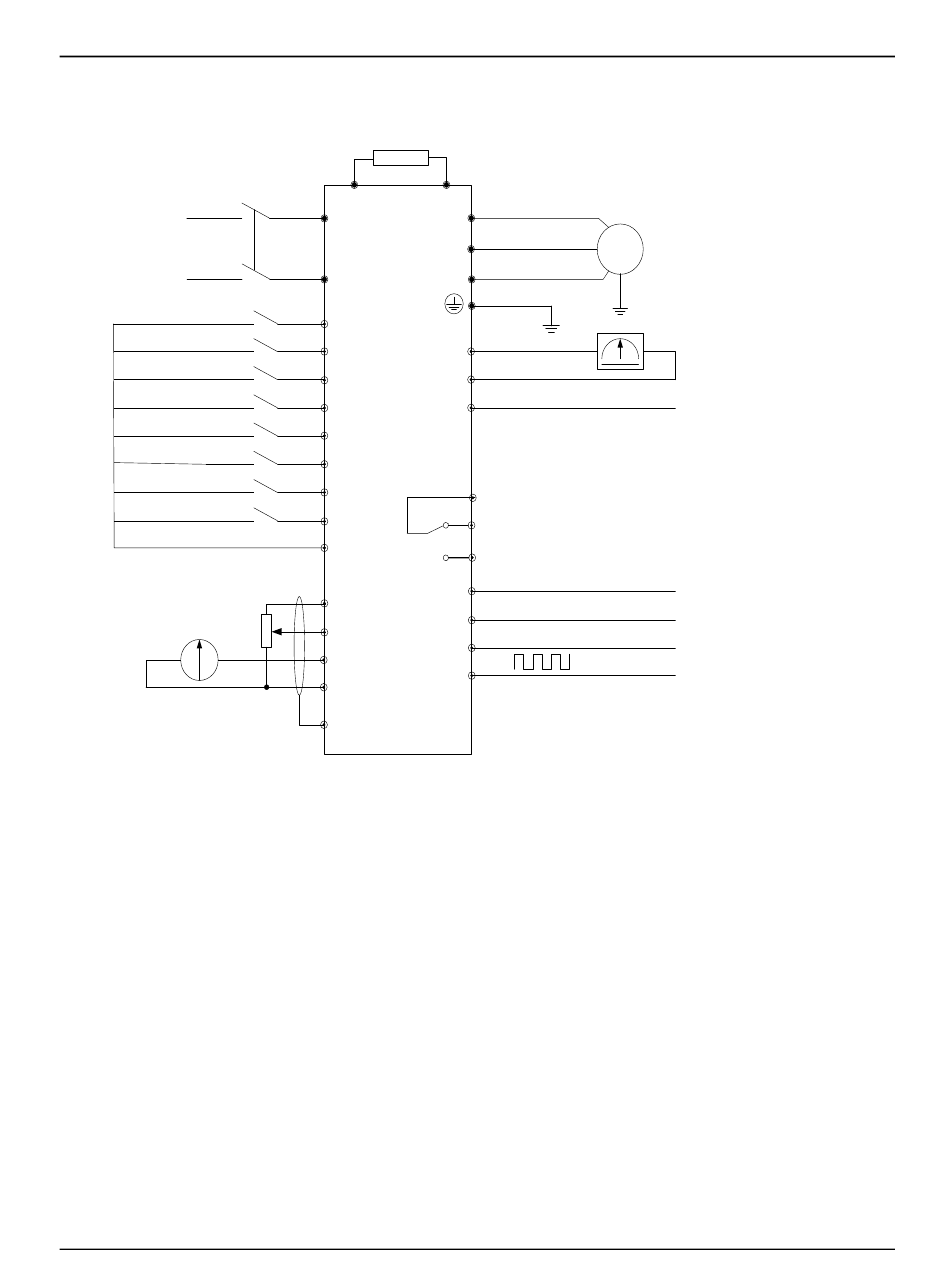

Diagram 3-8 Diagram of wiring for basic running
Applicable inverter: MINI-S-2S0007M-2S0015M
Remarks：
1.--AI2 is used to select voltage or current signal input, switched by the JP1 on the
control panel.
2.--AO1 is used to select Output voltage or current signal, switch by the JP1 on the
control panel.
3.--DI6 Terminal is used to distinguish high speed pulse signal, but it is non-standard
function, should make special description during ordering.
Breaking resistor
P+
PB
L U
V
N W
MINI-S
FWD
REV
GND
DI1
AO1
DO1
DI2
DI3
DI4
TA
DI5
TB
DI6
Programmable relay output
GND TC
+12V
10V
GND
AI1
485+
AI2
485-
GND
PE
3-11
M
0-10V analog signals output
Multi-function Digital output(oc)
12V power supply
RS485 communicaiton
