CV3100 series and MINI series high performance general purpose inverter instruction manual
（3）Only the qualified professional who has been trained and authorized can
perform the wiring operation.
（4） Please pay attention that before energizing, check whether the voltage class
of inverter is identical with the supply voltage, otherwise, it would result in
person casualty and damage of device.

3.4 Wiring of main circuit terminal

Power
3.4.1 Connection of inverter and option
(1) Between power grid and inverter,
breaking equipment like isolating
switch shall be installed for human
safety and compulsive power cutting
during maintaining the device.
(2) The supply circuit of inverter must be
mounted with the fuse or circuit
breaker with over current protection, to
avoid the spread of fault.
(3) When the power supply quality of
power grid is not quite high, an AC
input reactor
additionally. The AC reactor also can
improve the power factor of input side.
(4) The contactor is only for control of
power supply.
Circuit
breaker

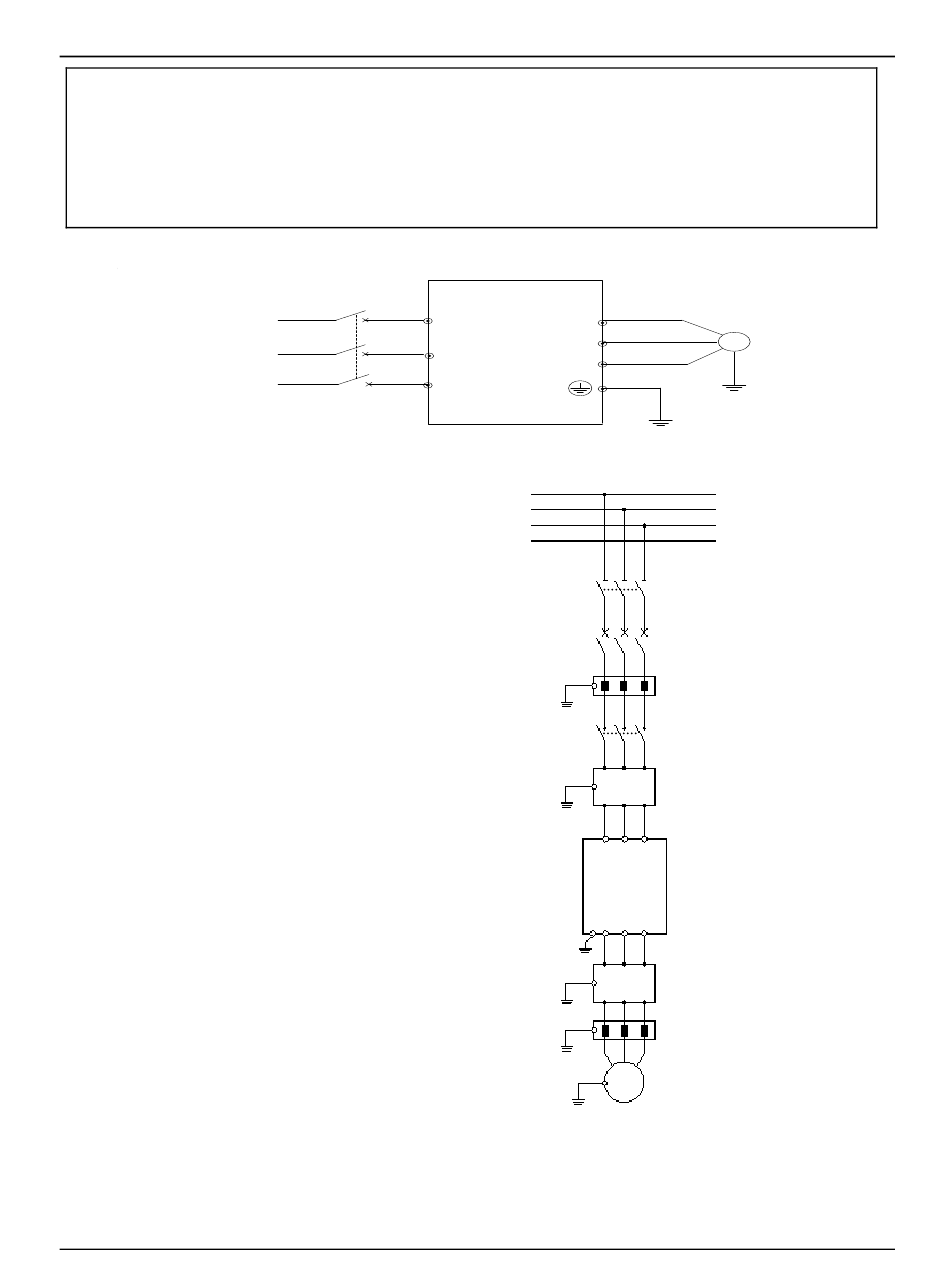

Diagram 3-3 Simple wiring of main circuit
shall be mounted
CV3100
R U
V
S
W
T
R
S
T
N
R S T
CV3100
UVW
E
M
Diagram 3-4 Connection of inverter and option
3-3
M
Isolating switch
Circuit breaker
AC input reactor (optional)
Contactor
Input EMI filter (optional)
Output EMI filter (optional)
AC output reactor (optional)
