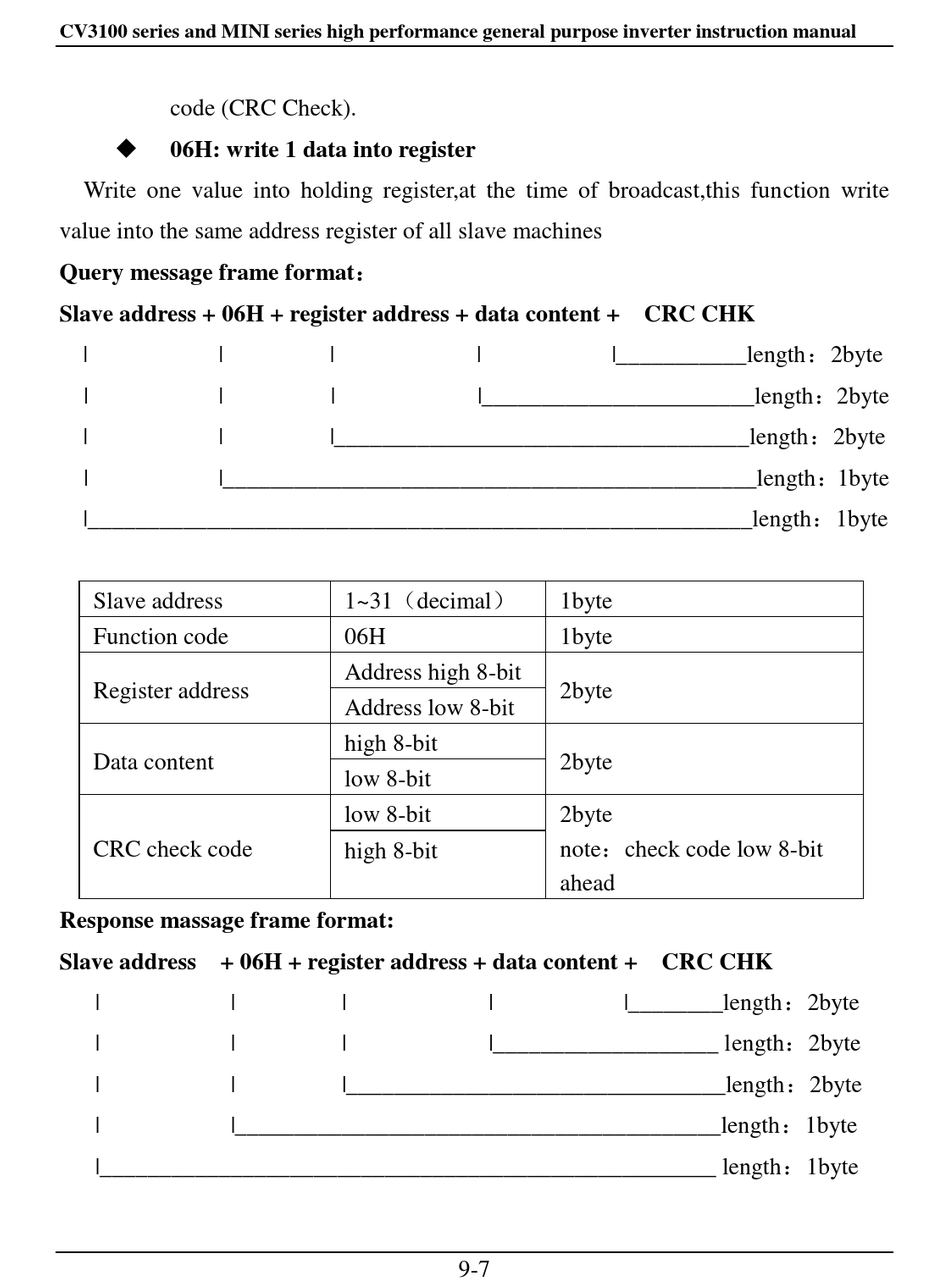

EasyDrive CV3100 Series Instruction Manual page 141

CV3100 series and MINI series high performance general purpose inverter instruction manual
code (CRC Check).

06H: write 1 data into register
Write one value into holding register,at the time of broadcast,this function write
value into the same address register of all slave machines
Query message frame format：
Slave address + 06H + register address + data content + CRC CHK
| |
| |
| |
| |_____________________________________________length：1byte
|________________________________________________________length：1byte
Slave address
Function code
Register address
Data content
CRC check code
Response massage frame format:
Slave address + 06H + register address + data content + CRC CHK
| |
| |
| |
| |_________________________________________length：1byte
|____________________________________________________ length：1byte
| |
| |_______________________length：2byte
|___________________________________length：2byte
1~31（decimal）
06H
Address high 8-bit
Address low 8-bit
high 8-bit
low 8-bit
low 8-bit
high 8-bit
| |
| |___________________ length：2byte
|________________________________length：2byte
9-7
|___________length：2byte
1byte
1byte
2byte
2byte
2byte
note：check code low 8-bit
ahead
|________length：2byte
