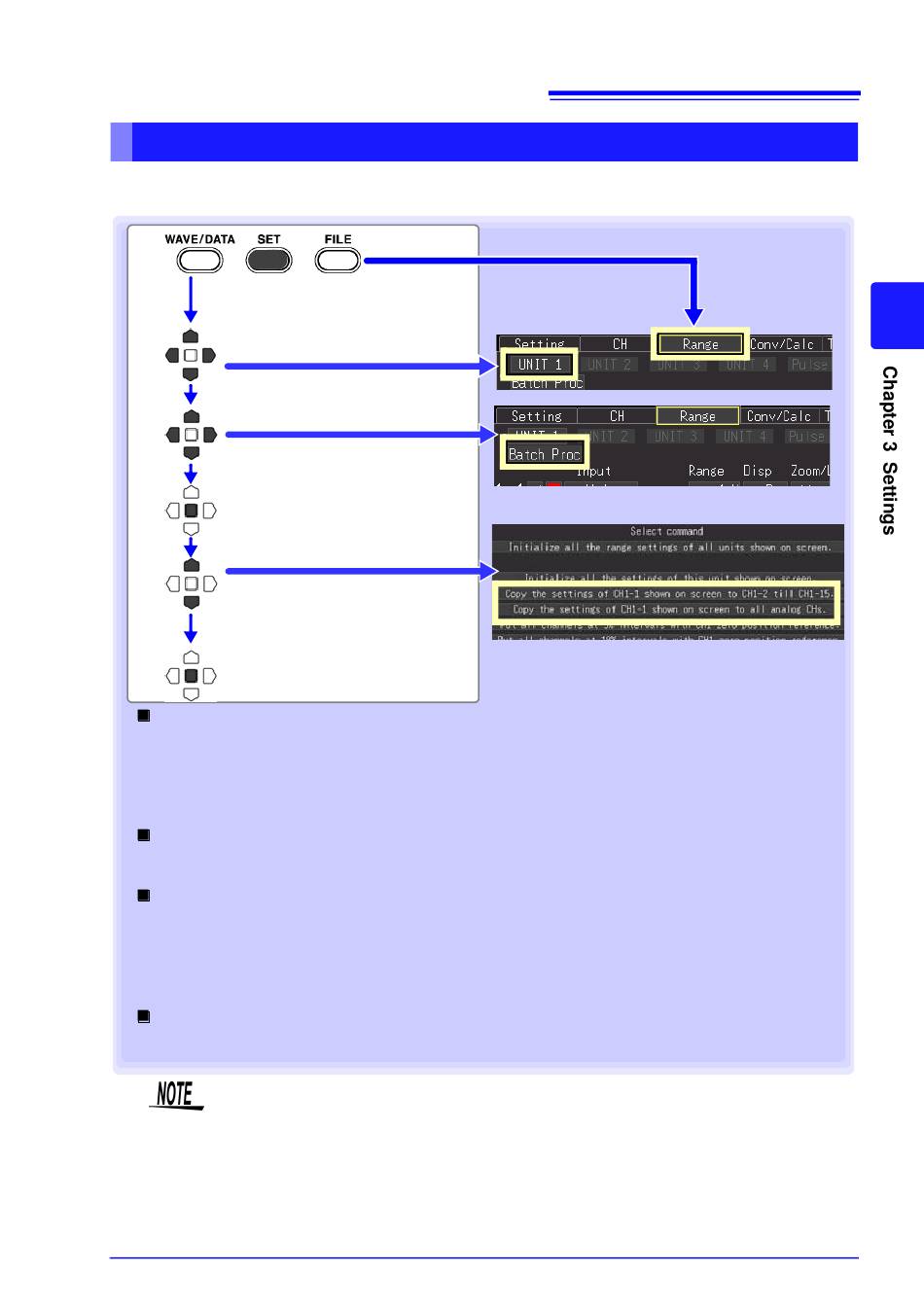

Batch Copying Channel Settings

The CH1-1, CH2-1, CH3-1, CH4-1, P1, W1, and W16 channel settings can be copied to
other channels.
1
Select the screen showing
the channel to copy.
[Range], [Conv/Calc], [Trig
2
& Alm]
Select a unit.
3
Select [Batch
Apply
The selected items are displayed.
4
Select the desired action.
The actions that can be selected
depend on the input units (see
below).
Apply
UNIT1 UNIT4
to
• [Copy the settings of CH1-1 shown on screen to CH1-2 till CH1-15.]
(X indicates a measurement unit symbol.)
Copies the settings from channel CH1 on the screen to channels CH2 to CH15 in the same input unit.
• [Copy the settings of CH1-1 shown on screen to all analog CHs.]
Copies the settings from channel CH1 on the screen to the enabled (On) channels in UNIT2 to UNIT4.
Pulse Logic Alarm
• [Copy the settings of P1 shown on screen to other pulse CHs.]
Copies the settings from channel P1 on the screen to channels P2 to P8. Logic settings cannot be copies.
calc1
• [Copy the settings of W1 shown on screen to W2 till W15.]
Copies the settings from waveform calculation channels W1 and W16 on the screen to channels W2 to W15.
• [Copy the settings of W1 shown on screen to all the other waveform calc. CHs.]
Copies the settings from waveform calculation channel W1 on the screen to the enabled (On) channels
from W2 to W30.
calc2
• [Copy the settings of W16 shown on screen to W17 till W30.]
Copies the settings from waveform calculation channel W16 on the screen to channels W17 to W30.
• The contents of the displayed settings are copied, except for "waveform
display color", "input type", and "measurement On/Off settings". How-
ever, "input type" and "measurement On/Off settings" can be copied from
the [Range]
• RTD (Resistance Temperature Detector) and resistance settings (spe-
cific to a Universal Unit) cannot be copied to a Voltage/Temperature Unit.
