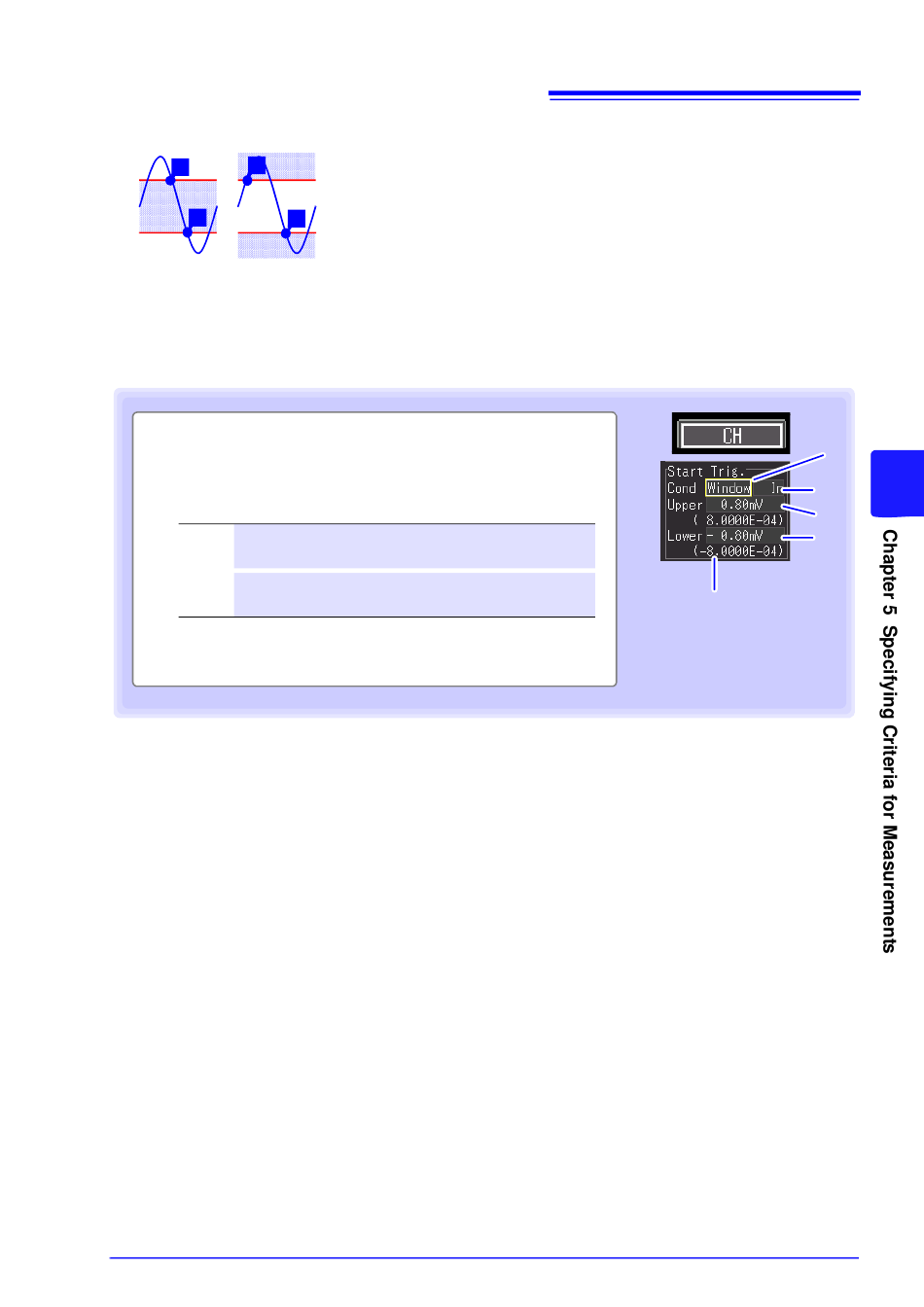

Using a Window Trigger
T
T
T
T
IN OUT
1
Select [Window]
2
Select trigger timing (window type).
Setting options: (
∗
In Trigger when the input signal level enters the
window defined by the upper/lower thresholds.
Out Trigger when the input signal level exits the win-
dow defined by the upper/lower thresholds.
3
Enter the upper/lower threshold value.
5.1 Triggering Measurement Start and Stop
An input signal level "window" within which recording will (or will
not) occur can be defined by upper and lower threshold levels.
You can select whether measurement starts or stops when the
input signal level enters (In) or exits (Out) of this window.
Upper and lower thresholds can be verified in the monitor or on
the Waveform screen. When scaling is enabled, the scaled
threshold values are displayed.
Make trigger settings on the
nel.
"Key Setting Procedure" (p .103)
See:
as the start/stop trigger type.
∗
: default setting)
[CH] screen of the displayed chan-
Scaled values are displayed
when scaling is enabled.
105
3
1
5
2
3
3
