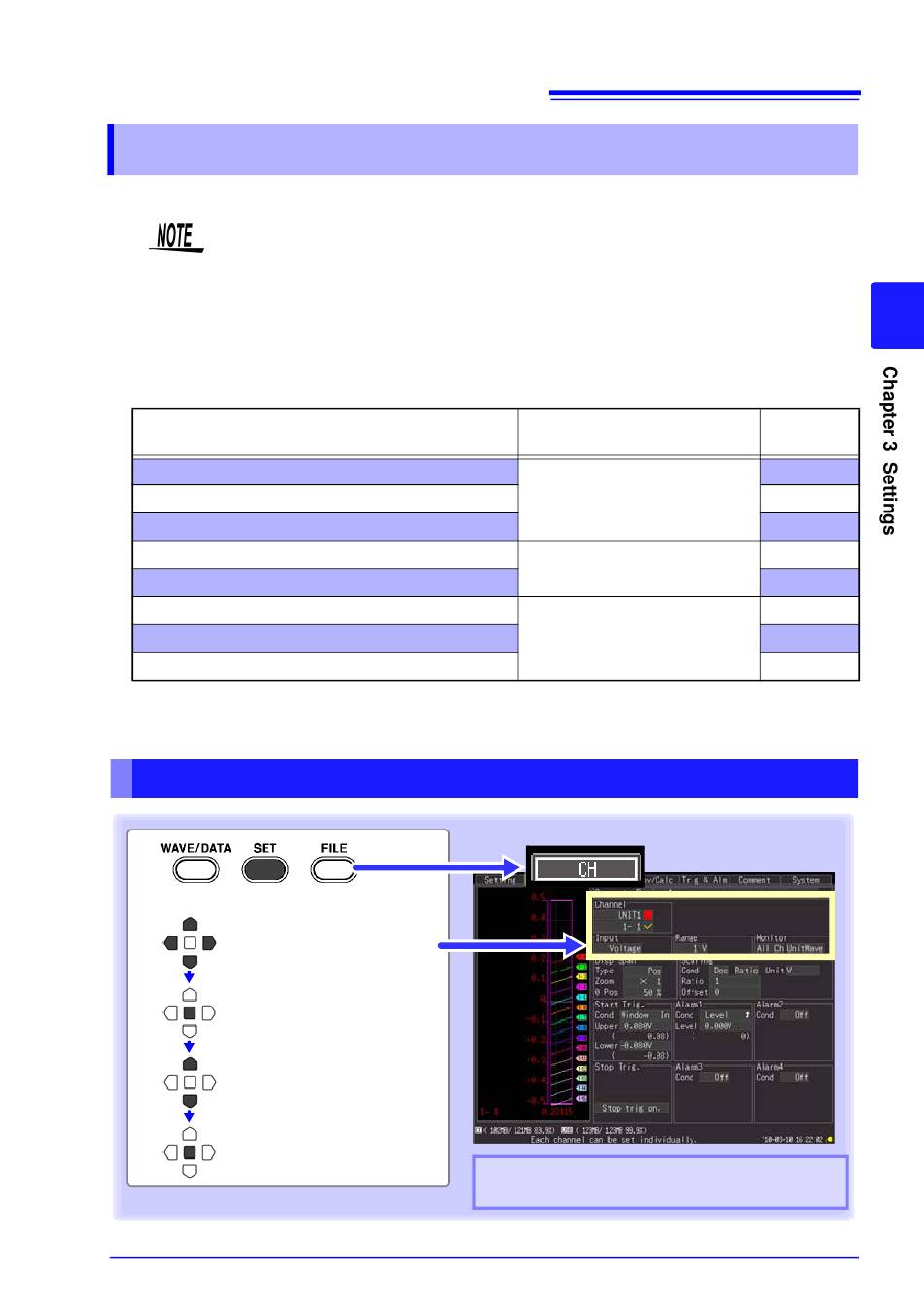

3.3 Input Channel Settings

Configure the input channel settings on the
The Setting screen cannot be displayed while measuring.
Input channels are as follows. Each channel can provide the following measurements.
•Voltage/Temp Unit (UNIT1 to UNIT4, each with analog waveform input channels CH1 to
CH15)
•Universal Unit (UNIT1 to UNIT4, each with analog waveform input channels CH1 to
CH15)
•The HiLogger's external control terminals (pulse/logic waveform inputs P1 to P8)
Application
Voltage Measurement
Temperature Measurement (using thermocouples)
Humidity Measurement
Humidity Measurement (using RTDs)
Resistance Measurement
Pulse or Logic Measurement
Integration (Count) Measurement
Revolution Measurement
Other than these, measurements with specific criteria and alarm outputs are available.
See "Chapter 5 Specifying Criteria for Measurements" (p. 101) for details.

Key Setting Procedure

1
Select the
2
Move to a setting item.
Open the setting options
for the item to be set.
Select from the listed op-
tions.
Apply
[CH] screen.
UNIT
the channel to be set.
3.3 Input Channel Settings
[CH] screen.
Channels Used
Channels on a Voltage/Temp
Unit or Universal Unit
Channels on an Universal Unit
Pulse/logic input channels
(HiLogger external control ter-
minals)
selects the input unit and
55
3
3
Reference
page
(p. 57)
(p. 58)
(p. 61)
(p. 60)
(p. 62)
(p. 63)
(p. 64)
(p. 65)
CHAN select
