6.2 Saving Data
When [Select & Save] is selected (to save after selecting setting contents)
Settings are the same as for Quick Save.
For details about the type, format, and span, see P.131 , and for setting procedures, see
See:
P.133 .

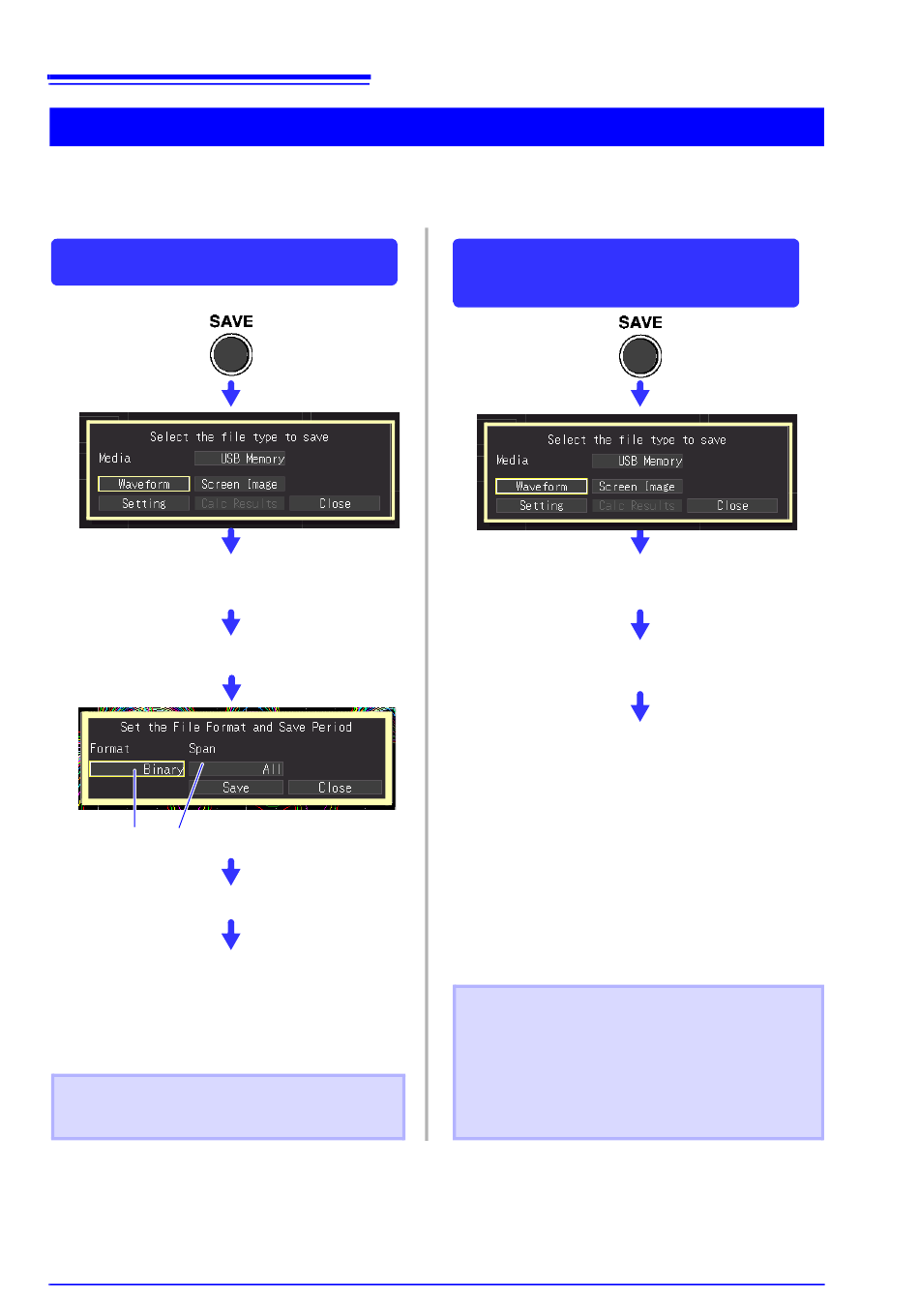

Waveform Data
Select [Media].
(CF/USB Memory)
Select [Waveform], and press ENTER.
Select, and press ENTER.
Select [Save], and press ENTER.
Select [Yes] in the confirmation dia-
log, and press ENTER.
Before saving a partial waveform, specify
the span to be saved (p. 92).
The setting dialog
is displayed.
Screen Images and Numerical
Calculation Results
Note:
Display the screen to
be captured before
pressing SAVE.
Select [Media].
(CF/USB Memory)
Select [Screen Image]
[Calc Results], and press ENTER.
Select [Yes] in the confirmation dia-
log, and press ENTER.
• Numerical calculation must be configured
in order to save calculation results
(p. 155).
• When a save span is specified for calcu-
lation results, the results are saved for
the specified span.
The setting dialog
is displayed.
or
