10.2 LAN Settings and Connections (Before connecting to the network)
3. Connecting the HiLogger to a PC

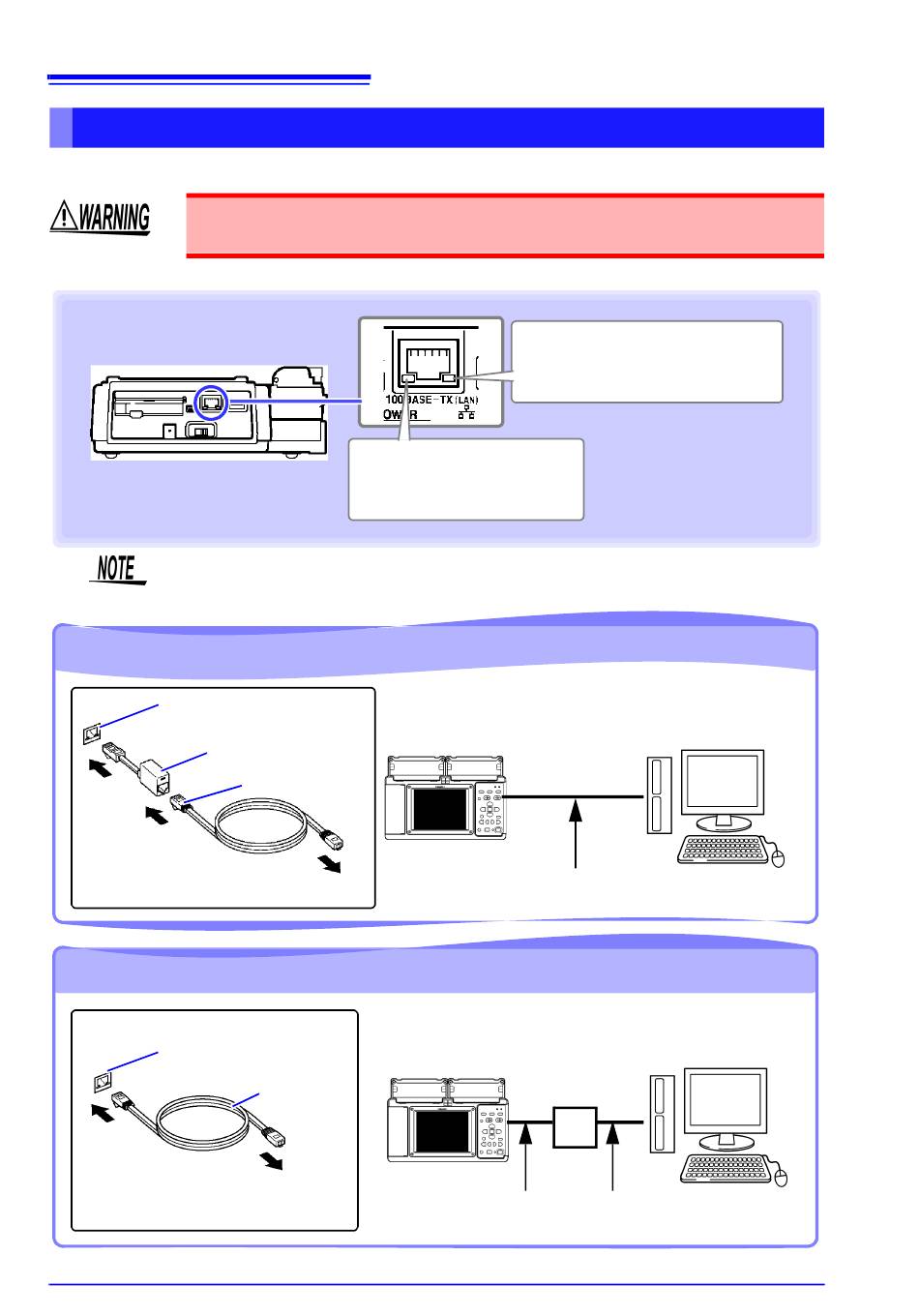

Connect the HiLogger to the PC with an Ethernet cable.
Always turn both devices OFF when connecting and disconnecting a
LAN cable. Otherwise, an electric shock accident may occur.
HiLogger Ethernet Jack
If the green LED does not light when connected to the LAN, the HiLogger or
connected device may be damaged, or the cable may be faulty.
Connecting one HiLogger to one PC
HiLogger Ethernet
Jack
Crossover adapter
2
1
Connecting through a Hub
HiLogger Ethernet
Jack
1
Green LED
Lights when linked, and blinks
during communication.
HiLogger
9642 LAN
Cable
3
PC
Items to prepare: 9642 LAN Cable (2), Hub
HiLogger
9642 LAN
Cable
3
Hub
Yellow LED
Lights when communicating at 100
Mbps, and not lit at 10 Mbps.
Items to prepare: 9642 LAN Cable, Cross-
over adapter (supplied)
9642 LAN Cable
Hub
9642 LAN Cable
PC
PC
