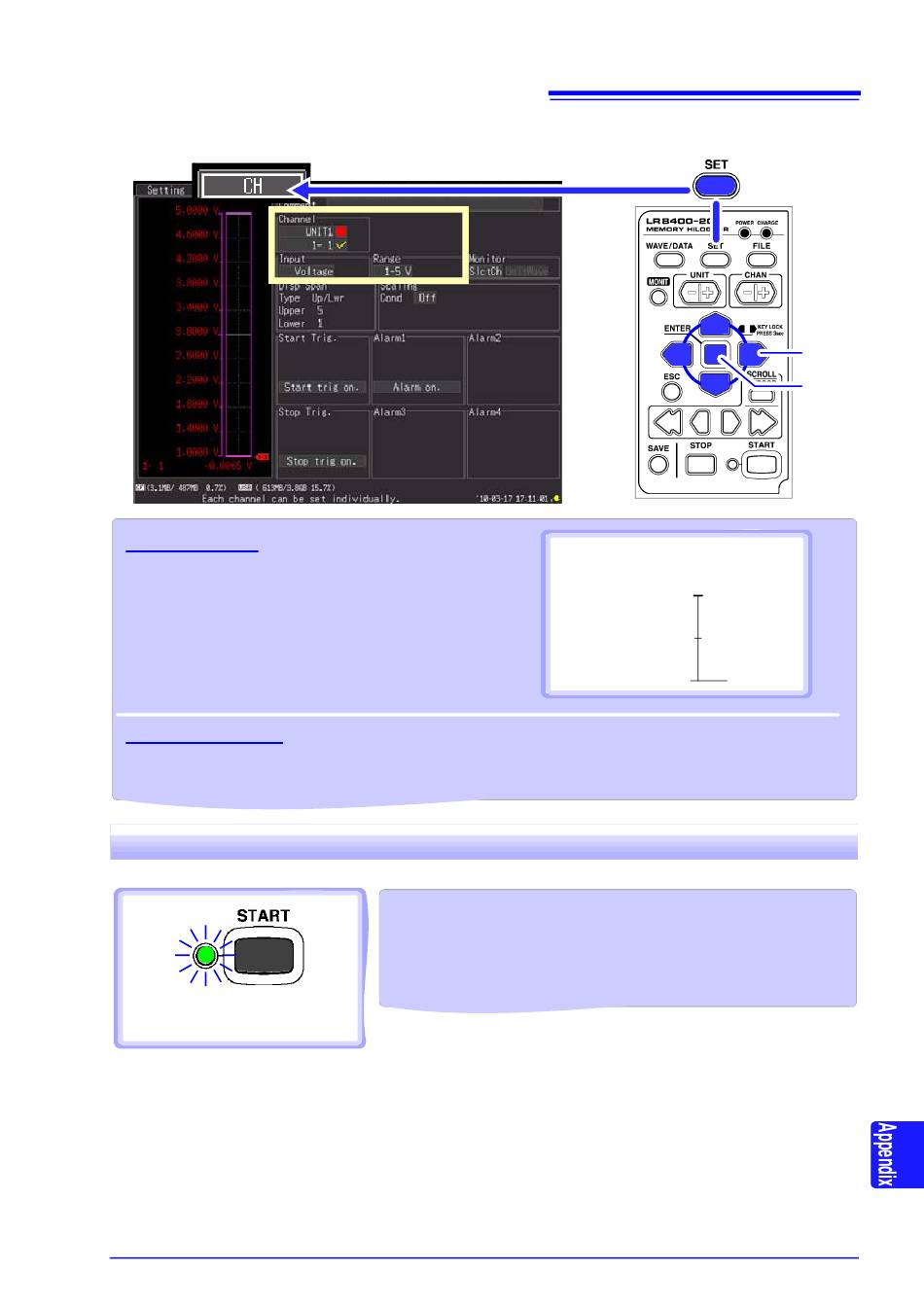

Make input channel settings on the
Setting Example
Unit: UNIT1, Channel: 1-1, Input: Voltage, Range:
1-5V
Measurement Hints
The "1-5 V" setting automatically selects the 10-V range with a 5-V upper limit and 1-V lower
limit. To change the upper and lower limits, select the 10-V range.
3
Start and finish measuring
Press START.
Appendix 10 Introduction to Measurement Applications
[CH] screen.
• Data is recorded for the specified recording time with calcu-
lations performed every minute, and saved to CF card.
Recording stops one hour after starting.
• To stop recording early, press STOP.
When set as shown at the left,
the vertical axes appear like this.
5 V
1 V
29
A
1
2
Select
Apply
