88
4.2 Observing Waveforms
Key Setting Procedure
Move to a setting item.
Open the setting options
for the item to be set.
Select from the listed op-
tions
Apply

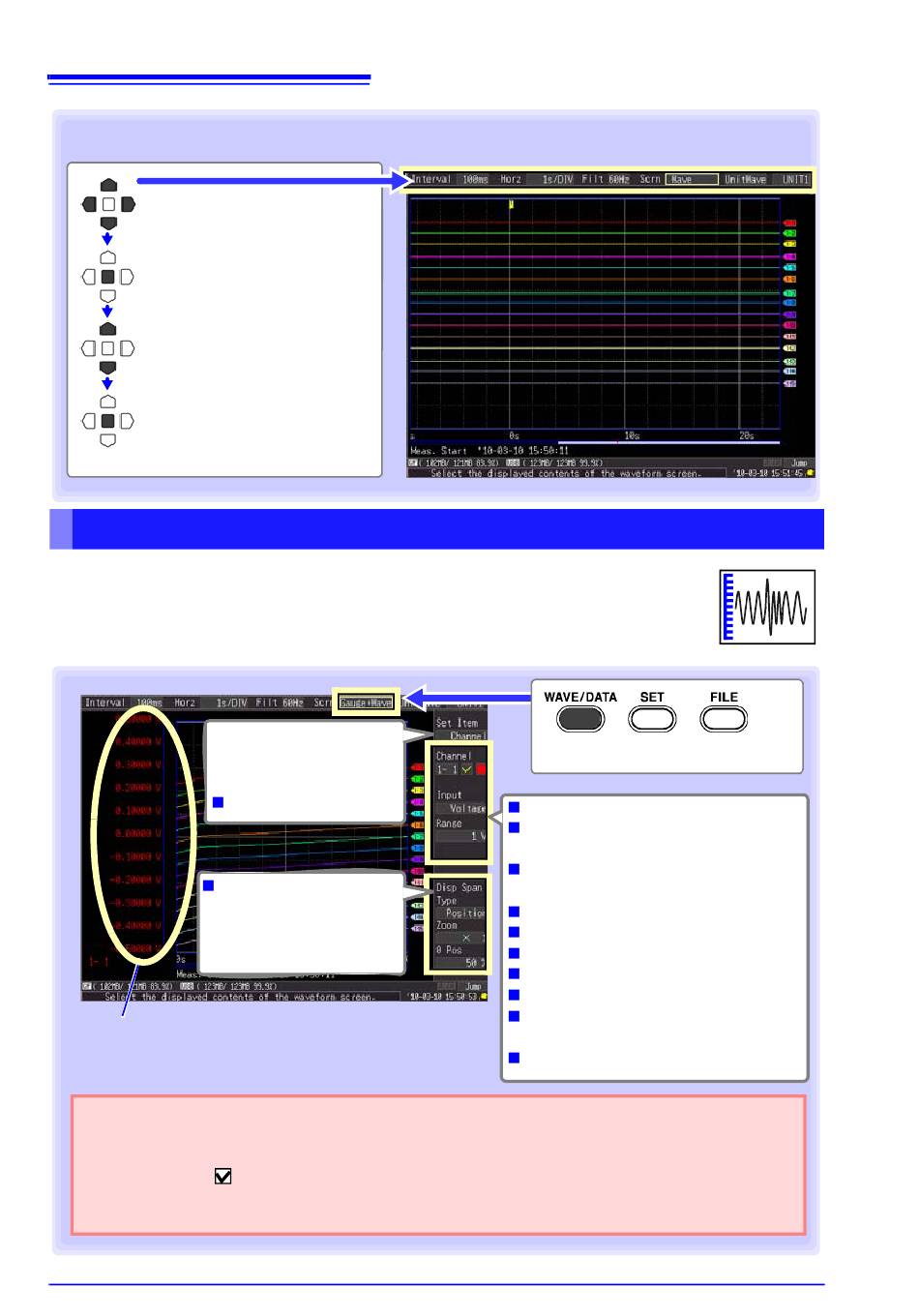

Displaying Gauges

A gauge corresponding to the measurement range of each channel can
be displayed at the left side of the screen, for confirming measurement
values.The color of the gauge matches the waveform display color of its
input channel. Channel settings can also be changed.
You can switch between
channel settings and
event search settings.
Gauge
About Channel Settings
Press CHAN to select channels for gauge display.
However, note that when measurement data is displayed, only those channels that are en-
abled (set to On
When starting measurement with all channels disabled (Off), CH1-1 (only) is automatically
enabled.
Event Search (p. 95)
Display area settings
Display position (p. 68)
Upper and lower dis-
play limits (p. 69)
) for measurement can be selected.
Select [Gauge+Wave].
Voltage measurement (p. 57)
Temperature measurement
(Thermocouple) (p. 58)
Temperature measurement (RTD)
(p. 60)
Humidity measurement (p. 61)
Resistance Measurement (p. 62)
Pulse/Logic Measurement (p. 63)
Integration (pulse count) (p. 64)
Revolution measurement (p. 65)
Select the alarm display type
(p. 111)
Waveform Calculation (p. 161)
