Checking Communication Status - Hioki Memory HiLogger LR8401-20 Instruction Manual

217
10.6 Auto Sending Data using the FTP Client Function

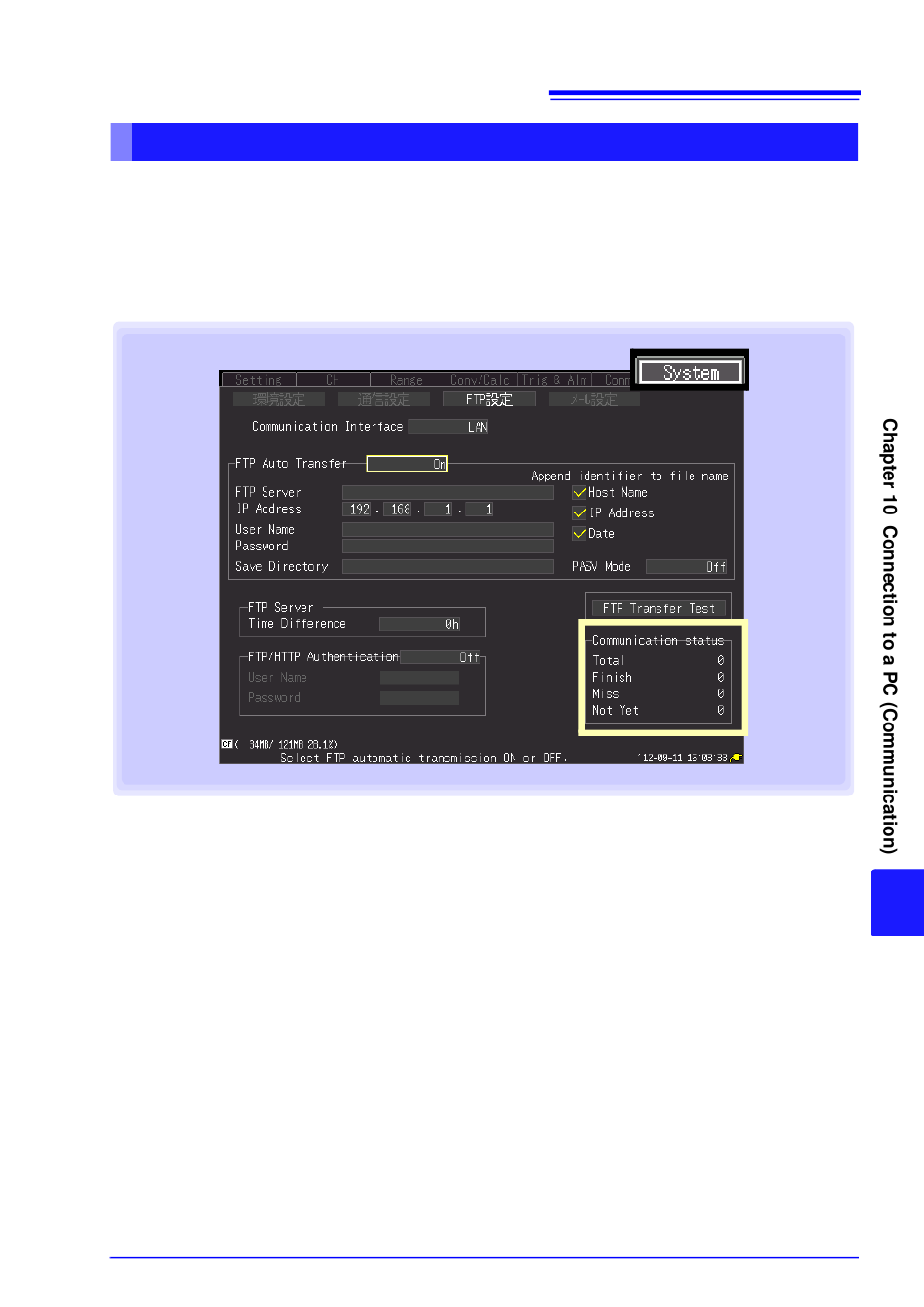

Checking Communication Status

The communication status can be checked as follows.
The status of all FTP file transfers, the number already sent, the number that failed to
send, and the number of unsent files are displayed.
Status values are reset to zero by the following:
• When pressing START to start measuring
• When changing LAN-related settings
3
For example, Total 10, Sent (Finish) 7, Failed (Miss) 1, and Unsent (Not Yet) 2
Here, ten FTP transfers were initiated, seven of which were sent, one of which failed,
10
and two of which are waiting to be sent.
