9.1 External Trigger Input

Chapter 9
External Control
The external control terminals on the HiLogger support trigger signal input and out-
put.
Be sure to read p. 43 to p. 45 for external control terminal connection details.
9.1 External Trigger Input
3
Triggering can be controlled by applying a signal from an external trigger source
(p. 108).
This allows synchronous operation of multiple HiLoggers by parallel triggering (p.
166).

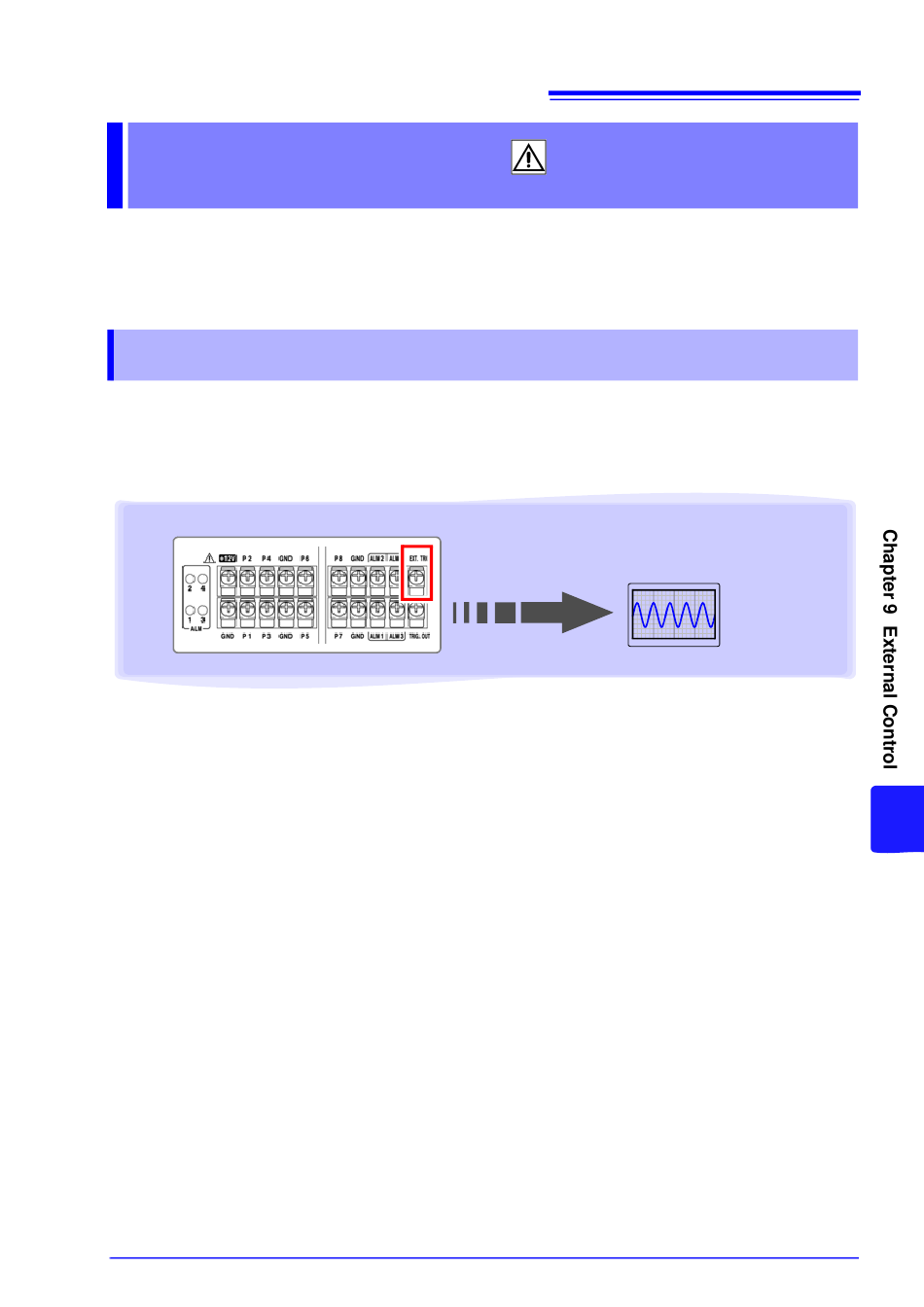

External signal Trigger event occurs.
input
(EXT.TRIG)
See "Using External Triggering"(p .108) for setting procedures and trigger signal
details.
The external signal input function can be changed to insert event marks.
"Inserting Event Marks Using External Input Signals"(p .96)
