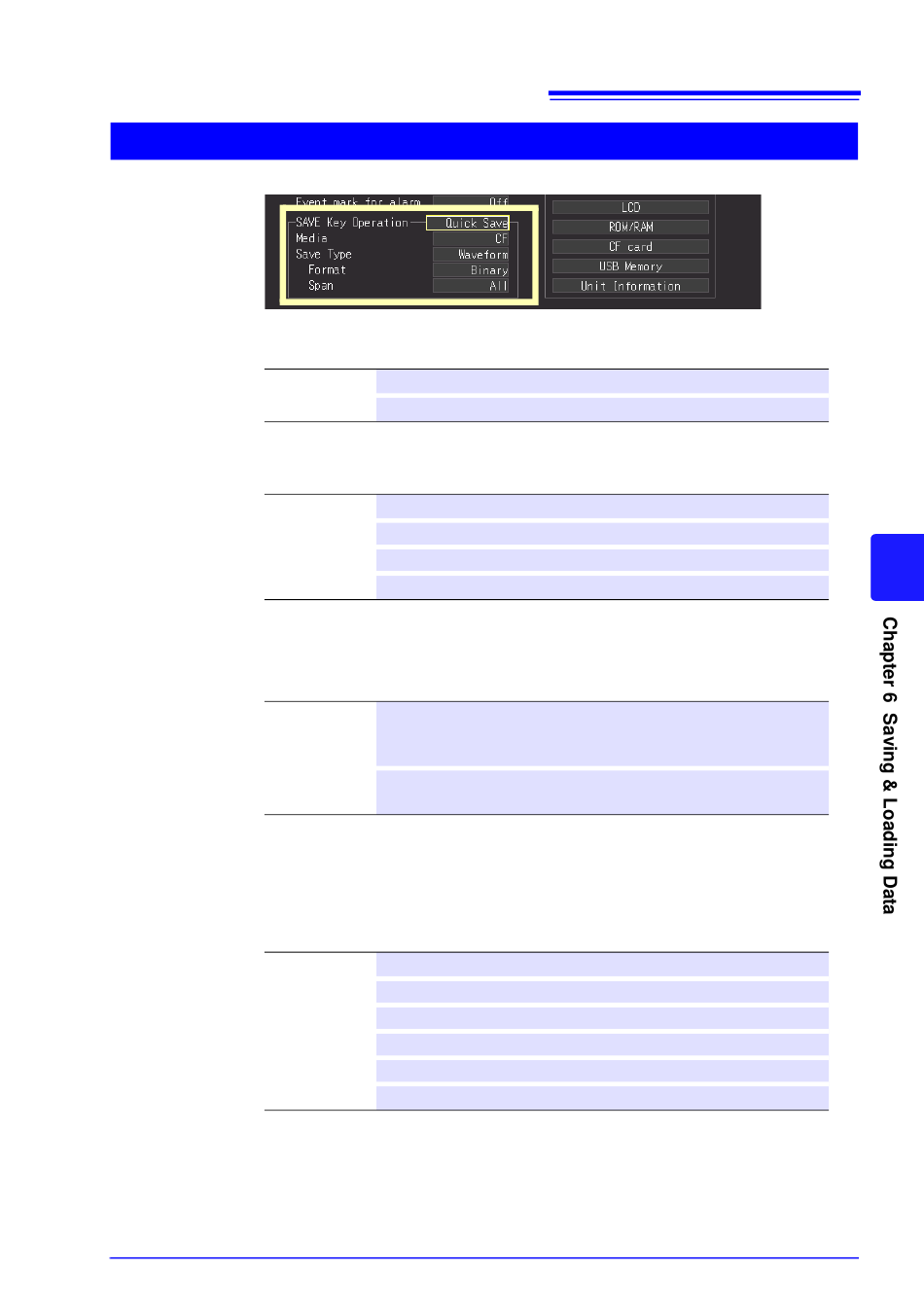

When you select [Quick Save] (to save data upon pressing SAVE)
Settings are displayed. Select contents to be saved.
Media
Select the priority save destination when
Setting options: (
∗
CF
USB Memory
Save
Select the type of data to save.
Type
Setting options: (
Waveform
Screen Image
Setup File
Calc Results
Calculation must be configured before saving numerical calculation results (p. 155).
Format
(When
Setting options: (
Binary
CSV
Data saved in CSV format cannot be reloaded into the HiLogger or Logger Utility pro-
gram. Fortunately, data saved in binary format can be later converted to text (CSV) for-
mat with the HiLogger or Logger Utility.
Span
(When
Setting options: (
∗
All
A-B
Start-A
Start-B
A-End
B-End
• Before saving a partial waveform, specify the span to be saved (p. 92).
• When a save span is specified for calculation, the results are saved for the
specified span.
Executing a Save
Press
∗
: default setting)
Save to the CF card first
Save to the USB flash drive first
∗
: default setting)
∗
Save waveform data.
Save screen image.
Save setting configuration data.
Save numerical calculation results.
[Waveform] is selected) Select the data format.
∗
: default setting)
∗
Select this format to be able to reload the saved data into the
HiLogger, or so that it can be loaded into the Logger Utility
program.
Select this format to save the data as a text file. This format
is ideal for loading into spreadsheet programs like Excel.
[Waveform] is selected) Select the time span to be saved.
∗
: default setting)
Save all measured waveform data.
Save waveform data between A/B cursors.
Save waveform data from the start of measurement to cursor A.
Save waveform data from the start of measurement to cursor B.
Save waveform data from cursor A to the end of measurement.
Save waveform data from cursor B to the end of measurement.
SAVE to immediately save data according to current settings.
6.2 Saving Data
[Quick Save] is selected.
