The screen switch-
es each time you
press the key.
(7 display types)
[Gauge+Wave]
[Wave]
[Wave+Value]
[Value+Cmnt]
[Value]
[Wave+Calc]
[Wave+Crsr]
Operational information
is displayed along the
bottom of the screen.

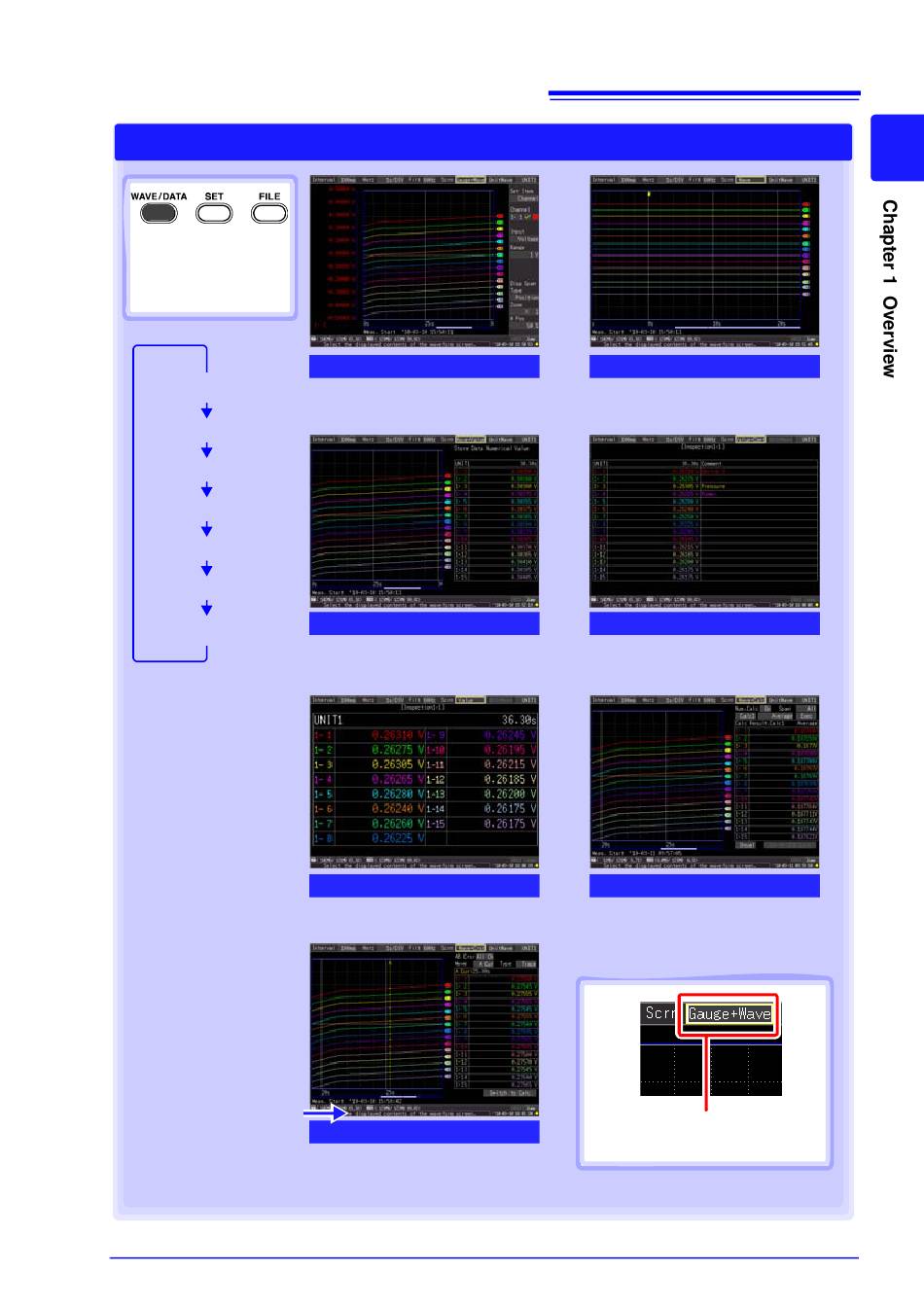

1.3 Names and Functions of Parts, Screen Configurations
Waveform/Numerical Screens
[Gauge+Wave] Screen
Measurement data is displayed as
waveforms with gauges (p. 88).
[Wave+Value] Screen
Measurement data is displayed
as waveforms and numerical val-
ues (p. 89).
[Value] Screen
Measurement data is displayed
as numerical values (p. 89).
[Wave+Crsr] Screen
Measurement data is displayed
as waveforms with cursor values
(p. 93).
[Wave] Screen
Measurement data is displayed
as waveforms (p. 87).
[Value+Cmnt] Screen
Measurement data is displayed as
numerical values with comments
(p. 89).
[Wave+Calc] Screen
Measurement data is displayed
as waveforms with calculation re-
sults (p. 157).
Switches among the
above screens.
21
1
3
