2.2 Product Description of Each Part

 External Profile of 72Pins Robot Controller
Connector Terminal
of 72Pins Overloaded
Twisted Pair of
26-pins
Twisted Pair of
20-pins
Twisted Pair of
16-pins
Input Terminal of
Power
Connection Terminal
of FlexPendant

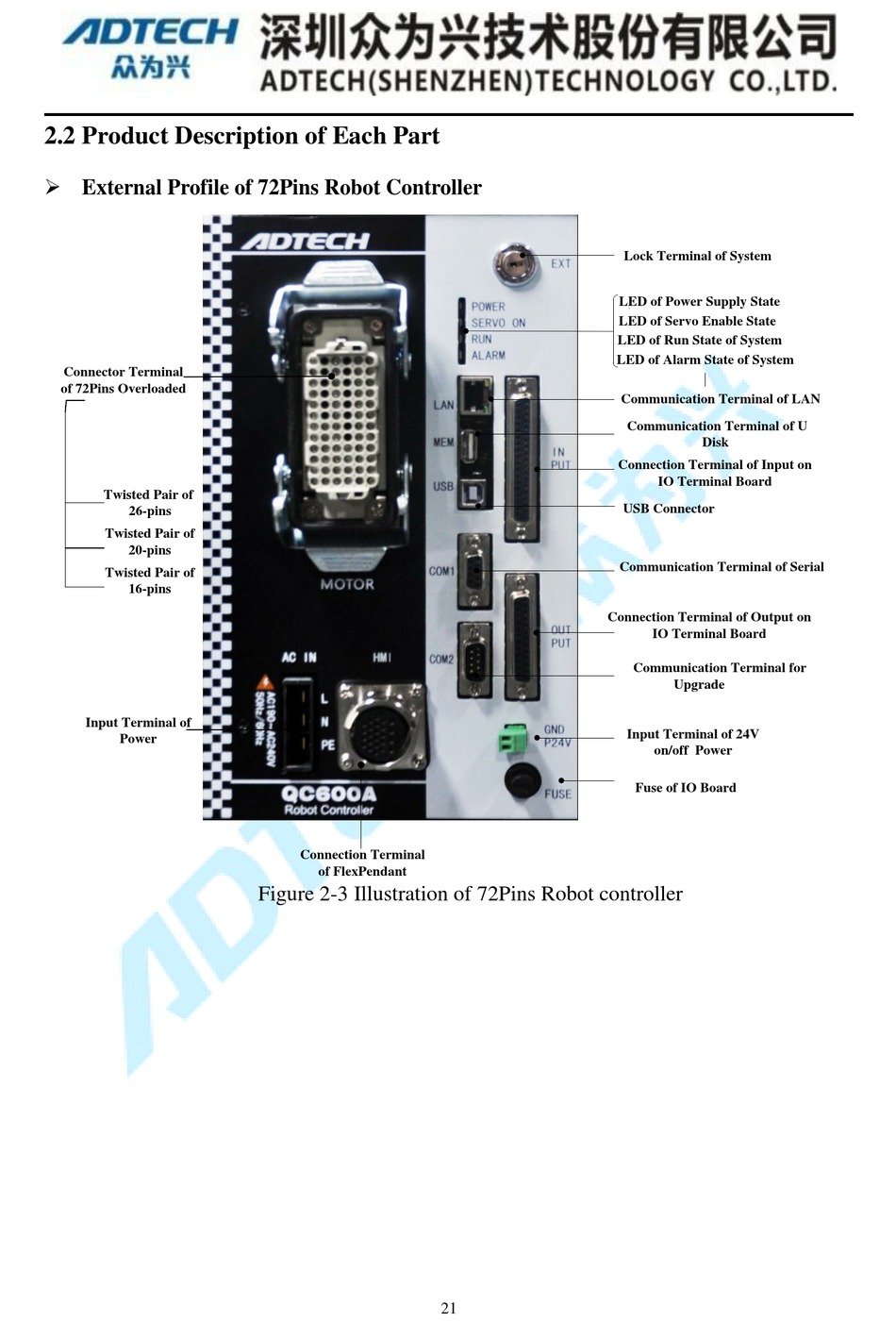

Figure 2-3 Illustration of 72Pins Robot controller
Connection Terminal of Output on
21
Lock Terminal of System
LED of Power Supply State
LED of Servo Enable State
LED of Run State of System
LED of Alarm State of System
Communication Terminal of LAN
Communication Terminal of U
Disk
Connection Terminal of Input on
IO Terminal Board
USB Connector
Communication Terminal of Serial
IO Terminal Board
Communication Terminal for
Upgrade
Input Terminal of 24V
on/off Power
Fuse of IO Board
