POWER
SERVO ON
RUN
ALARM
LAN
MEM
USB
COM1
COM2
INPUT
OUTPUT
GND
P24
FUSE

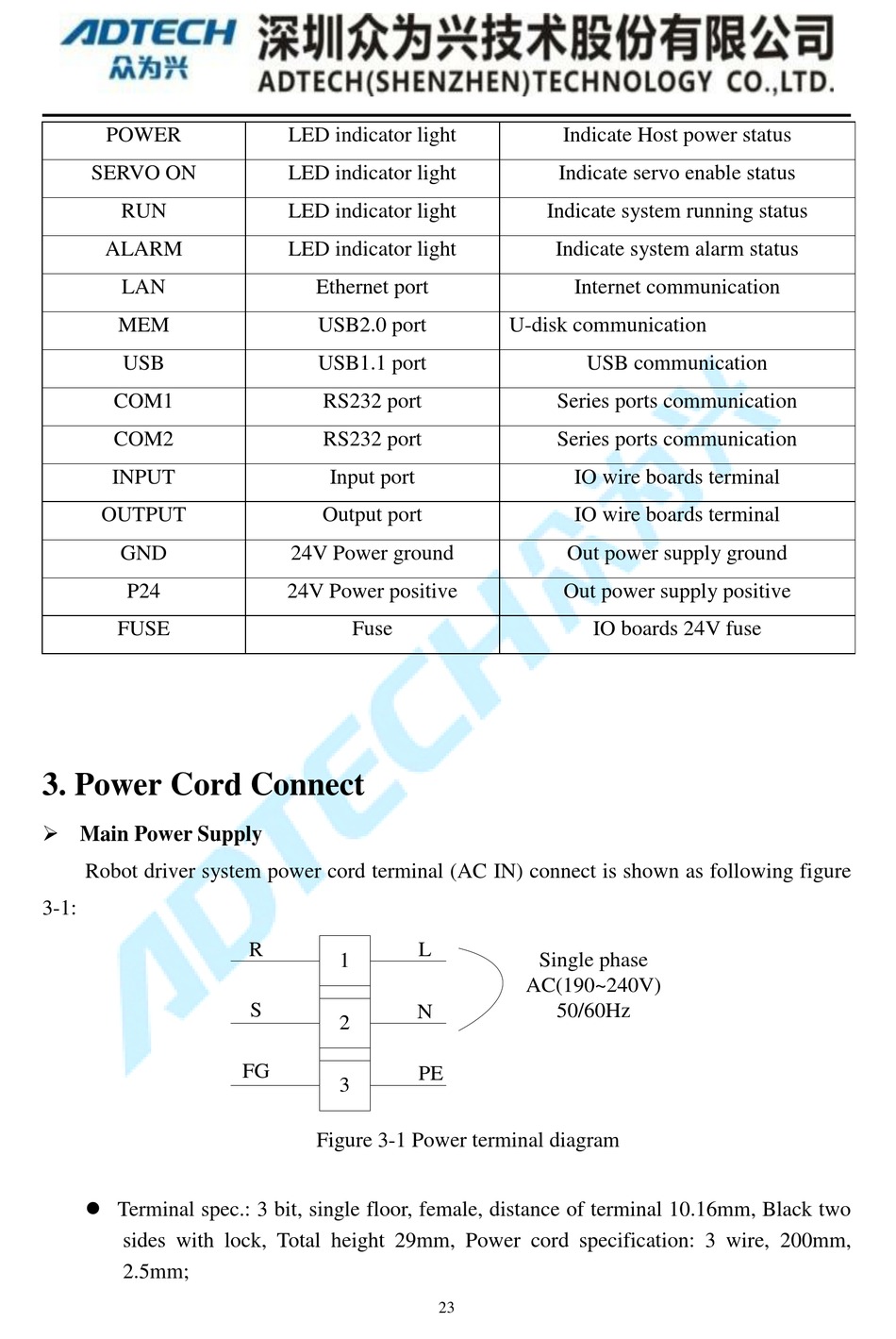

3. Power Cord Connect

 Main Power Supply
Robot driver system power cord terminal (AC IN) connect is shown as following figure
3-1:
 Terminal spec.: 3 bit, single floor, female, distance of terminal 10.16mm, Black two
sides with lock, Total height 29mm, Power cord specification: 3 wire, 200mm,
2.5mm;
LED indicator light
LED indicator light
LED indicator light
LED indicator light
Ethernet port
USB2.0 port
USB1.1 port
RS232 port
RS232 port
Input port
Output port
24V Power ground
24V Power positive
Fuse
R
1
S
2
FG
3
Figure 3-1 Power terminal diagram
Indicate Host power status
Indicate servo enable status
Indicate system running status
Indicate system alarm status
Internet communication
U-disk communication
Series ports communication
Series ports communication
IO wire boards terminal
IO wire boards terminal
Out power supply ground
Out power supply positive
L
Single phase
AC(190~240V)
50/60Hz
N
PE
23
USB communication
IO boards 24V fuse
