VACON® NXP Advanced Safety Options
Operating Guide
Logical level
SLS 3 Limit
SLS 2 Limit
SLS 1 Limit
SLS Request
Speed
SLS 1 limit
Logical level
SLS 1 Active
SLS 1 Reached
Acknowledgement

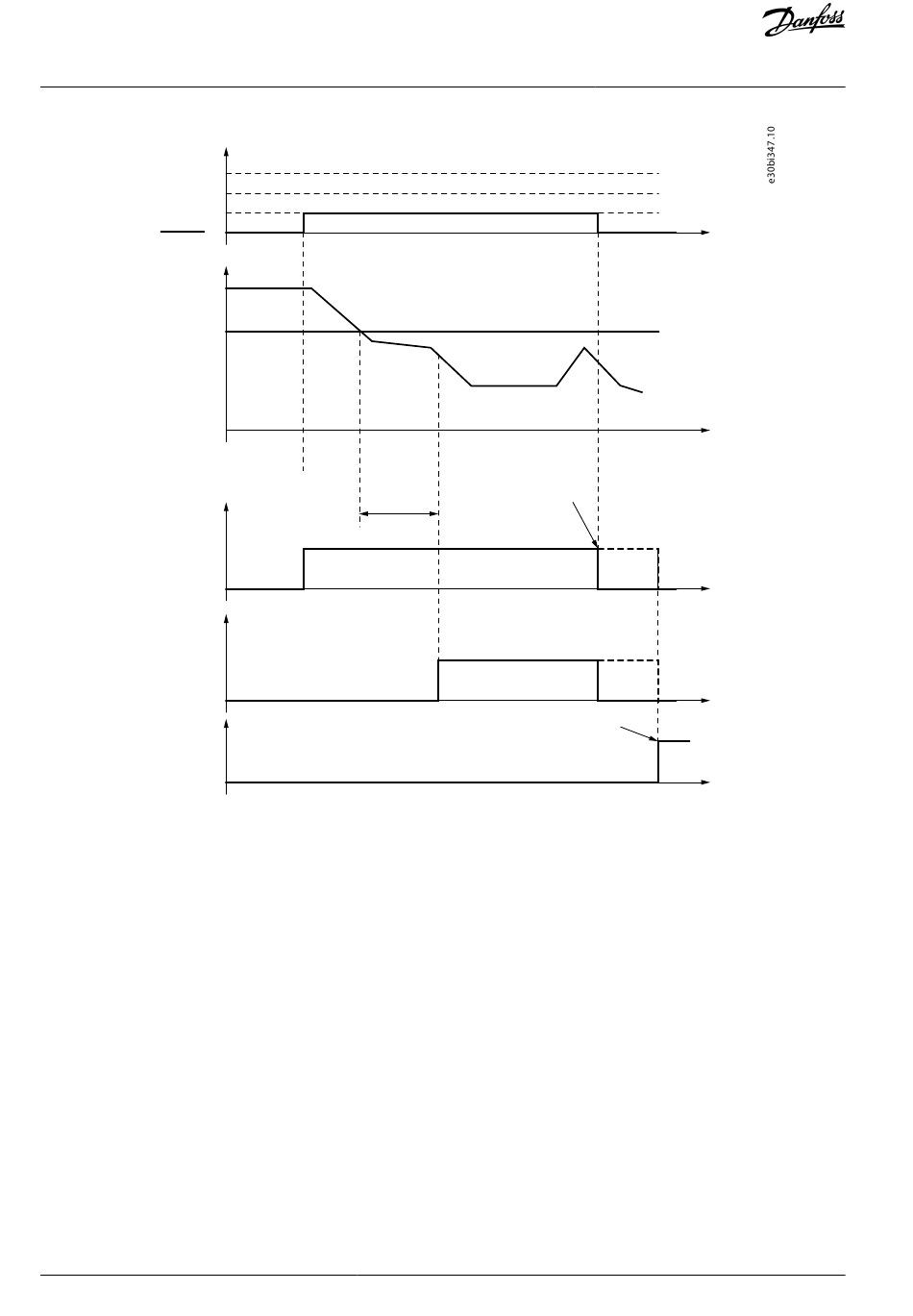

Illustration 52: The SLS 1 is Requested and Deactivated. Time Monitoring Only.
94 | Danfoss A/S © 2021.06
Automatic acknowledgement
SLS td2
Manual acknowledgement
Safety Functions
t
t
t
t
t
