VACON® NXP Advanced Safety Options
Operating Guide
Logical level
SS1 Request
Speed
Zero Speed
Logical level
SS1 Active
SS1 Reached
Acknowledgement

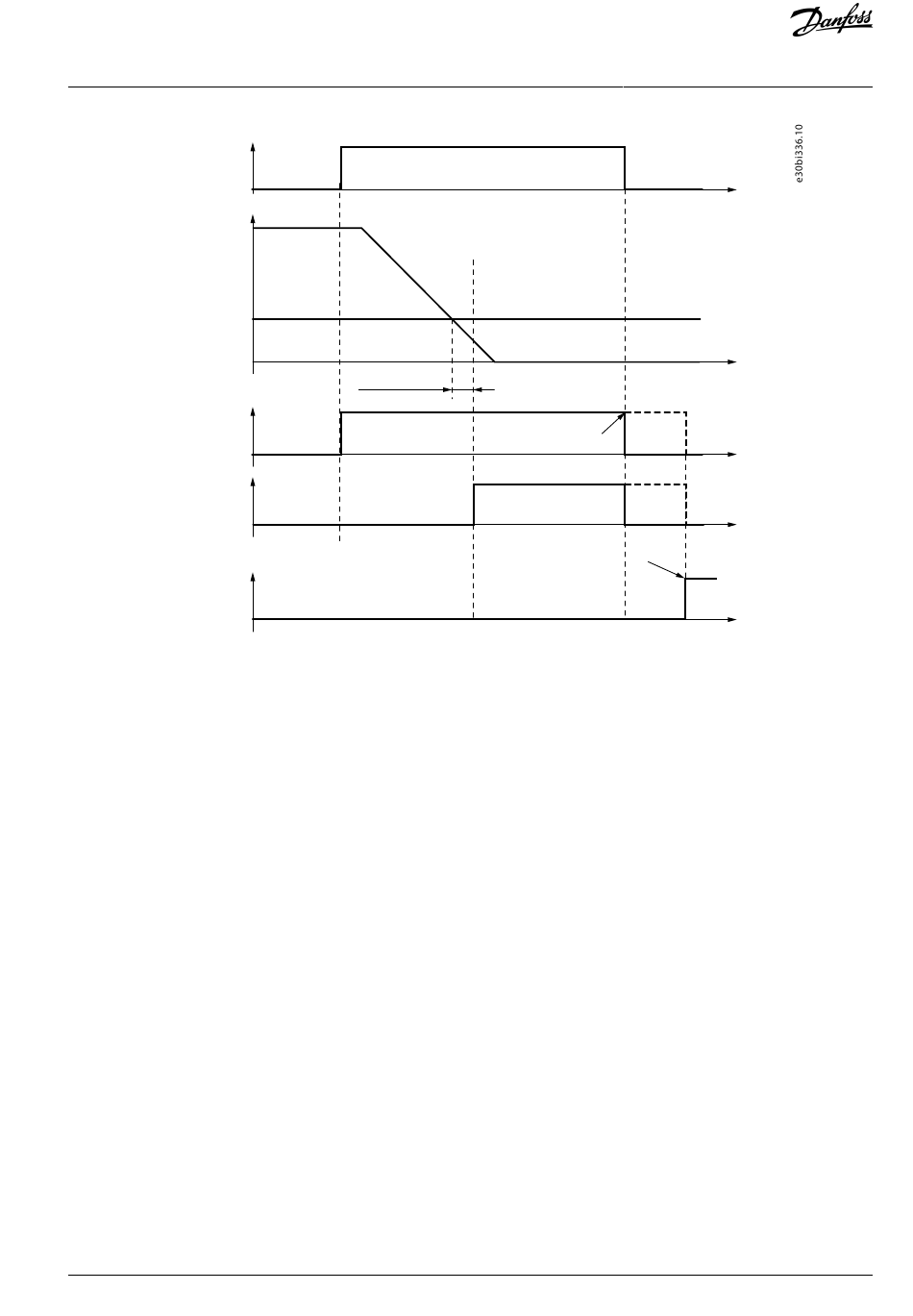

Illustration 39: The SS1 Signals in the Zero Speed Monitoring Mode
Danfoss A/S © 2021.06
SS1 td2
Automatic acknowledgement
Manual acknowledgement
Safety Functions
t
t
t
t
t
