9 Commissioning and Validation

9.1 Preparing for Commissioning

9.1.1 Preparing for Commissioning
The information in this chapter is also included in the Commissioning report.
The Commissioning report lists relevant instructions for commissioning the option board. The Commissioning report can be printed
from the VACON Safe tool with prefilled data or downloaded from the Danfoss website.
®
If it is possible, commission the AC drive first without the Advanced safety option board to make sure that your process is operation-
al.

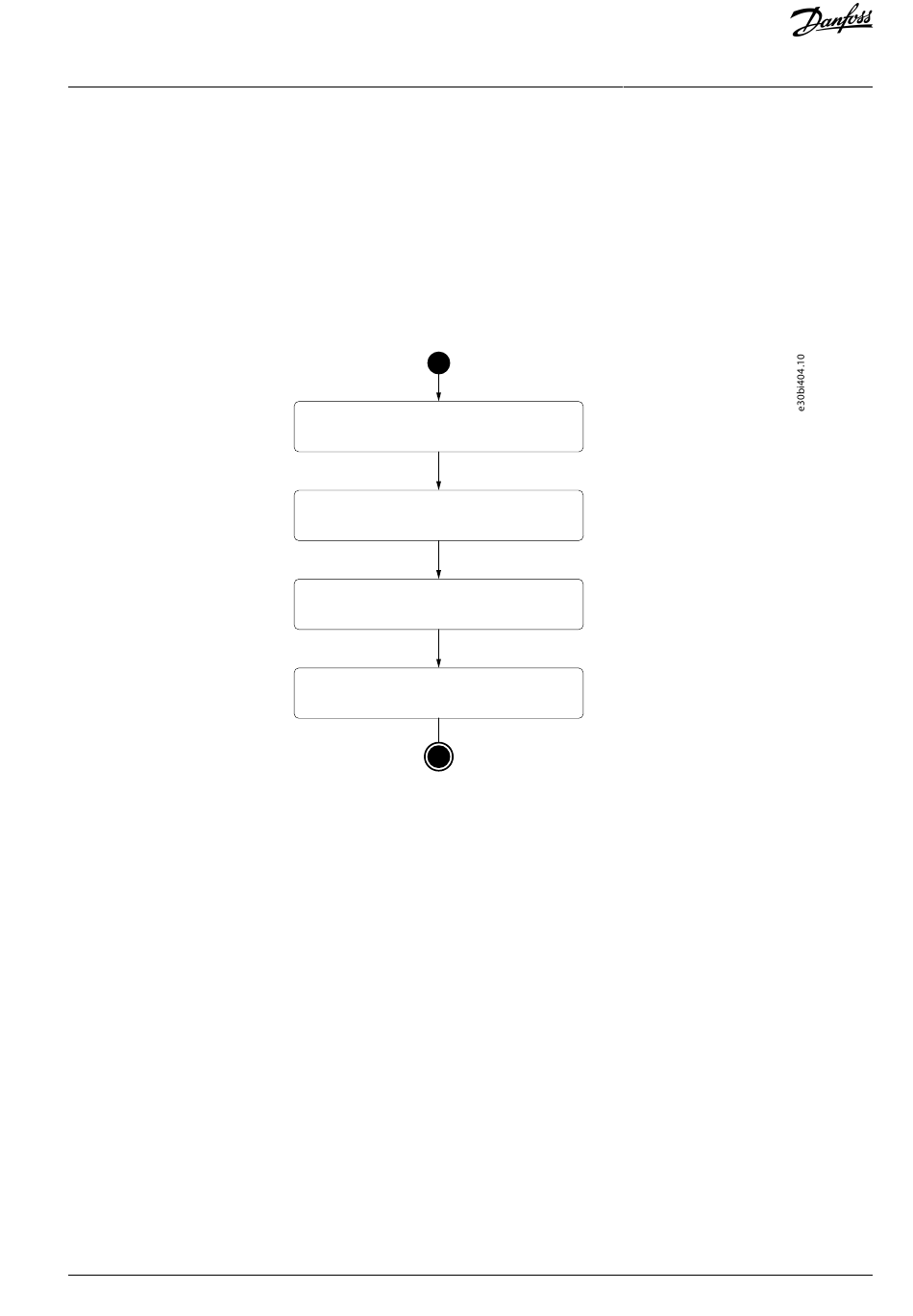

Illustration 72: Preparing and Commissioning a Safety System that Includes the Advanced Safety Option Board

9.1.2 Procedures Before the First Start-up of the System with the Option

Procedure
1.
Read carefully the warnings in chapter Safety.
2. Read the Advanced safety option board Operating Guide and the Commissioning report and apply their instructions in the
commissioning plan.
3. Read the operating guide of the AC drive.
4. Refer to the user guide of other subsystems connected to the commissioned drive system.
5. Define the parameter file for the Advanced safety option board.
6. Make sure that the hardware and configuration are correct, and that the software is correct in the components of the AC
drive and its subsystems.
7. Make sure that the information of the commissioned AC drive matches the information in the commissioning plan and the
Commissioning report.
8. Make sure that the connections between different systems have been checked and are ready to be used.
9.
Make sure that the area affected by the commissioned systems is free and secure for the commissioning.
10. Make sure that no danger can be caused to personnel if the system has been configured incorrectly and behaves unexpect-
edly.
11. Make sure that the AC drive is correctly parameterized and commissioned for use.
a. The motor parameters have been set.
b. The identification run has been done. Preferred identification type: identification with run or encoder ID run.
c. The fieldbus connection can be established. If a fieldbus is used.
