VACON® NXP Advanced Safety Options
Operating Guide
Logical level
SSR Request
Speed
SSR Max Limit
SSR Min Limit
Logical level
SSR Active
SSR Reached
SQS Active
SQS Reached
STO Active
STO Reached
SS1 Active
SS1 Reached
Reset

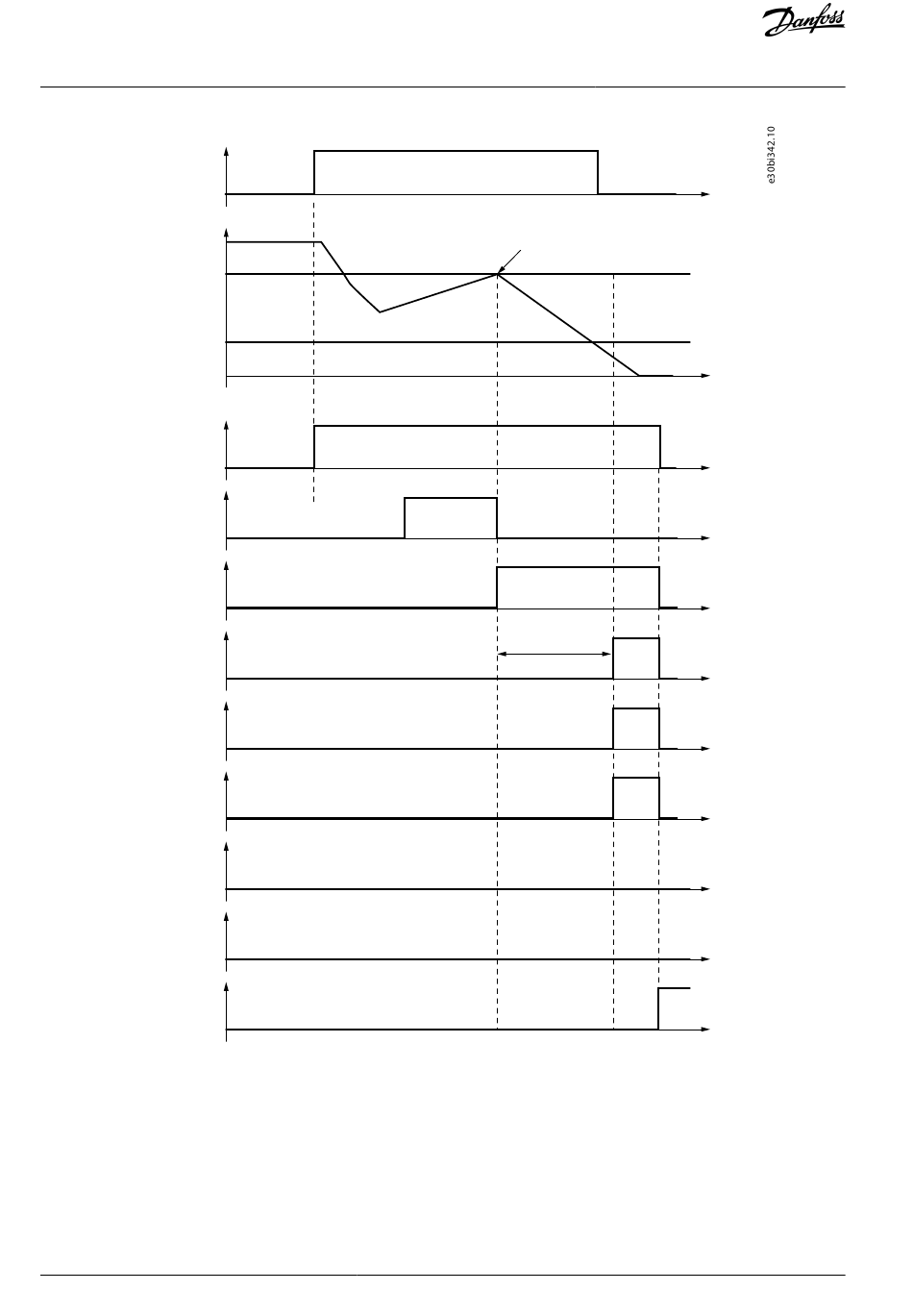

Illustration 48: The SQS-SS1 Function as a Violation Response to an SSR Speed Violation. The SQS Function Uses Time Monitoring Mode. The
SS1 Signals are not Used with the SQS-SS1 Mode.
88 | Danfoss A/S © 2021.06
Violation
SQS t1
AQ319736045637en-000101 / DPD01798
Safety Functions
t
t
t
t
t
t
t
t
t
t
t
