VACON® NXP Advanced Safety Options
Operating Guide
Logical level
STO Request
Speed
Logical level
STO Active
STO Reached
SBC Reached
Acknowledgement

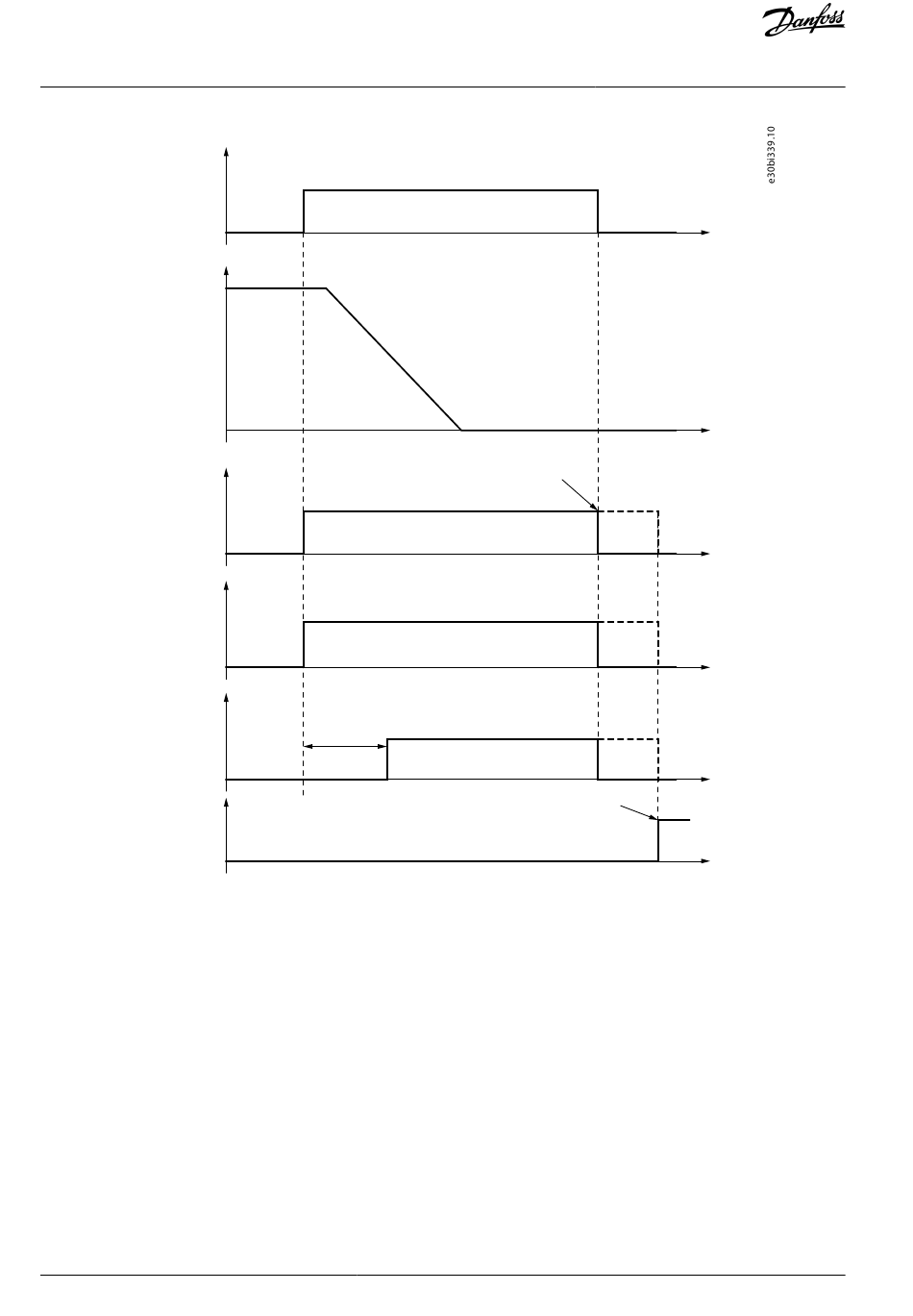

Illustration 33: The STO and SBC Signals when the SBC Function is Used, SBC Order = STO First, and the STO Function is Requested
72 | Danfoss A/S © 2021.06
Automatic acknowledgement
SBC t1
Manual acknowledgement
Safety Functions
t
t
t
t
t
t
