VACON® NXP Advanced Safety Options
Operating Guide
Table 131: Input/Output Parameters
Input/output parameters
Digital Input 1
Proximity
sensor
STO

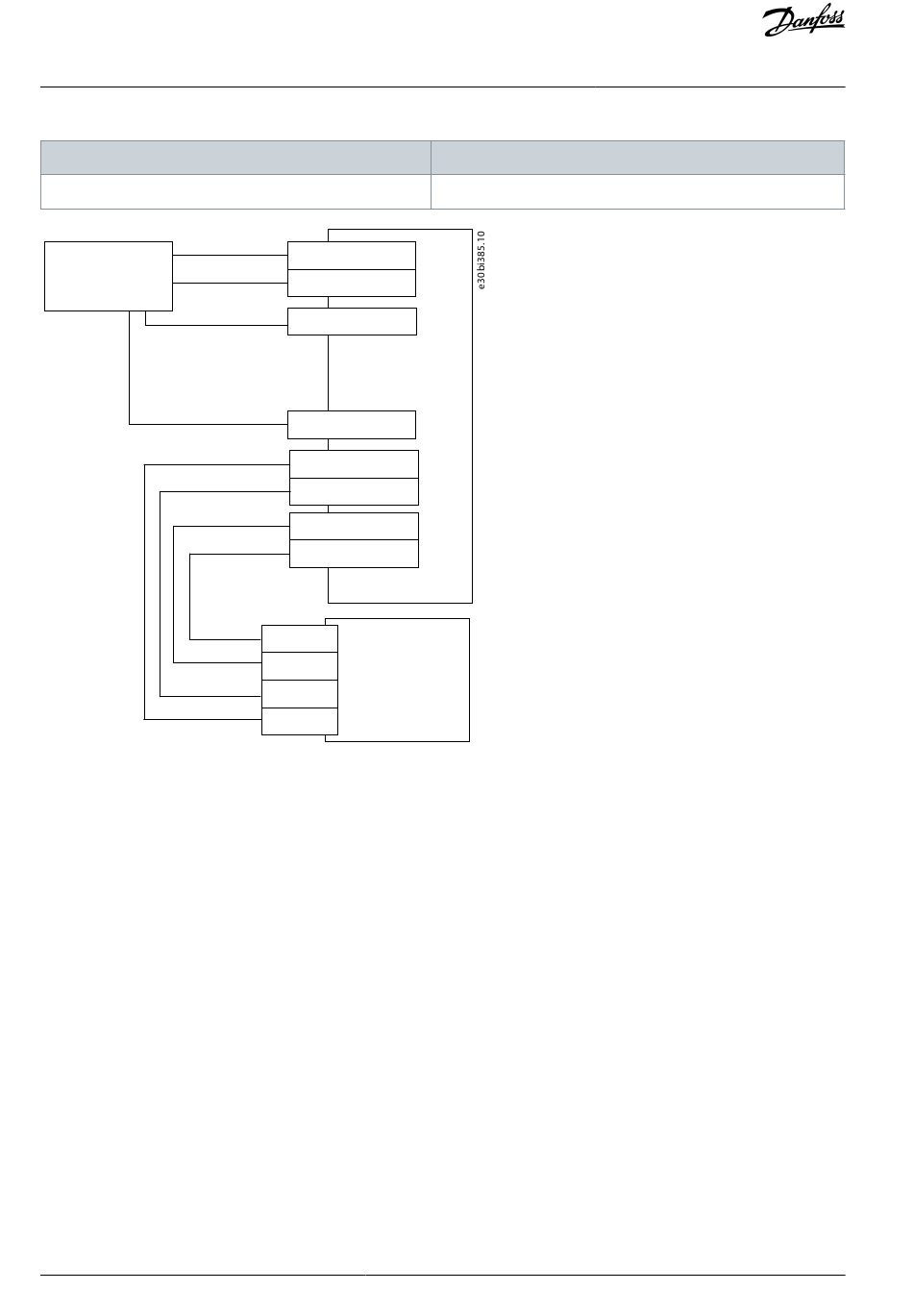

Illustration 84: Using 1 Proximity Sensor
188 | Danfoss A/S © 2021.06
X4-11 (DIN1A)
A+/A-
X4-12 (DIN1B)
X3-9 +24 V
Advanced safety
option board
X3-10 (GND)
X3-3 (GND)
X3-4 (GND)
X3-1 (STO 1)
X3-2 (STO 2)
SD2+
STO
option board
SD1+
OPTAF
SD2-
SD1-
Value
Used for a proximity sensor.
Configuration Examples
