VACON® NXP Advanced Safety Options
Operating Guide
•
Validation of the parameter file
•
Saving the verified parameter file to the option board
•
Saving a new, unverified parameter file to the option board
•
Changing the admin and service level passwords
Actions that are available without a password
•
Reading the verified parameter file from the option board
•
Online monitoring of the option board
If the passwords are forgotten, they can be reset from the control panel menu of the AC drive. This operation is not password-
protected. The controlling of password reset must be done with other means.

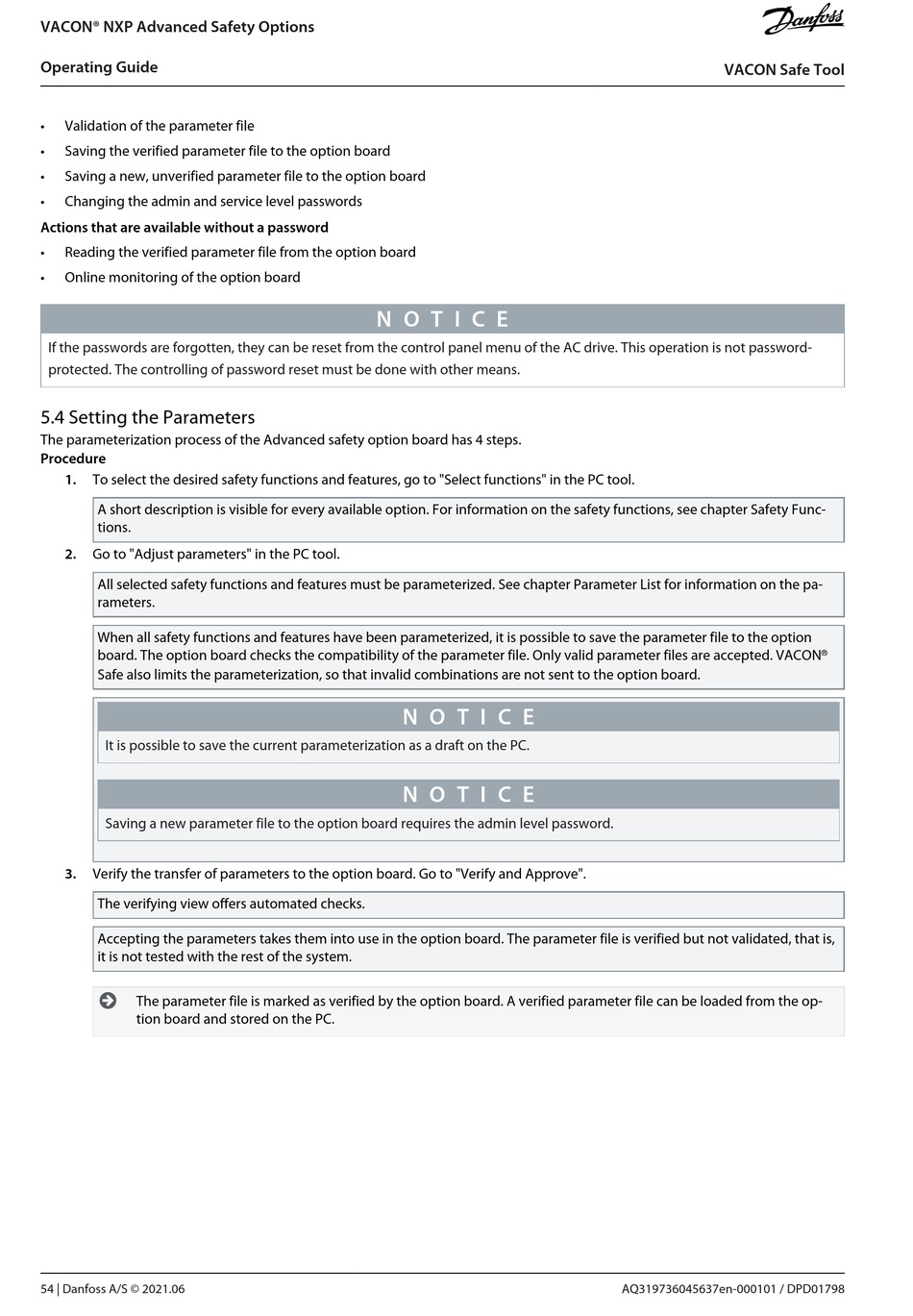

5.4 Setting the Parameters
The parameterization process of the Advanced safety option board has 4 steps.
Procedure
1.
To select the desired safety functions and features, go to "Select functions" in the PC tool.
A short description is visible for every available option. For information on the safety functions, see chapter Safety Func-
tions.
2.
Go to "Adjust parameters" in the PC tool.
All selected safety functions and features must be parameterized. See chapter Parameter List for information on the pa-
rameters.
When all safety functions and features have been parameterized, it is possible to save the parameter file to the option
board. The option board checks the compatibility of the parameter file. Only valid parameter files are accepted. VACON
Safe also limits the parameterization, so that invalid combinations are not sent to the option board.
It is possible to save the current parameterization as a draft on the PC.
Saving a new parameter file to the option board requires the admin level password.
3.
Verify the transfer of parameters to the option board. Go to "Verify and Approve".
The verifying view offers automated checks.
Accepting the parameters takes them into use in the option board. The parameter file is verified but not validated, that is,
it is not tested with the rest of the system.
The parameter file is marked as verified by the option board. A verified parameter file can be loaded from the op-
tion board and stored on the PC.
54 | Danfoss A/S © 2021.06
N O T I C E
N O T I C E
N O T I C E
VACON Safe Tool
AQ319736045637en-000101 / DPD01798
®
