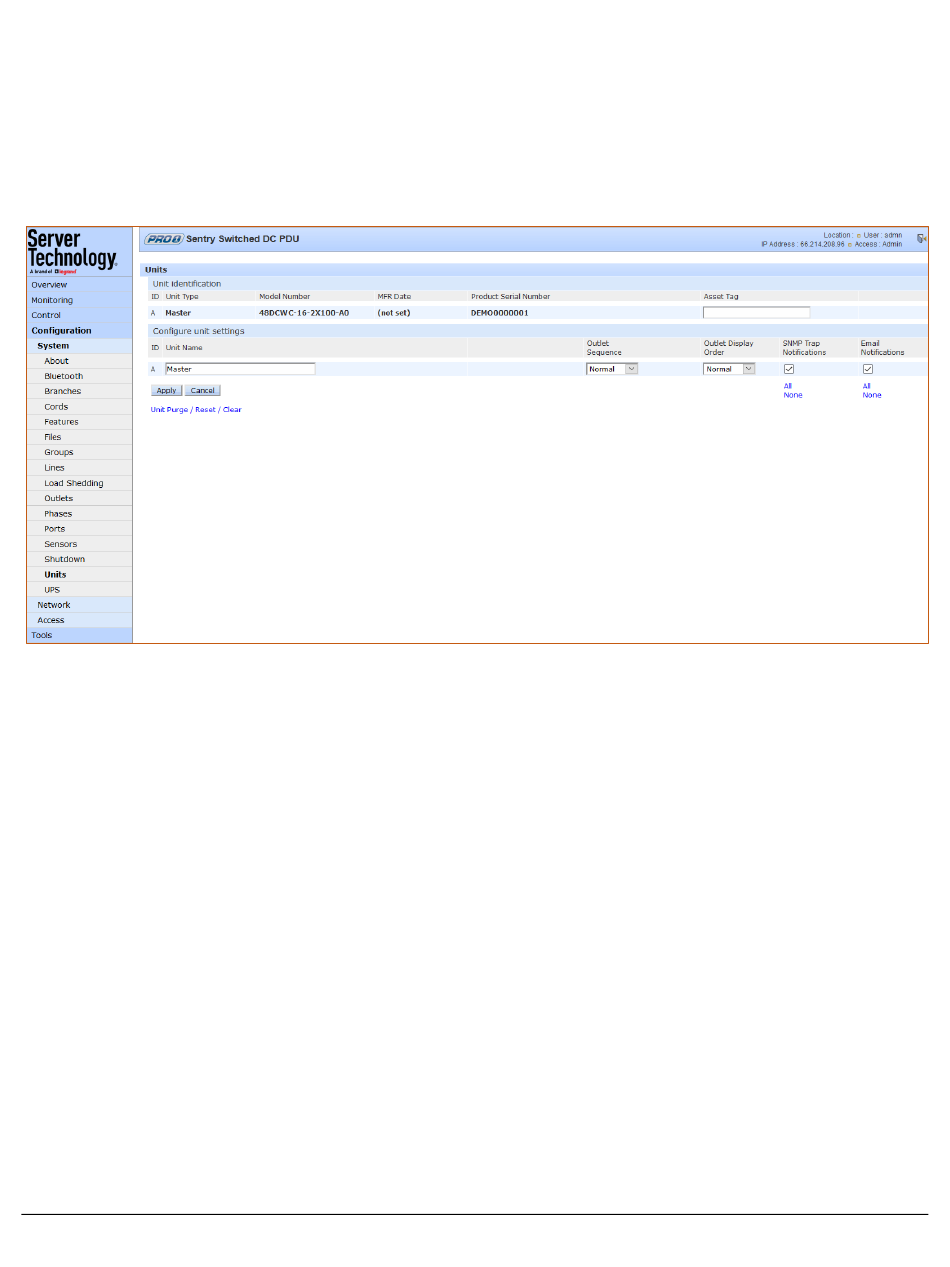

Configuration > System > Units
The Units page sets a descriptive system name for each PDU, configures asset management identification,
determines outlet sequence, sets the display orientation of the mounted unit, and sets the Web GUI and CLI
display order of the outlets. The page also sets SNMP Trap and Email notifications for unit events.
The Purge and Restore link on the Units page displays another page to allow the clearing of current values in non-
volatile (NV) memory from individual units, and the resetting of those values back to factory defaults.
To configure the PDU:
1. (Optional) Provide an asset tag identification for listed master and/or link units, and check the Identity
checkbox.
2. In the Unit Name field, provide a descriptive text name for the unit, from 0-32 characters. The ID is a
system-assigned internal name and cannot be changed.
3. For Switched products, the PDU allows configuration of the power-on sequence of the outlets with the
following available options. From the Outlet Sequence drop-down menu, select an option:
•
Normal: (Default) Powers on outlets in ascending numeric order by outlet number, for example,
from outlet 1-8.
•
Reversed: Powers on outlets in descending order by outlet number; such as, from outlet 8-1.
4. For Switched products, from the Outlet Display Order drop-down menu, select an option to set the Web
GUI or CLI outlet display order for the selected unit. Any attempt to change this setting on a device that
does not have sequential switched outlets will be ignored:
•
Normal: (Default) Displays outlets in ascending numeric order by outlet number, for example,
from outlet 1-8.
•
Reversed: Displays outlets in descending order by outlet number; for example, from outlet 8-1. The
Reversed option is useful when the PDU is mounted with inverted orientation and the last outlet (in
this example, outlet 8) is in the first position.
