Control (Managing Outlets)
The Control section has two functional areas:
Outlets: Allows the issuing of outlet control actions On, Off, and Reboot for individual outlets in a single
master unit (or in all units), or issuing control actions for all outlets globally in a single master unit (or in all
units). Outlet operational details for monitoring are the socket type/adapter, branch/phase ID, and
current/power capacity, and outlet status/current.
Groups: Allows the issuing of outlet control actions On, Off, and Reboot for outlets in a user-named outlet
group for efficient control of multiple outlets.
Control > Outlets

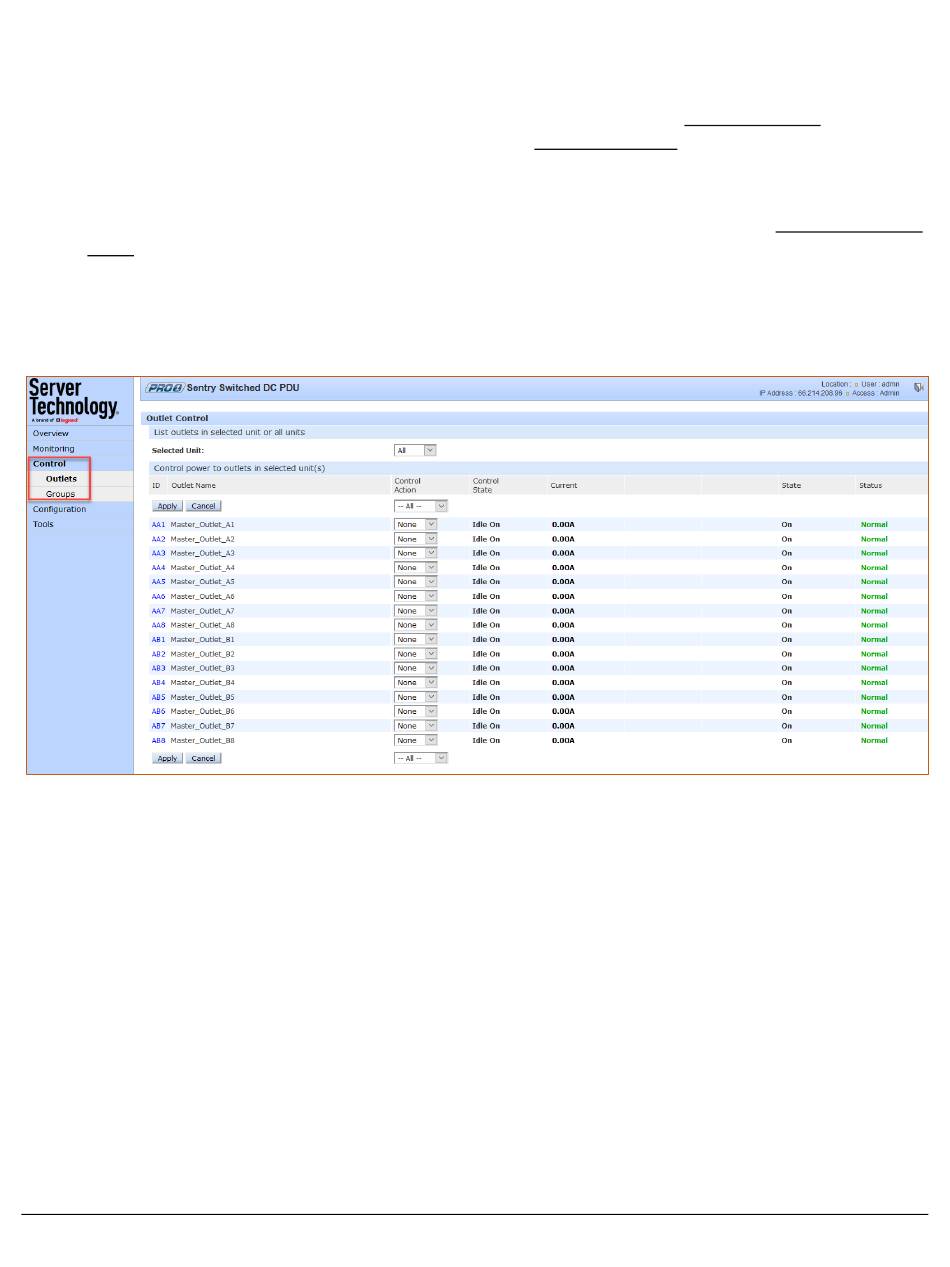

The Outlet Control page displays outlets assigned to the current user:
What to look for:
Provides viewing of outlet current, power, power factor, current control state applied to the PDU,
and status information.
Includes an ID link for viewing detailed operational data about the outlet.
Allows the issuing of outlet power control actions (On, Off, Reboot) on individual outlets or on all outlets
globally, in a master unit or in all units.
PRO1 Sentry Switched DC PDU
64 of 211
