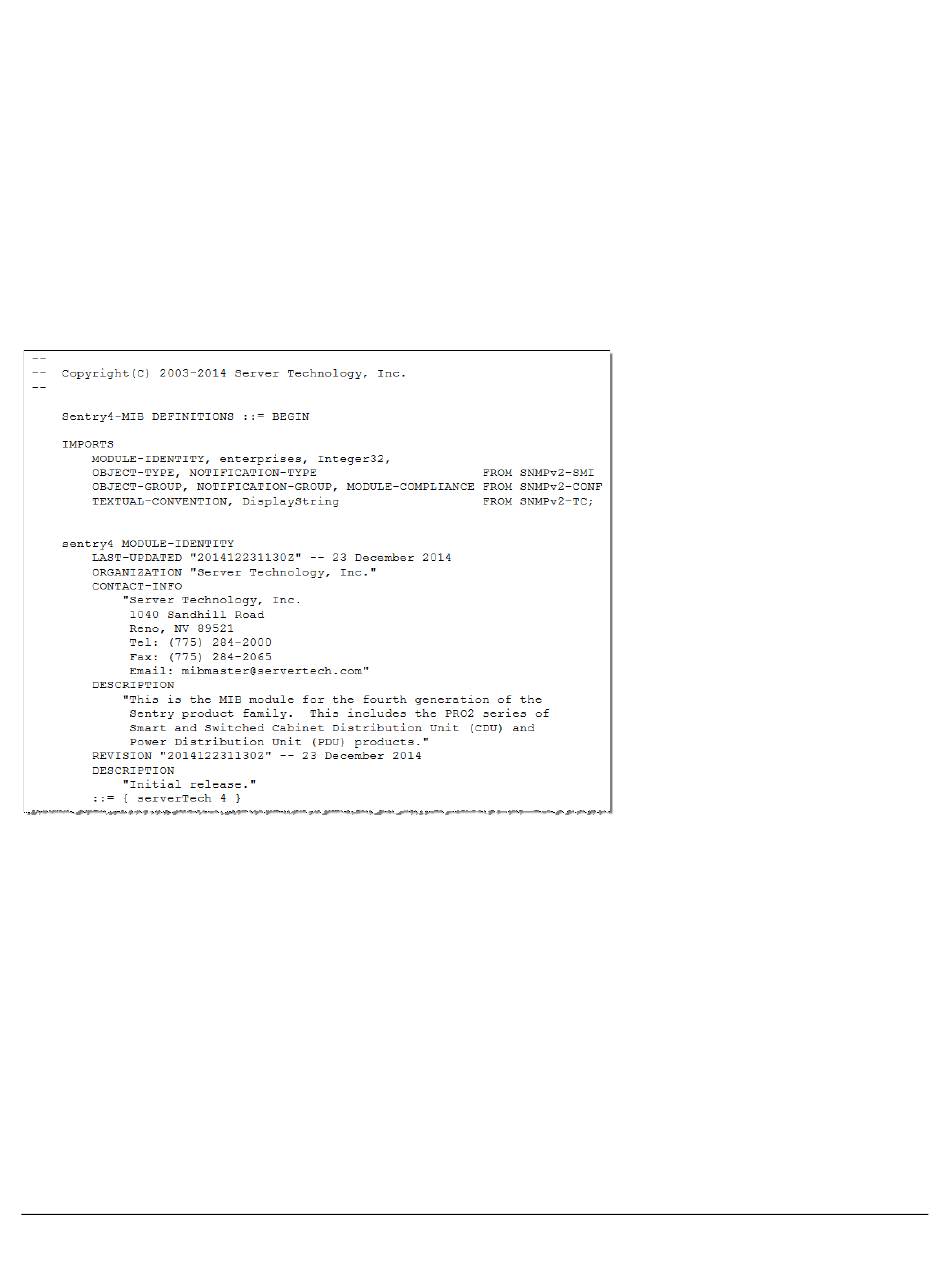

sentry4.mib
For SNMP network monitoring, values from the PDU are reported using the new Sentry4-MIB. (Note that earlier
PDU products continue to use the current Sentry3-MIB). The new Sentry4-MIB and its new OID tree are designed
exclusively for PRO1/PRO2 products, including the PRO1 Sentry Switched DC PDU.
Reported MIB objects in the Sentry4-MIB are identified with a new "st4" prefix as part of the object name. You
may be familiar with MIB objects for the PDU, for example, outletWakeupState. However, when the SNMP
monitoring system displays a value for the MIB object name, st4outletWakeupState, based on the "st4" prefix in
the name, you will recognize that the reported value is coming from a PRO1/PRO2 unit (or PRO1 DC unit), not
from an earlier PDU product.
The Sentry4-MIB and OID tree for the PDU can be accessed on-board in the GUI via Configuration > System >
Files, or accessed by using the Server Technology FTP site the same way as with the Sentry3-MIB and OID tree for
the earlier PDU products.
