Monitoring (Analyzing Metrics)
The Monitoring section of the Web interface provides viewing of dynamically updated metrics for the PDU
operational areas that have the highest power impact on the unit and the data center.
The design of the GUI monitoring pages follows the major areas in the hardware architecture of the PDU,
providing a separate and detailed page for the overall status of units, cords, lines, branches, outlets, groups, and
sensors.
Each system object for which a threshold can be configured – such as line current and phase voltage – has a
corresponding monitor page that displays up-to-the-minute power metrics.
Many metrics are presented on the pages in color-coded graphs for at-a-glance monitoring. A regular full-page
refresh dynamically updates theses details to reflect the current condition of the PDU, providing the opportunity
for instant assessment and fast response to critical system issues.
Monitoring > Units

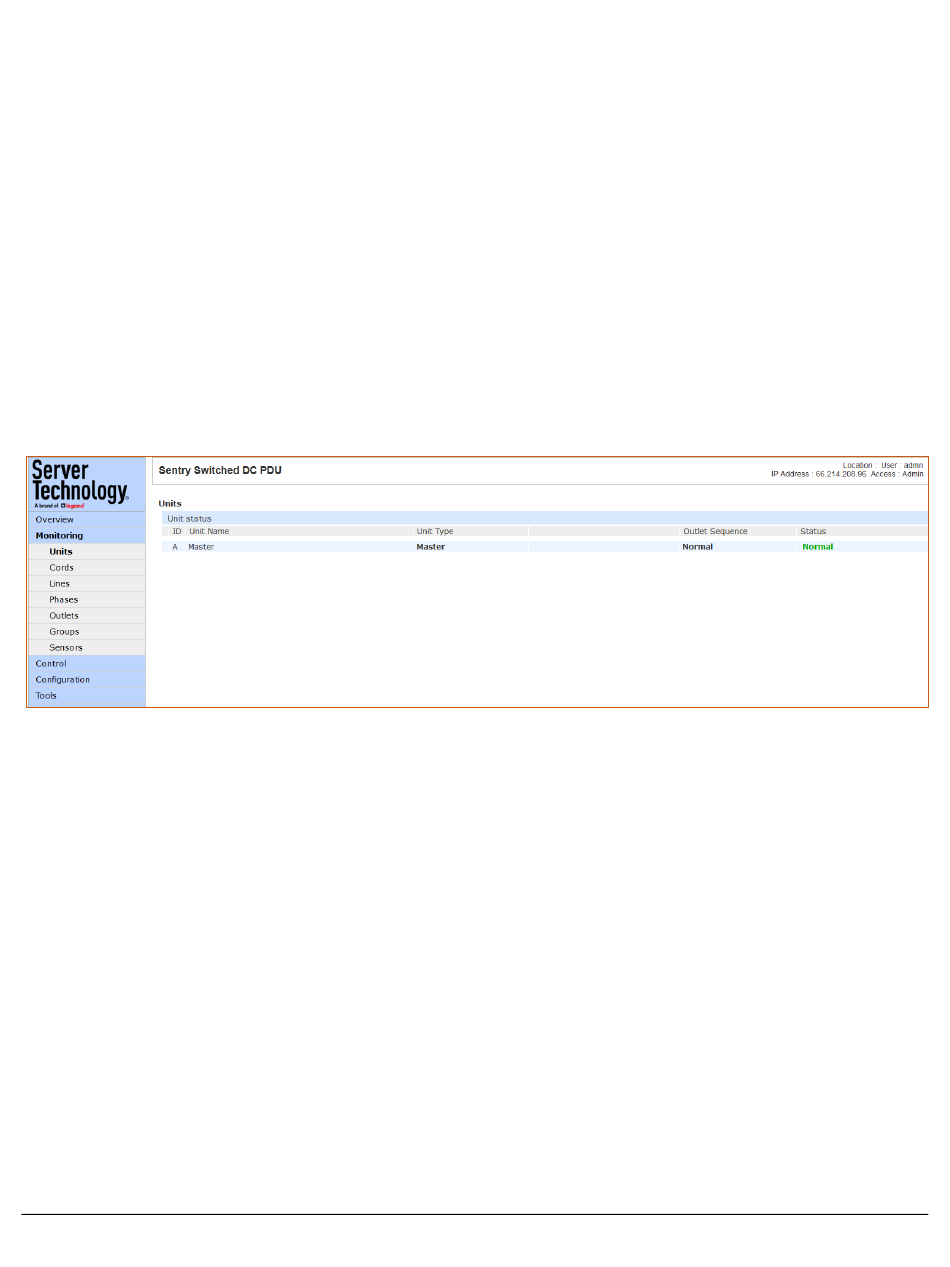

The Units page is a high-level quick reference for the PDUs units in the network, identifying the connected
master/link units (and any connected external monitoring devices), and the operational status of the PDU.
What to look for:
The operating status of all units (master and link) should be Normal (green). The Status field reports the overall
health of the units and their connectivity, not an exceeded user-defined threshold. Depending on a yellow or red
status message, basic troubleshooting will be needed to determine the best solution for the affected unit.
