Quick Tour of the GUI
Note: The GUI images shown in this manual were taken from a PRO1 Sentry Switched DC PDU. Some documented
functionalities may not apply to the DC PDU you have.
The web interface provides web-based access to the firmware for the Switched unit. The interface is designed
with three major screen sections shown in the following screen example:
1. System Header: Displays the PDU's description/location, IP address, and user/access level.
2. Navigation Bar: Provides access to the PDU's power monitoring, control actions, and configuration.
3. Details Window: Shows control/status information based on option selected in navigation bar.

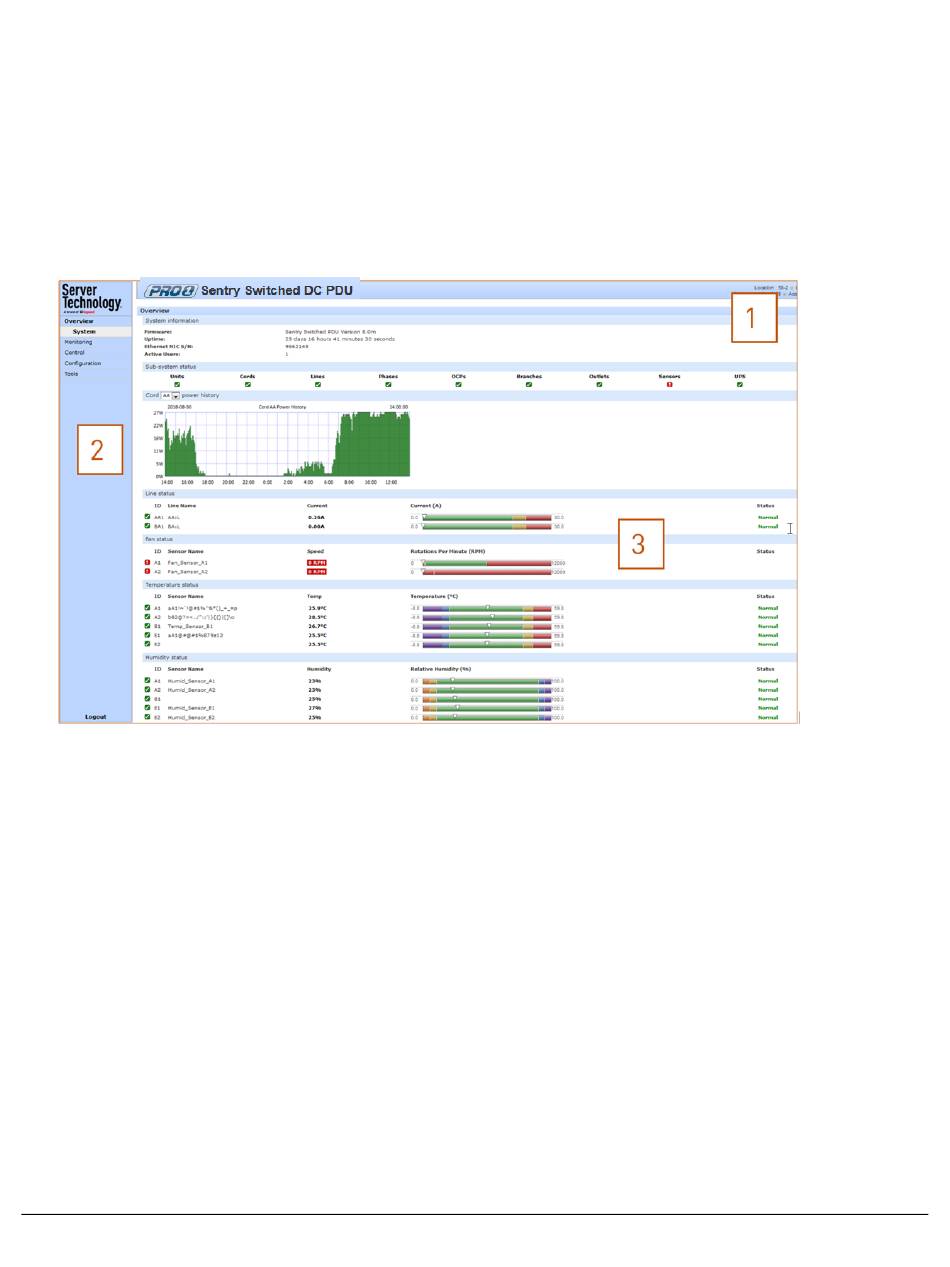

Example of Firmware Web Interface: Overview > System Page
Note that the optional blinking location string (IP address) in the System Header may not work
with all web browsers.
