Qadvanced Roller Shade
ZigBee HA1.2
Programming Instructions
These instructions are for building a simple-Stand alone network, where no Qube or other control Gateway is used.
Read and understand each section before performing required steps
Refer to appropriate user manual whenever a QMotion Gateway/Router is NOT used to establish the ZigBee network.
Instructions for allowing Routers and End Devices to join the ZigBee HA1.2 network will vary by manufacturer.
CREATE A NEW NETWORK (Range Extender)
1. POWER the RANGE EXTENDER using the provided
__power supply (Should be centrally located to shades)
2. PRESS and HOLD the NETWORK button until the
__GREEN LED illuminates (Green LED illumination
__indicates the network is active)
ADD REMOTE TO NETWORK
1. PRESS and RELEASE the NETWORK button on the
__RANGE EXTENDER
__(Red LED will pulsate on network coordinator/routers )
2. PULL BATTERY TAB from Remote
3. Use a paperclip to PRESS the PROGRAM button on
__back of the remote
(The channel LEDs will scroll back and forth when in
__program mode)
4. PRESS ANY BUTTON on the remote to join network
__(Green LED will flash when remote joins the network)
ADD SHADE TO NETWORK
1. PRESS and RELEASE the NETWORK button on the
__RANGE EXTENDER
__(Red LED will pulsate on network coordinator/routers )
2. TUG the HEMBAR 6-10 inches
__(Shade will JOG in response)
PAIR REMOTE TO SHADE
1. PRESS and RELEASE the CHANNEL button to select
__the channel that will control the shade
2. PRESS the PROGRAM button on the back of the remote
3. PRESS and RELEASE the UP button
__(Shade will JOG in response)
4. TUG the HEMBAR 6-10 inches
__(During Step 3, multiple shades can be tugged to learn
the same remote)
IMPORTANT

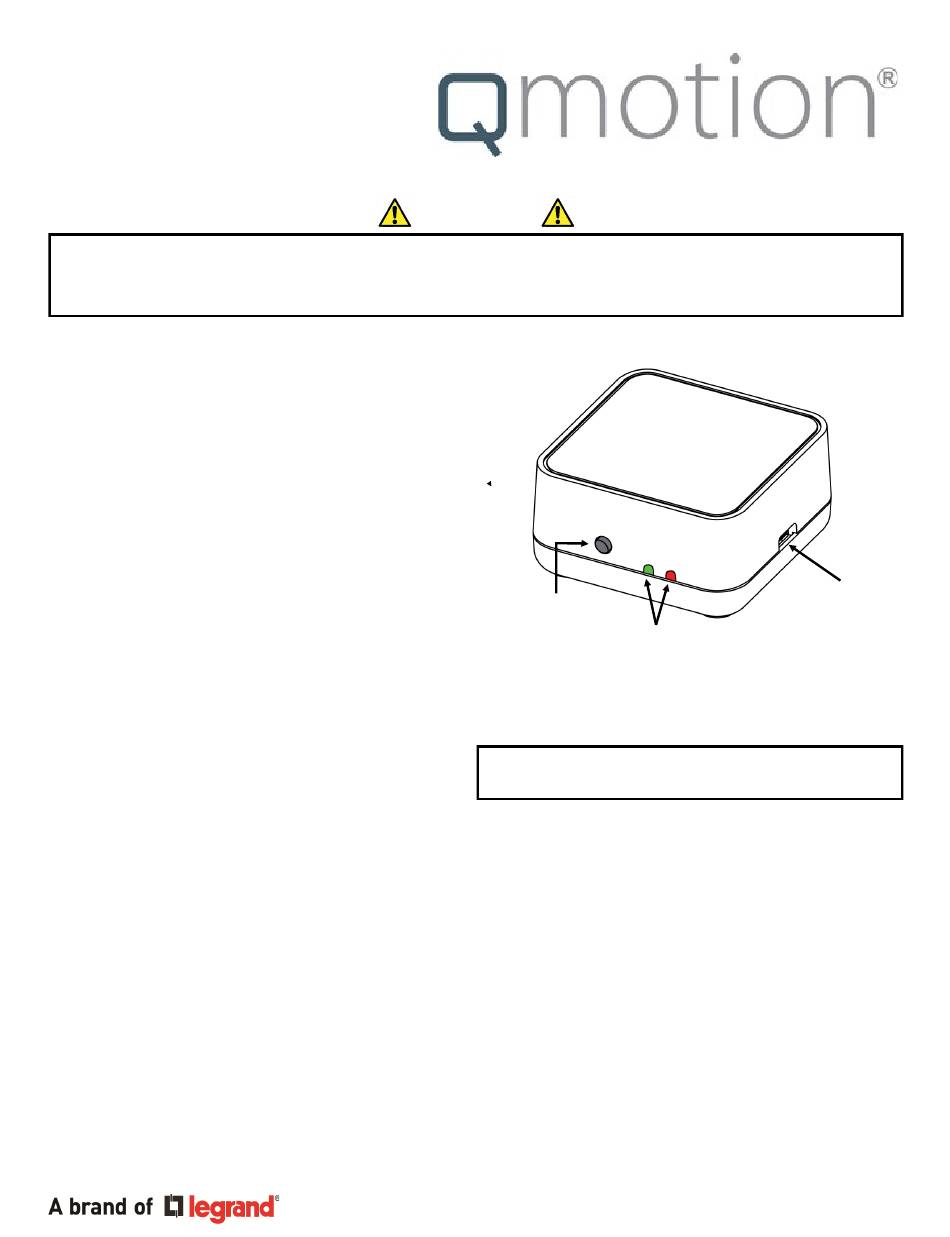

Network
Button
Range Extender: Green LED will flash rapidly for 1 sec-
ond when a device (Shade/Remote) joins the network
ADD RANGE EXTENDER TO ZIGBEE NETWORK
1. PRESS and RELEASE the NETWORK button on the first
__Range Extender that created the ZigBee network
__(The green LED will be a solid illumination, the red LED will
___begin to pulse when the network is open for joining)
2. PRESS and RELEASE the NETWORK button on Range
__Extender to be added to the network
__(The green LED will illuminate and blink when it has joined
___the ZigBee network )
3. The Range Extender green LED will continue to pulse,
__
__showing that it has extended the ZigBee network.
DELETE RANGE EXTENDER FROM ZIGBEE NETWORK
1. PRESS and RELEASE the NETWORK button 3 times
__quickly
__(The green LED will stop illuminating)
www.qmotionshades.com
LED
Range Extender
ZigBee Router
Pensacola FL, 32514
1 -877-849-6070
Micro USB
Port
1
PN 9000225
