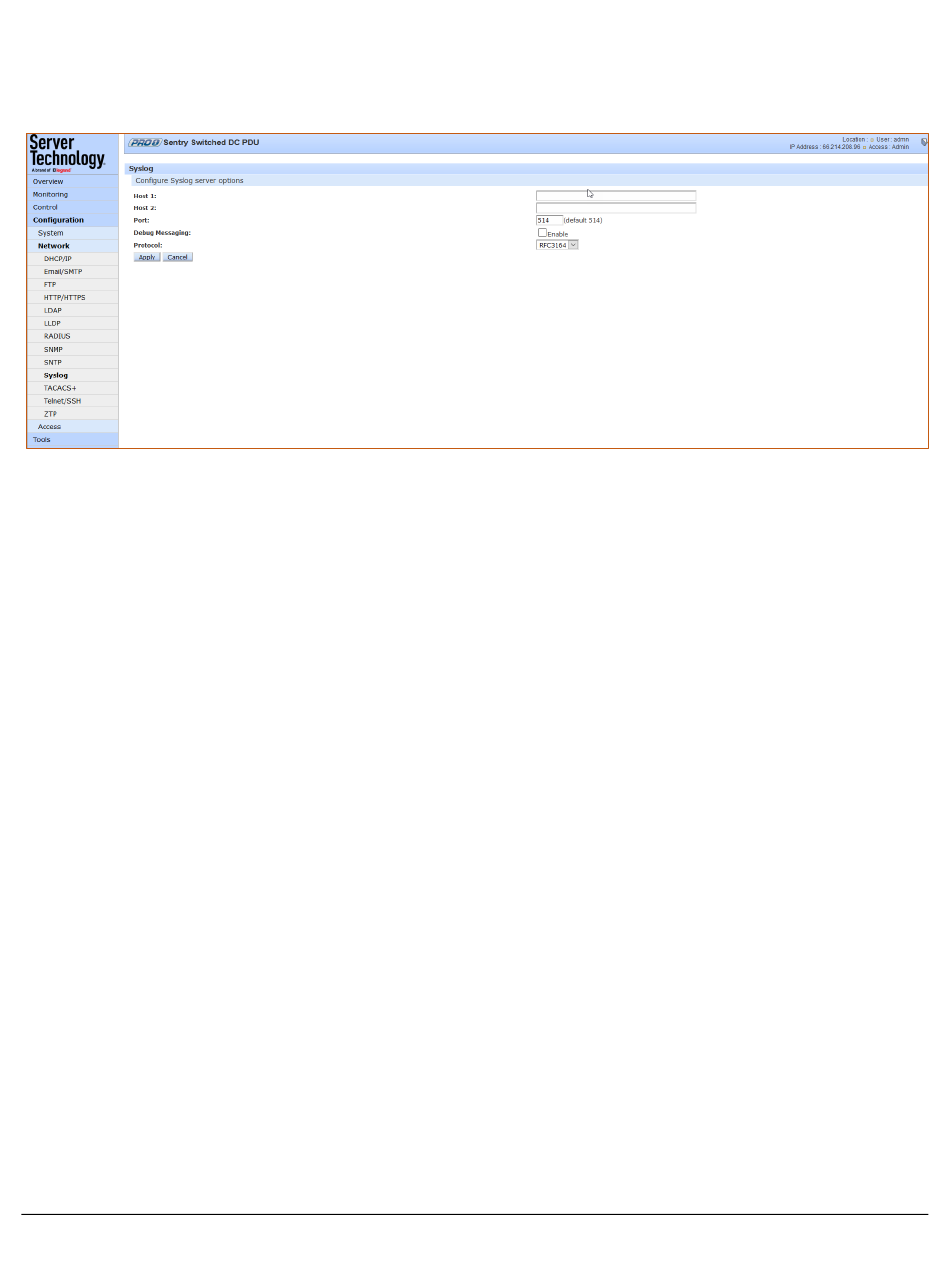

Network > Syslog
The Syslog page supports RFC3164 and RFC5424 compliance and the configuration for standard message logging
to enable offline storage and viewing of firmware log messages and system events.
To configure the Syslog server:
1. Host 1/Host2: Set the Syslog server address by typing the hostname/IP address in the Host1 and/or Host2
field(s). Both IPv4 and IPv6 IP address formats are allowed.
2. Port: When Syslog support is enabled, the Syslog server responds to requests on the default Syslog port
number 514 as displayed on the page. If necessary, edit the port number.
3. Debug Messaging: To enable debug messaging in the Syslog debug log, check the Enable box.
4. Protocol: From the drop-down menu, select the RFC protocol that determines behavior of the Syslog
server and message transmission
5. Click Apply.
