Overview (Viewing the System Dashboard)

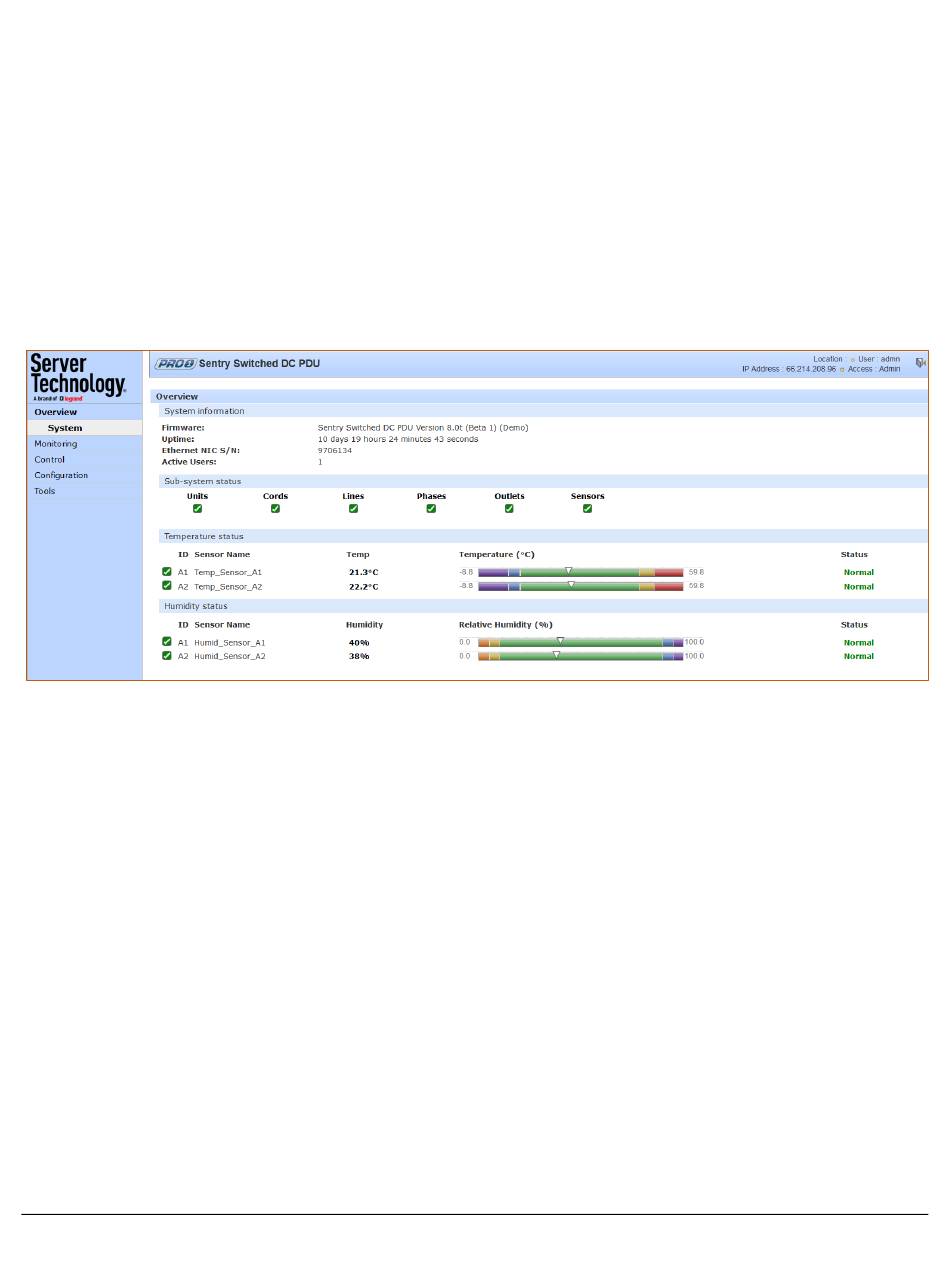

The System page of the Web interface is the first stop for high-level and fast monitoring of major PRO1
operational areas. The page displays a quick view of color-coded icons showing current status of the units, cords,
branches, lines, phases, sensors. Click an icon for the related monitoring page to view the metrics behind the
status.
The System page also shows color-coded graphs for the operational status of line current and
temperature/humidity sensor readings.
General system information displays on the page to firmware version in use, uptime data, Ethernet NIC serial
number, and current number of active users.
The System page dynamically updates status and threshold values with a full-screen refresh to reflect the latest
PDU details for instant assessment and response.
How to Read the Metrics
The color-coded status icons and graphs on the System page update dynamically (normal-green, warning-yellow,
critical-red) with the latest metrics of the unit, line status, and temperature/humidity sensor status.
About Auto-Scaling
The displayed graphs reflect the internal function of auto-scaling. This means that if the threshold range of values
changes for the graph, the graph will auto-scale to the appropriate range, allowing the graphs to still present
relevant and consistent information.
