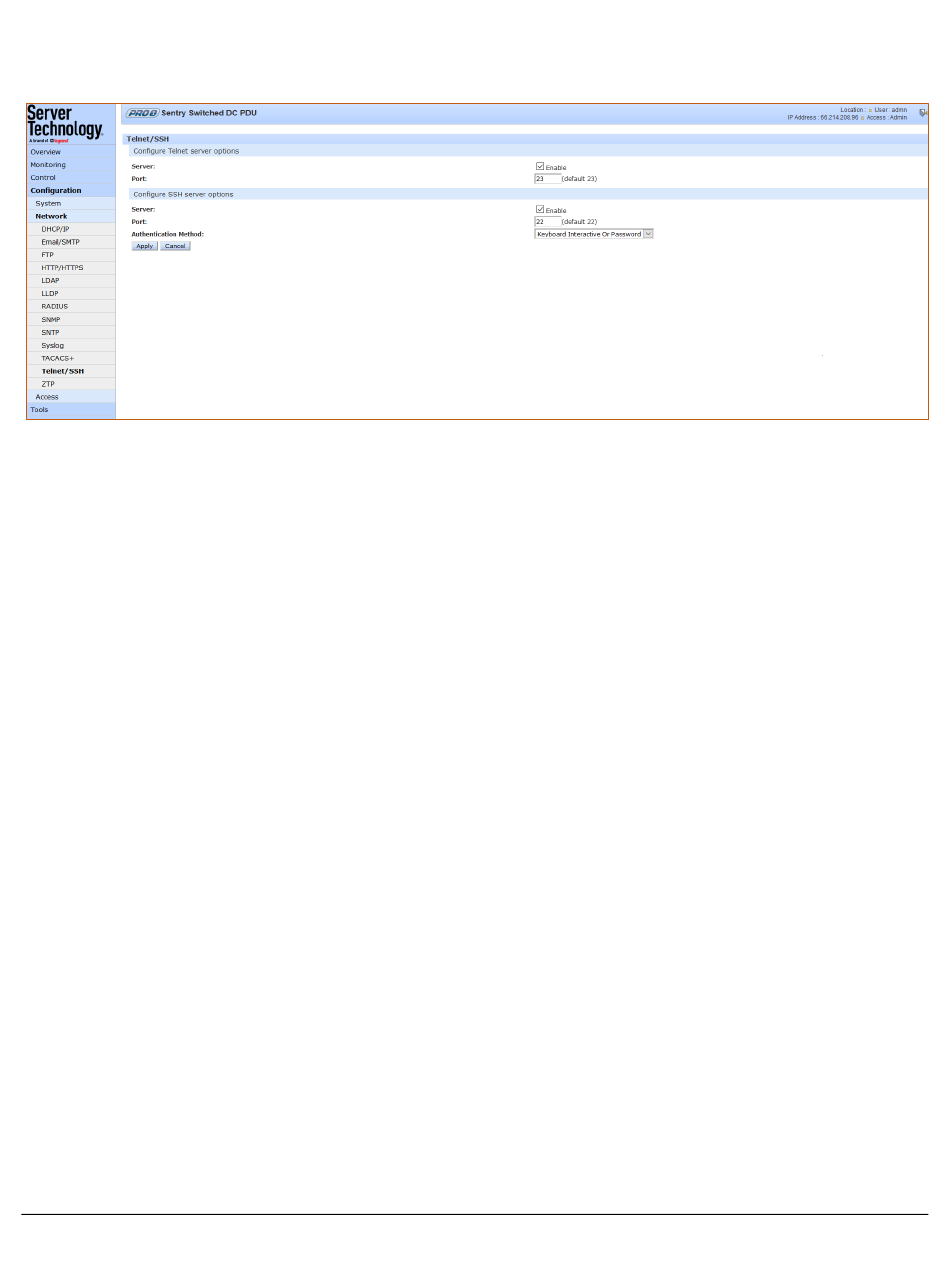

Network > Telnet/SSH
The Telnet/SSH page provides server, port, and authentication options for support of Telnet and SSH.
To configure the Telnet server and/or SSH server:
1. Server: Check (or uncheck) the Enable checkbox to enable/disable support for Telnet and/or SSH.
2. Port: Type a custom port number or accept the default port number 23 (for Telnet) or the default port
number 22 (for SSH), as displayed on the page.
3. For SSH only – Authentication Method: The SSH server supports the following authentication methods.
•
Keyboard Interactive: The SSH server controls an information field followed by one or more prompts
requesting credential information from the SSH client. The client gathers credential information
typed by the user and sends it back to the server. The Keyboard Interactive method is controlled by
the SSH server.
•
Password: The SSH client gathers username/password credentials and makes the authentication
request to the SSH server with the credentials. The Password method is controlled by the SSH client.
•
Keyboard Interactive or Password: (Default). Allows either method.
4. From the drop-down menu, select one of the security methods described above, or accept the default, as
displayed
5. Click Apply.
Telnet/SSH Concurrent Sessions:
•
For Telnet: 4 concurrent sessions allowed; also allowed are 4 Telnet and 4 SSH sessions simultaneously.
•
For SSH: 4 concurrent sessions allowed; also allowed are 4 SSH and 4 Telnet sessions simultaneously.
PRO1 Sentry Switched DC PDU
118 of 211
