Monitoring > Sensors

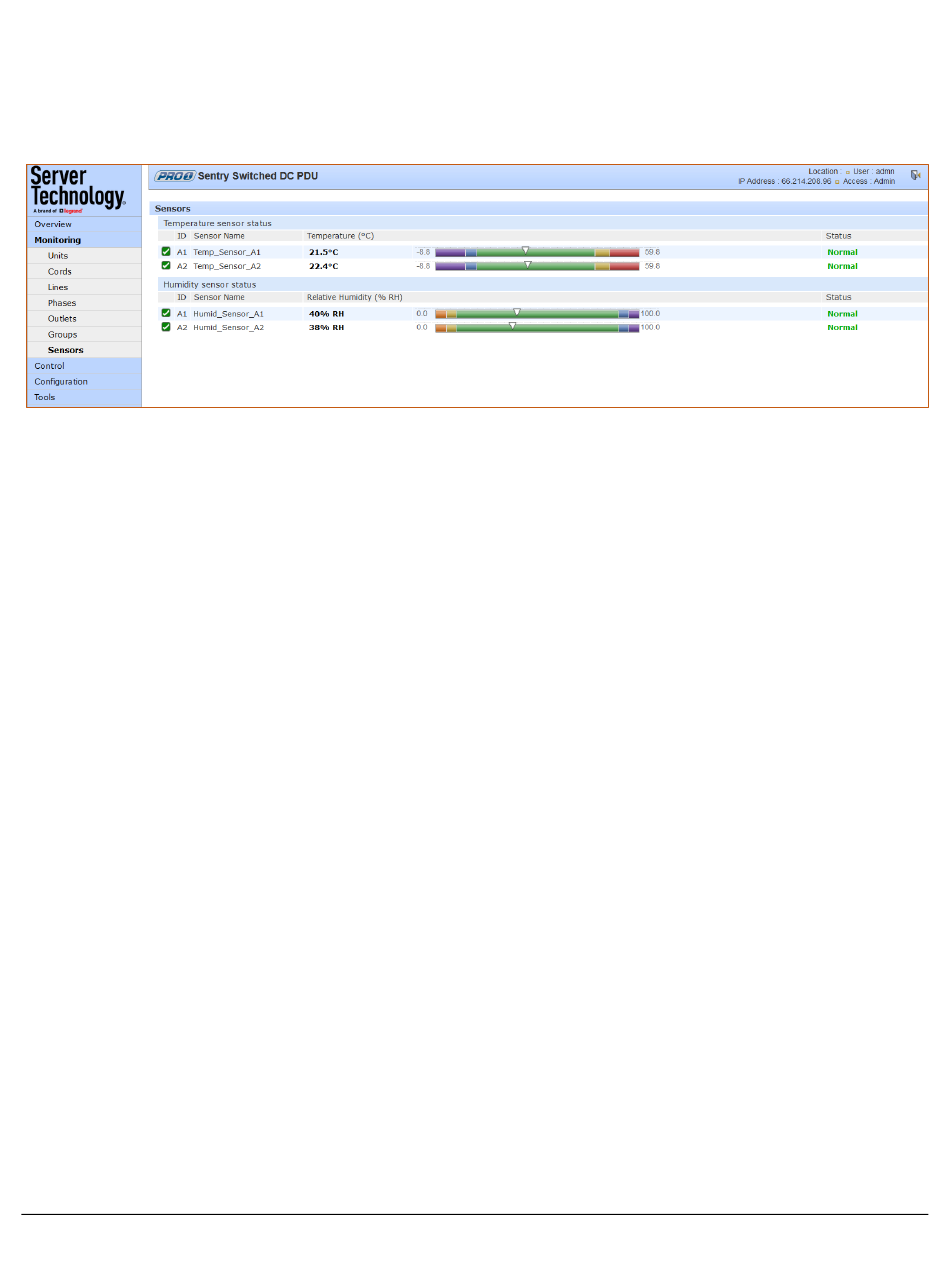

The Sensors page provides a quick view and color-coded graphic showing the current temperature/humility
operating values of environmental sensors.
Note: If a fan is present on the PDU, the fan can also be monitored on this page.
What to look for:
The operating status of all sensors (and fan, if present) should be Normal, and operating temperature or relative
humidity should be within defined thresholds.
Temperature Status
The Temperature graph displays a blinking warning or critical error whenever temperature exceeds low or high
threshold. The PDU continues to display the status until the condition changes or the issue has been resolved.
Temperature graph colors:
•
Violet = coldest; low alarm (threshold configured by user)
•
Blue = cold; low warning (threshold configured by user)
•
Green = acceptable temperature range
•
Yellow – warm; high warning (threshold configured by user)
•
Red = hot; high alarm (threshold configured by user)
The default range of low/high temperature threshold values is
user-defined at Configuration > System > Sensors.
-40 to 123(C°)
PRO1 Sentry Switched DC PDU
61 of 211
. Temperature threshold values are
