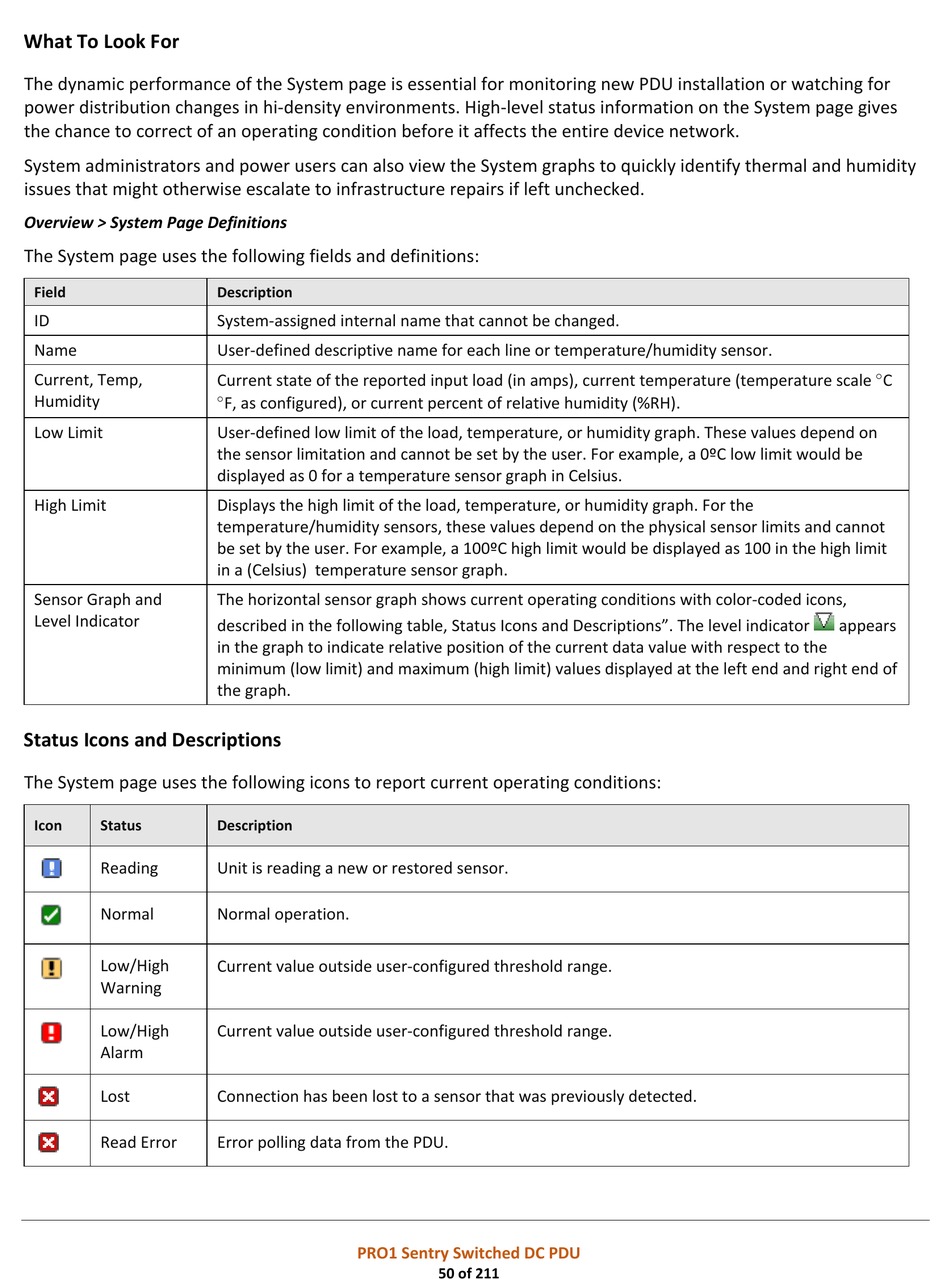

LEGRAND Server Technology PRO1 User Manual page 50

What To Look For
The dynamic performance of the System page is essential for monitoring new PDU installation or watching for
power distribution changes in hi-density environments. High-level status information on the System page gives
the chance to correct of an operating condition before it affects the entire device network.
System administrators and power users can also view the System graphs to quickly identify thermal and humidity
issues that might otherwise escalate to infrastructure repairs if left unchecked.
Overview > System Page Definitions
The System page uses the following fields and definitions:
Field
ID
Name
Current, Temp,
Humidity
Low Limit
High Limit
Sensor Graph and
Level Indicator
Status Icons and Descriptions
The System page uses the following icons to report current operating conditions:
Icon Status
Reading
Normal
Low/High
Warning
Low/High
Alarm
Lost
Read Error
Description
System-assigned internal name that cannot be changed.
User-defined descriptive name for each line or temperature/humidity sensor.
Current state of the reported input load (in amps), current temperature (temperature scale C
F, as configured), or current percent of relative humidity (%RH).
User-defined low limit of the load, temperature, or humidity graph. These values depend on
the sensor limitation and cannot be set by the user. For example, a 0ºC low limit would be
displayed as 0 for a temperature sensor graph in Celsius.
Displays the high limit of the load, temperature, or humidity graph. For the
temperature/humidity sensors, these values depend on the physical sensor limits and cannot
be set by the user. For example, a 100ºC high limit would be displayed as 100 in the high limit
in a (Celsius) temperature sensor graph.
The horizontal sensor graph shows current operating conditions with color-coded icons,
described in the following table, Status Icons and Descriptions". The level indicator
in the graph to indicate relative position of the current data value with respect to the
minimum (low limit) and maximum (high limit) values displayed at the left end and right end of
the graph.
Description
Unit is reading a new or restored sensor.
Normal operation.
Current value outside user-configured threshold range.
Current value outside user-configured threshold range.
Connection has been lost to a sensor that was previously detected.
Error polling data from the PDU.
PRO1 Sentry Switched DC PDU
50 of 211
appears
