Appendix C: Technical Specifications

Data Connections

Although not provided with your PDU when shipped, the RJ45 rolled cable and the RJ45 to DB9F serial port
adapter still work together to allow access to the serial CLI interface from a terminal with a standard DB9M serial
port.
You can order the cable and adapter from Server Technology using the following part numbers:
•
RJ45 to RJ45 Rolled Patch Cable: Part# CAB-1205
•
RJ45 to DB9F Serial Port Adapter: Part# ADP-0019
RS-232 Port
The PRO1 units are equipped standard with an RJ45 DTE RS-232c serial port. This connector can be used for direct
local access or from other serial devices such as a terminal server.
RJ45 to DB9F Serial Port Adapter
In addition, an RJ45 to DB9F serial port adapter can be used in conjunction with the RJ45 rolled cable to connect

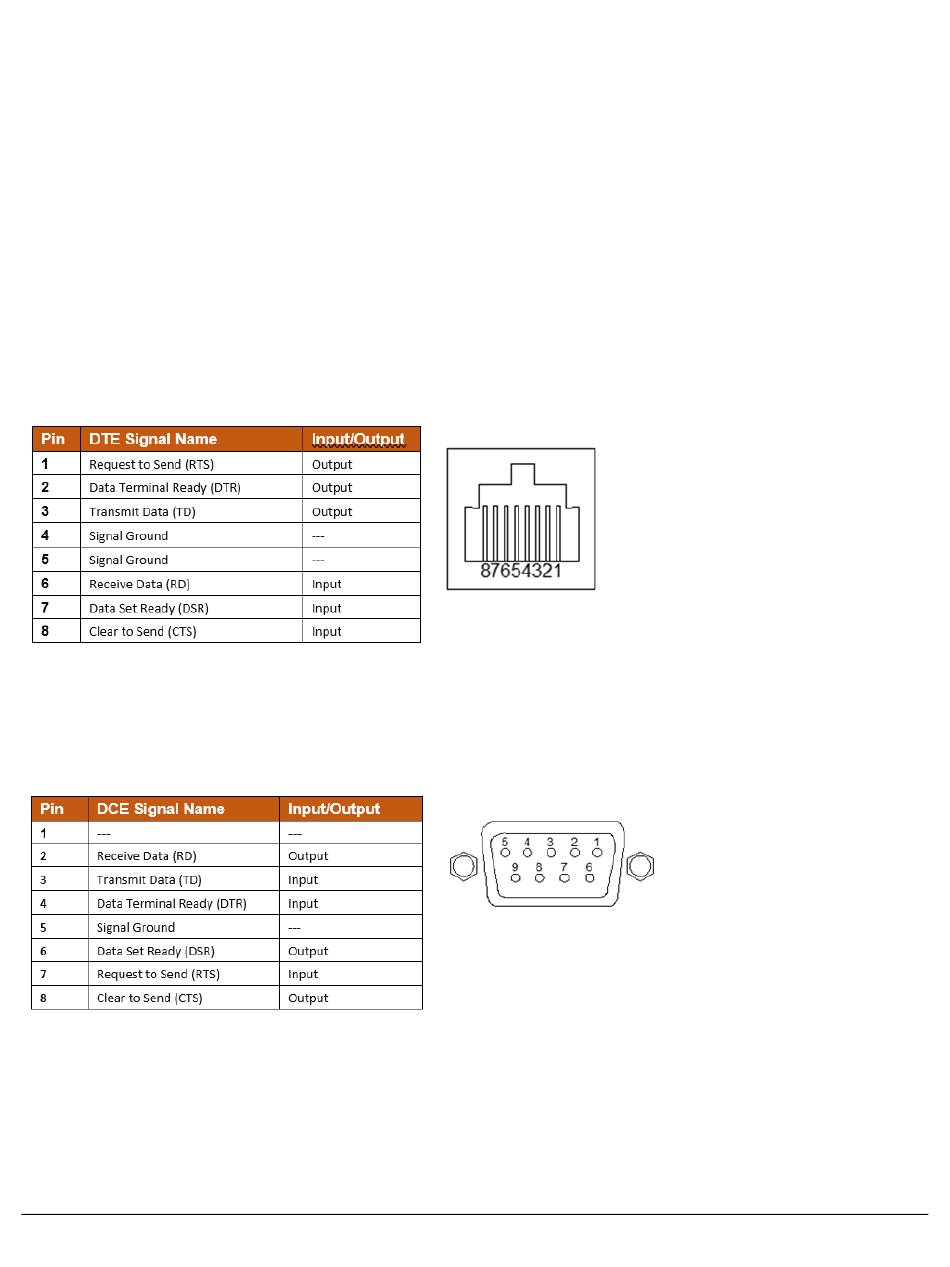

to a PC DB9M DCE serial port. The pinouts below show the use of the serial port adapter with the RJ45 rolled
cable.
