LEGRAND On-Q F7804 Installation Sheet

301 Fulling Mill Road, Suite G
Middletown, PA 17057
Phone (800) 321-2343 / Fax (717) 702-2546
www.onqlegrand.com

1. Introduction

The On-Q/Legrand Trio (see Figure 1) is a low cost, surface mounting bracket for small or retrofit installations.

2. Description

The Trio is available in two configurations. The F7804 consists of a metal bracket capable of holding up to three
single bay style modules, and an impact-resistant cover. The F7809 adds a 1x4 Video Module and a 4x12
telephone module.

3. Installation

A. Mounting the Trio (see Figure 2)
1) Hold bracket up to wall (without cover) and use a pencil to
mark locations for the anchor guide holes.
2) Drill guide holes in wall for anchors. If on drywall, install
anchors provided for use with #10 screws. If mounting
bracket on any other surface than drywall, different anchors
may be required.
3) Install the provided #10 screws into the anchors and mount
the bracket on the screws.
4) To install additional brackets, simply connect the additional
brackets to the primary bracket, mark the guide holes,
remove the bracket, and repeat steps 2 and 3.
5) To attach cover, align slots on top of cover with bracket pins,
push up and snap bottom cover locking tab in place. To
release cover, push up on the cover locking tab located on
the bottom of the cover and pull outward.
©Copyright 2008 by On-Q/Legrand All Rights
INSTRUCTION/INSTALLATION SHEET
Trio Modular Bracket and Cover /
Home Network Kit

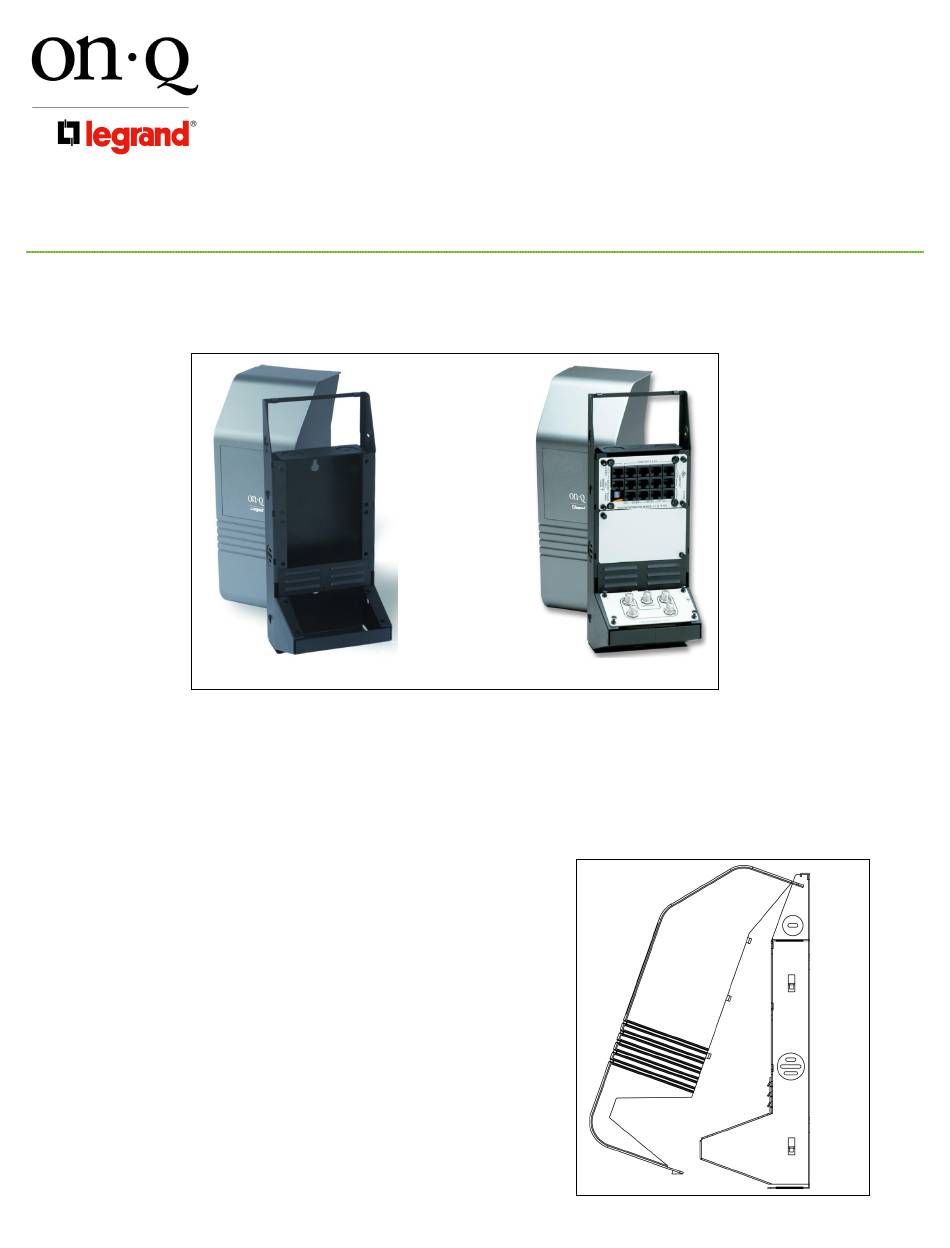

Figure 1
F7804
.
Reserved
IS-0412 REV. O
F7809
Figure 2
Page 1 of 2
