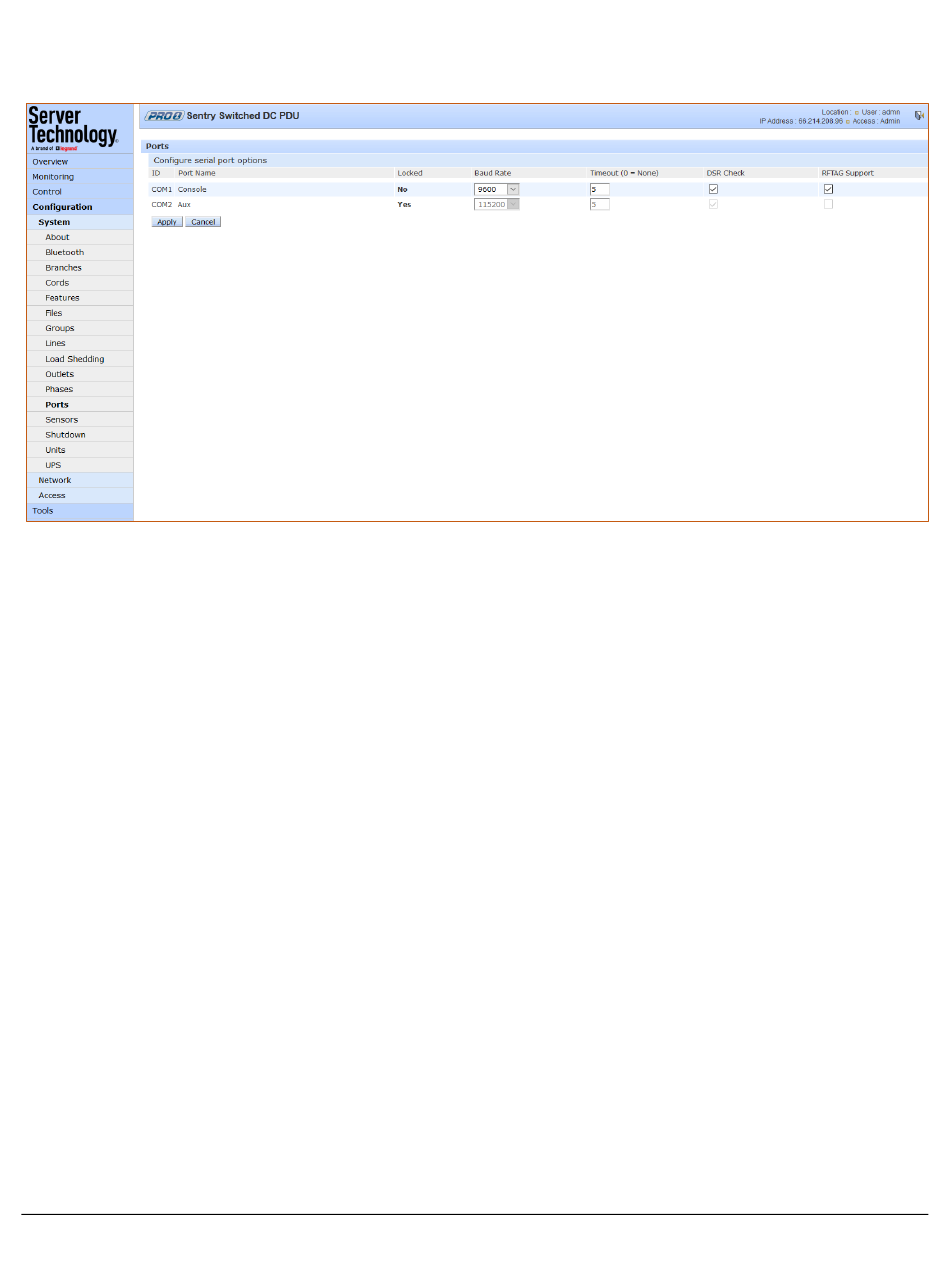

Configuration > System > Ports
The Ports page configures options for the external serial port on the PDU.
To configure the serial port:
1. From the Baud Rate drop-down menu, select the data rate.
2. Set the Timeout value (in minutes) for the serial port inactivity timeout period. The timeout period defines
the maximum period of inactivity before automatically closing the pass-thru session. Range is 0-60
(minutes); default is 5 minutes; setting the value to "0" disables the timeout.
3. From the DSR Check drop-down menu, select On or Off to enable or disable serial port active signal
checking.
4. Check the RFTAG Support box to enable RF Code tag (RFTAG) support for the selected (and unlocked)
port. If the port is locked, any attempts to change this setting will be ignored.
5. Click Apply.
Notes:
•
Pass-Thru connections can only be initiated from the Command Line Interface (CLI) in a Telnet/SSH
session.
•
One concurrent Serial session is allowed. If the unit has two serial ports, then two simultaneous serial
sessions will be supported.
