8.10
8.10.1
Maintenance manual
GMK5250L

Central lubrication system

Checking the level

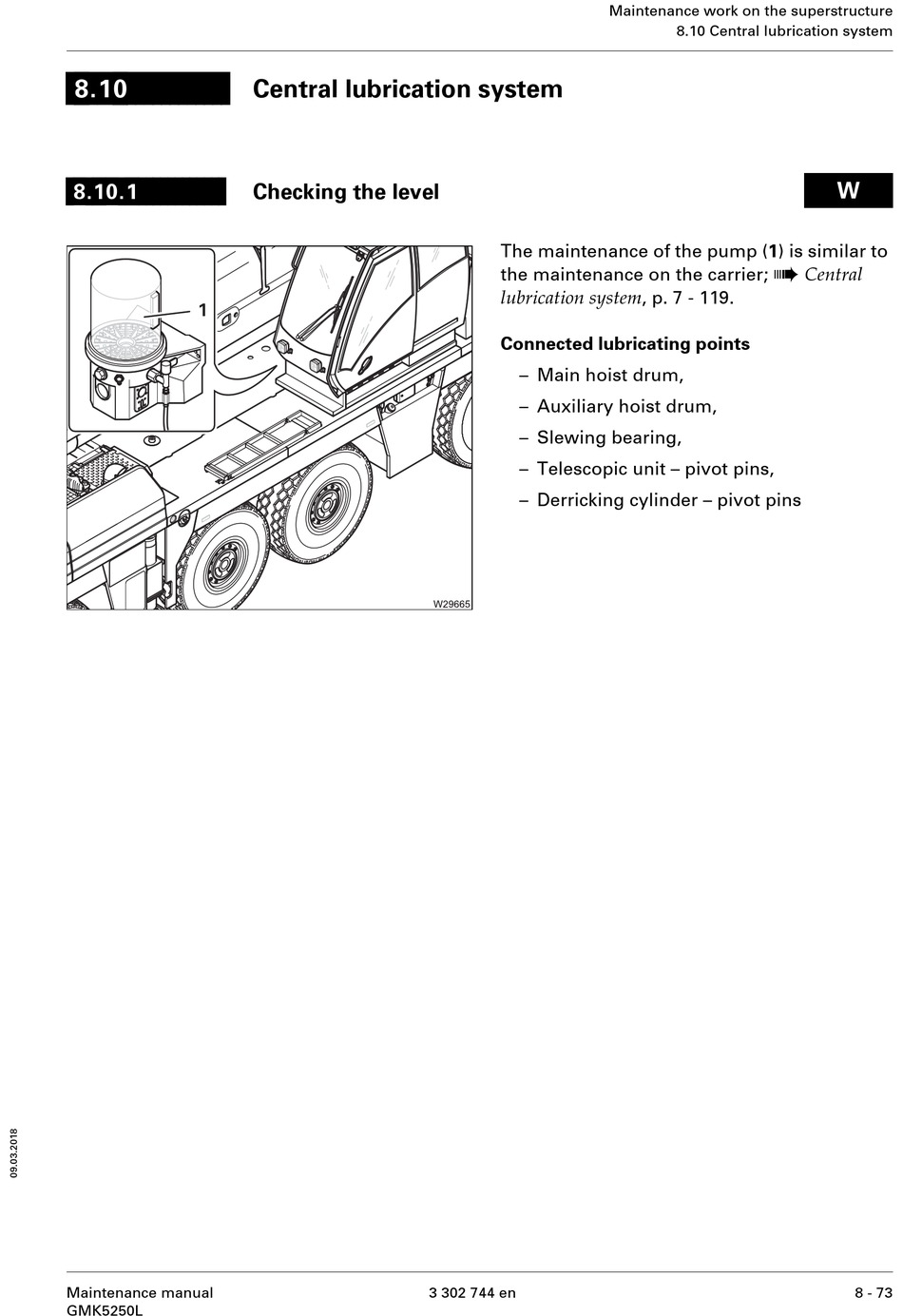

The maintenance of the pump (1) is similar to
the maintenance on the carrier;
lubrication system , p. 7 - 119.
Connected lubricating points
– Main hoist drum,
– Auxiliary hoist drum,
– Slewing bearing,
– Telescopic unit – pivot pins,
– Derricking cylinder – pivot pins
3 302 744 en
Maintenance work on the superstructure
8.10 Central lubrication system
à
W
Central
8 - 73
