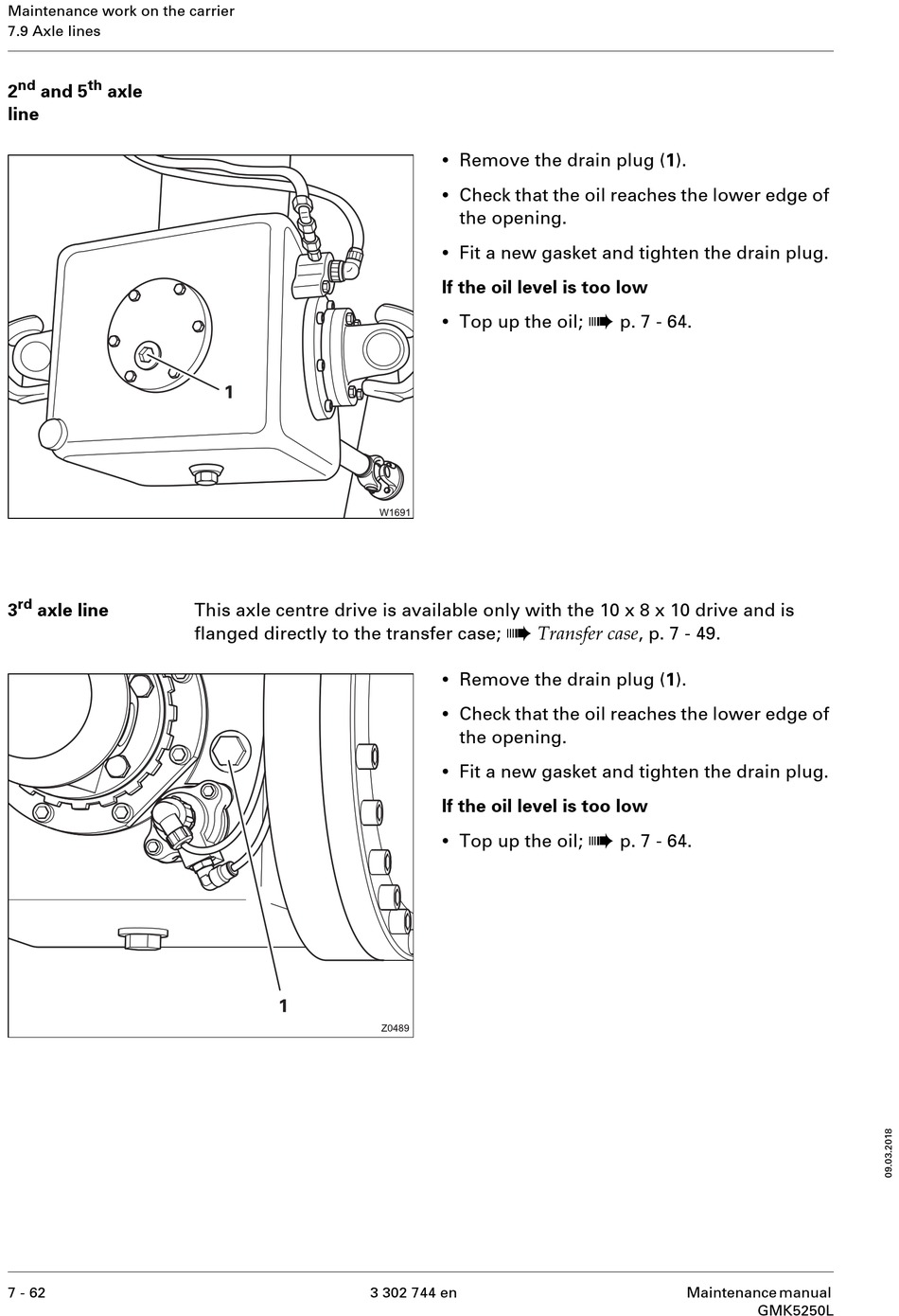

Maintenance work on the carrier
7.9 Axle lines
nd th
2 and 5 axle
line
rd
3 axle line
7 - 62
This axle centre drive is available only with the 10 x 8 x 10 drive and is
flanged directly to the transfer case;
•
Remove the drain plug (1).
•
Check that the oil reaches the lower edge of
the opening.
•
Fit a new gasket and tighten the drain plug.
If the oil level is too low
•
Top up the oil;
à
Transfer case , p. 7 - 49.
•
Remove the drain plug (1).
•
Check that the oil reaches the lower edge of
the opening.
•
Fit a new gasket and tighten the drain plug.
If the oil level is too low
•
Top up the oil;
3 302 744 en
à
p. 7 - 64.
