Changing The Viab Oil - Manitowoc Grove GMK 5250L Maintenance Manual

7.6.4
Oil, spare parts
and tools
Prerequisites
Draining oil
G
Maintenance manual
GMK5250L

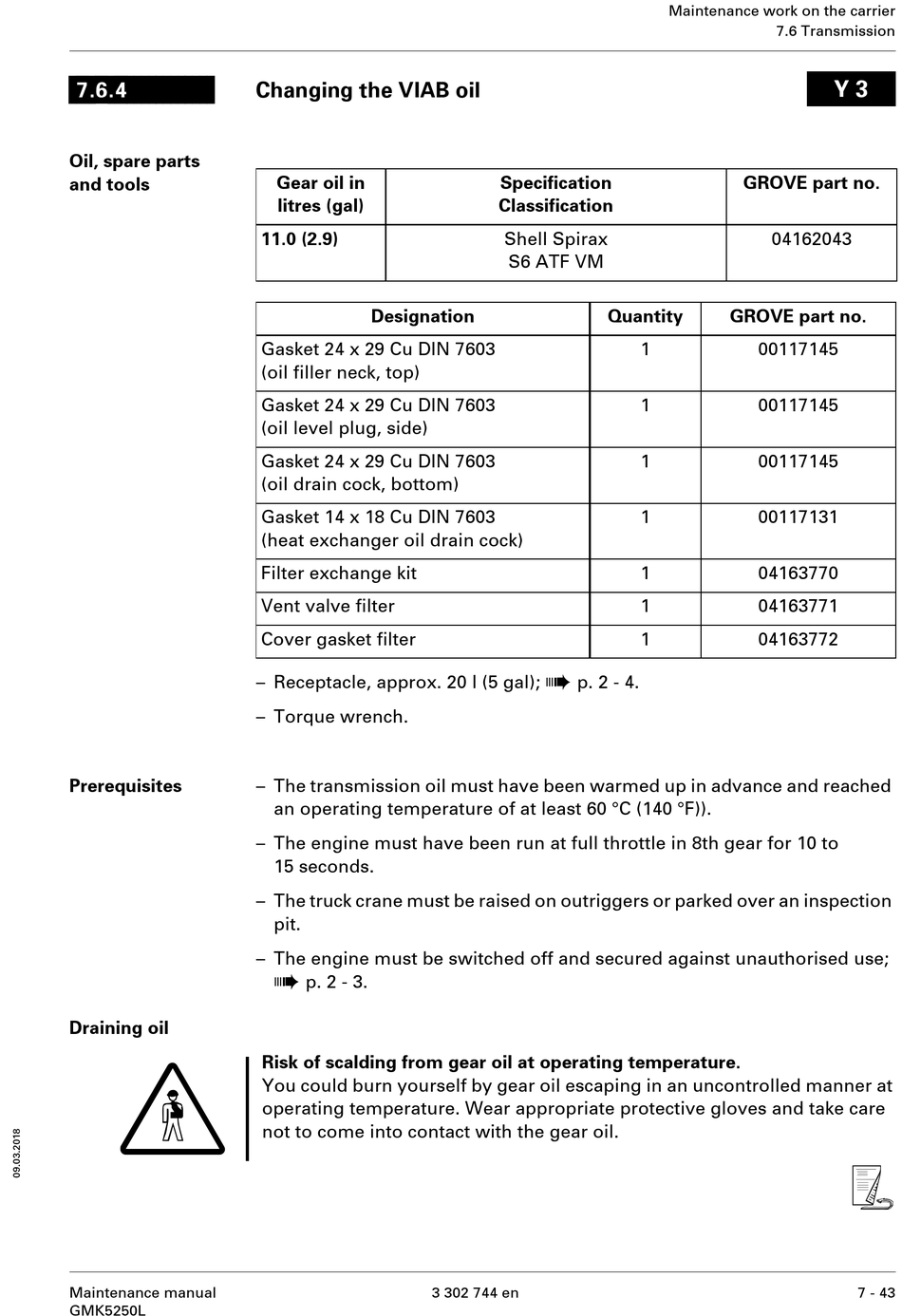

Changing the VIAB oil

Gear oil in
litres (gal)
11.0 (2.9)
Designation
Gasket 24 x 29 Cu DIN 7603
(oil filler neck, top)
Gasket 24 x 29 Cu DIN 7603
(oil level plug, side)
Gasket 24 x 29 Cu DIN 7603
(oil drain cock, bottom)
Gasket 14 x 18 Cu DIN 7603
(heat exchanger oil drain cock)
Filter exchange kit
Vent valve filter
Cover gasket filter
– Receptacle, approx. 20 l (5 gal);
– Torque wrench.
– The transmission oil must have been warmed up in advance and reached
an operating temperature of at least 60 °C (140 °F)).
– The engine must have been run at full throttle in 8th gear for 10 to
15 seconds.
– The truck crane must be raised on outriggers or parked over an inspection
pit.
– The engine must be switched off and secured against unauthorised use;
à
p. 2 - 3.
Risk of scalding from gear oil at operating temperature.
You could burn yourself by gear oil escaping in an uncontrolled manner at
operating temperature. Wear appropriate protective gloves and take care
not to come into contact with the gear oil.
Specification
Classification
Shell Spirax
S6 ATF VM
à
p. 2 - 4.
3 302 744 en
Maintenance work on the carrier
7.6 Transmission
GROVE part no.
04162043
Quantity GROVE part no.
1 00117145
1 00117145
1 00117145
1 00117131
1 04163770
1 04163771
1 04163772
Y 3
s
7 - 43
