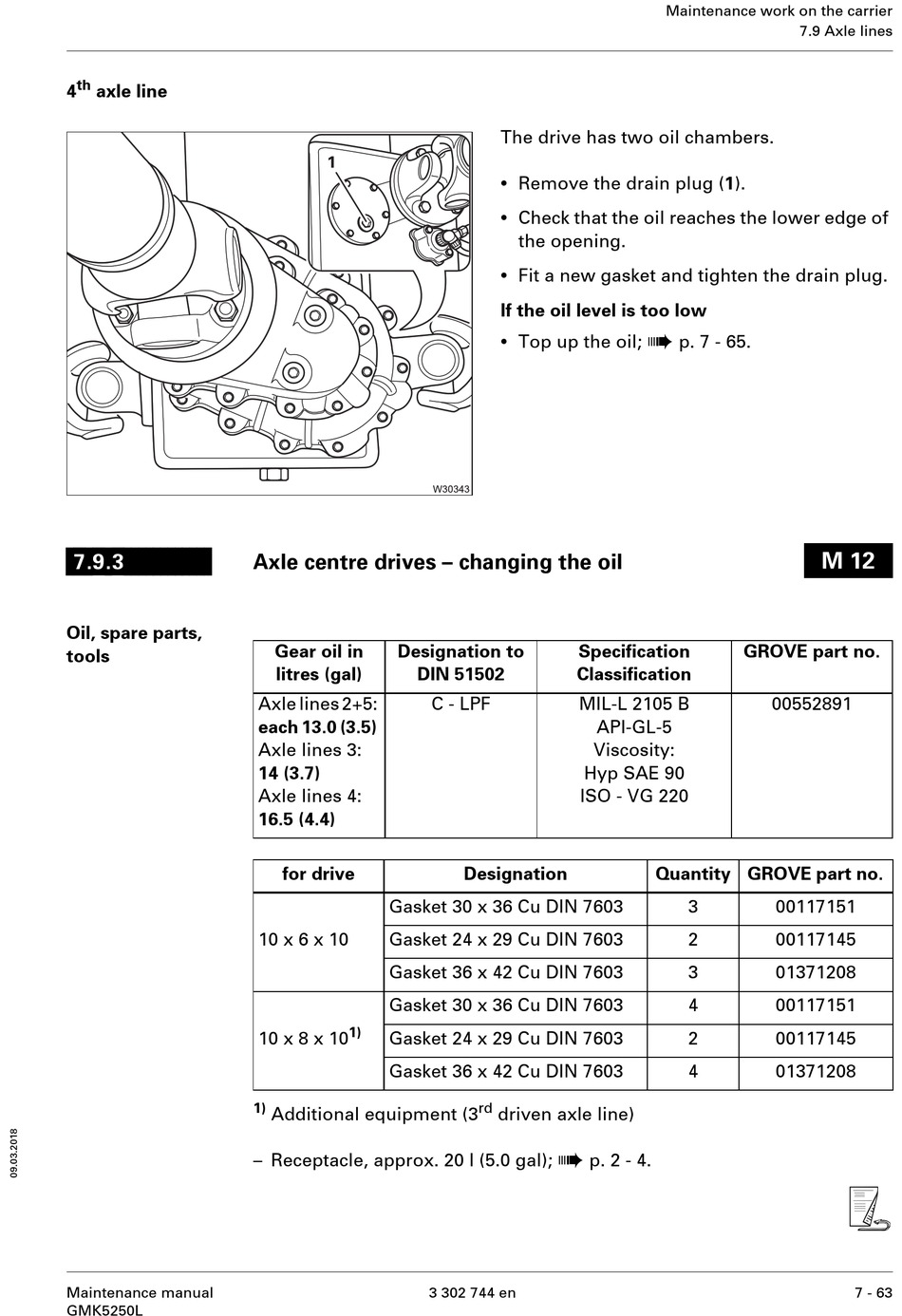

Axle Centre Drives - Changing The Oil - Manitowoc Grove GMK 5250L Maintenance Manual

th
4 axle line
7.9.3
Oil, spare parts,
tools
Maintenance manual
GMK5250L
Axle centre drives – changing the oil
Gear oil in Designation to
litres (gal) DIN 51502
Axle lines 2+5:
each 13.0 (3.5)
Axle lines 3:
14 (3.7)
Axle lines 4:
16.5 (4.4)
for drive
Gasket 30 x 36 Cu DIN 7603
10 x 6 x 10 Gasket 24 x 29 Cu DIN 7603
Gasket 36 x 42 Cu DIN 7603
Gasket 30 x 36 Cu DIN 7603
1)
10 x 8 x 10 Gasket 24 x 29 Cu DIN 7603
Gasket 36 x 42 Cu DIN 7603
1)
Additional equipment (3
– Receptacle, approx. 20 l (5.0 gal);
The drive has two oil chambers.
•
Remove the drain plug (1).
•
Check that the oil reaches the lower edge of
the opening.
•
Fit a new gasket and tighten the drain plug.
If the oil level is too low
•
Top up the oil;
Specification
Classification
C - LPF MIL-L 2105 B
API-GL-5
Viscosity:
Hyp SAE 90
ISO - VG 220
Designation
rd
driven axle line)
à
p. 2 - 4.
3 302 744 en
Maintenance work on the carrier
7.9 Axle lines
à
p. 7 - 65.
GROVE part no.
00552891
Quantity GROVE part no.
3 00117151
2 00117145
3 01371208
4 00117151
2 00117145
4 01371208
M 12
s
7 - 63
