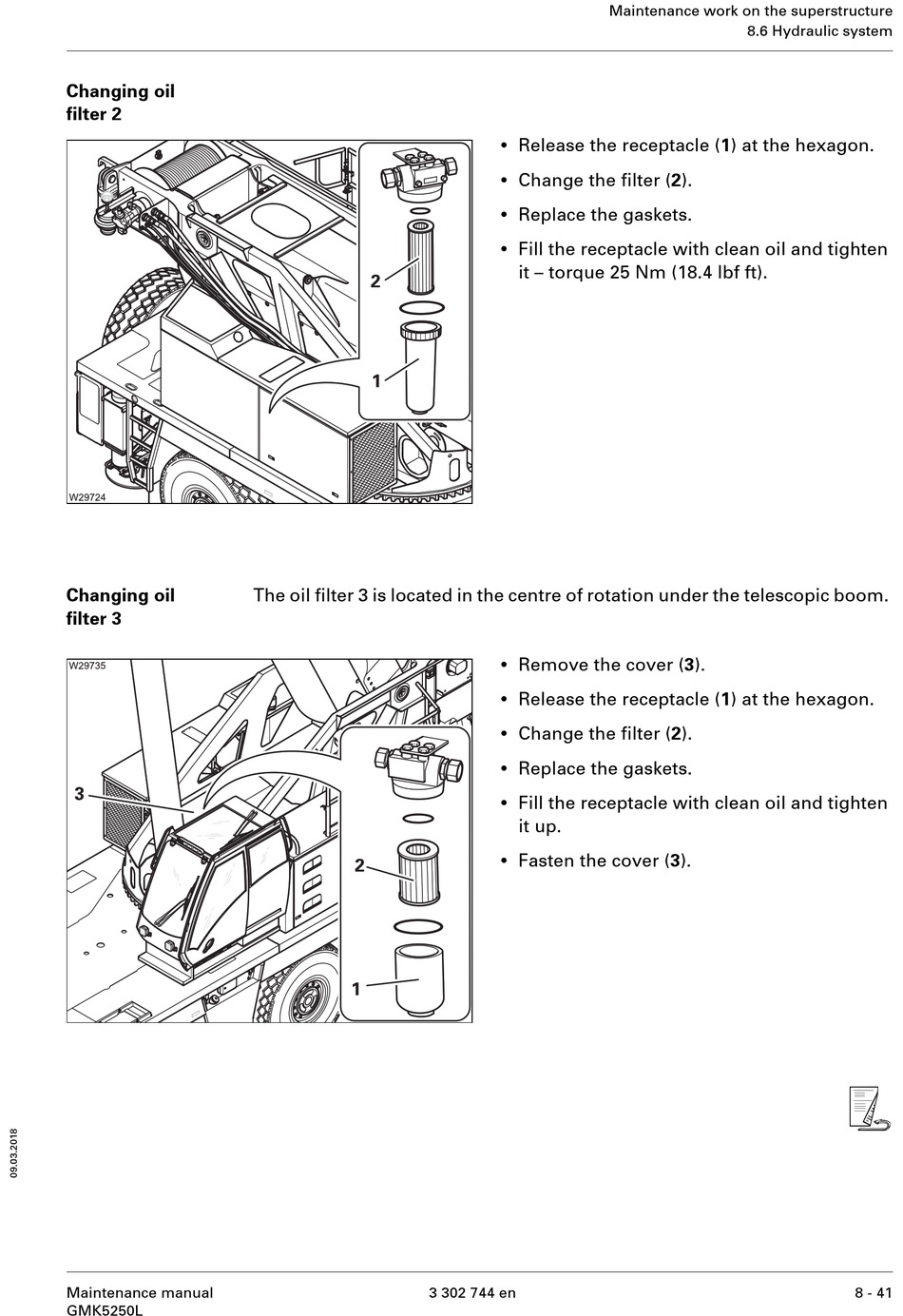

Changing oil
filter 2
Changing oil
filter 3
Maintenance manual
GMK5250L
The oil filter 3 is located in the centre of rotation under the telescopic boom.
•
Release the receptacle (1) at the hexagon.
•
Change the filter (2).
•
Replace the gaskets.
•
Fill the receptacle with clean oil and tighten
it – torque 25 Nm (18.4 lbf ft).
•
Remove the cover (3).
•
Release the receptacle (1) at the hexagon.
•
Change the filter (2).
•
Replace the gaskets.
•
Fill the receptacle with clean oil and tighten
it up.
•
Fasten the cover (3).
3 302 744 en
Maintenance work on the superstructure
8.6 Hydraulic system
s
8 - 41
