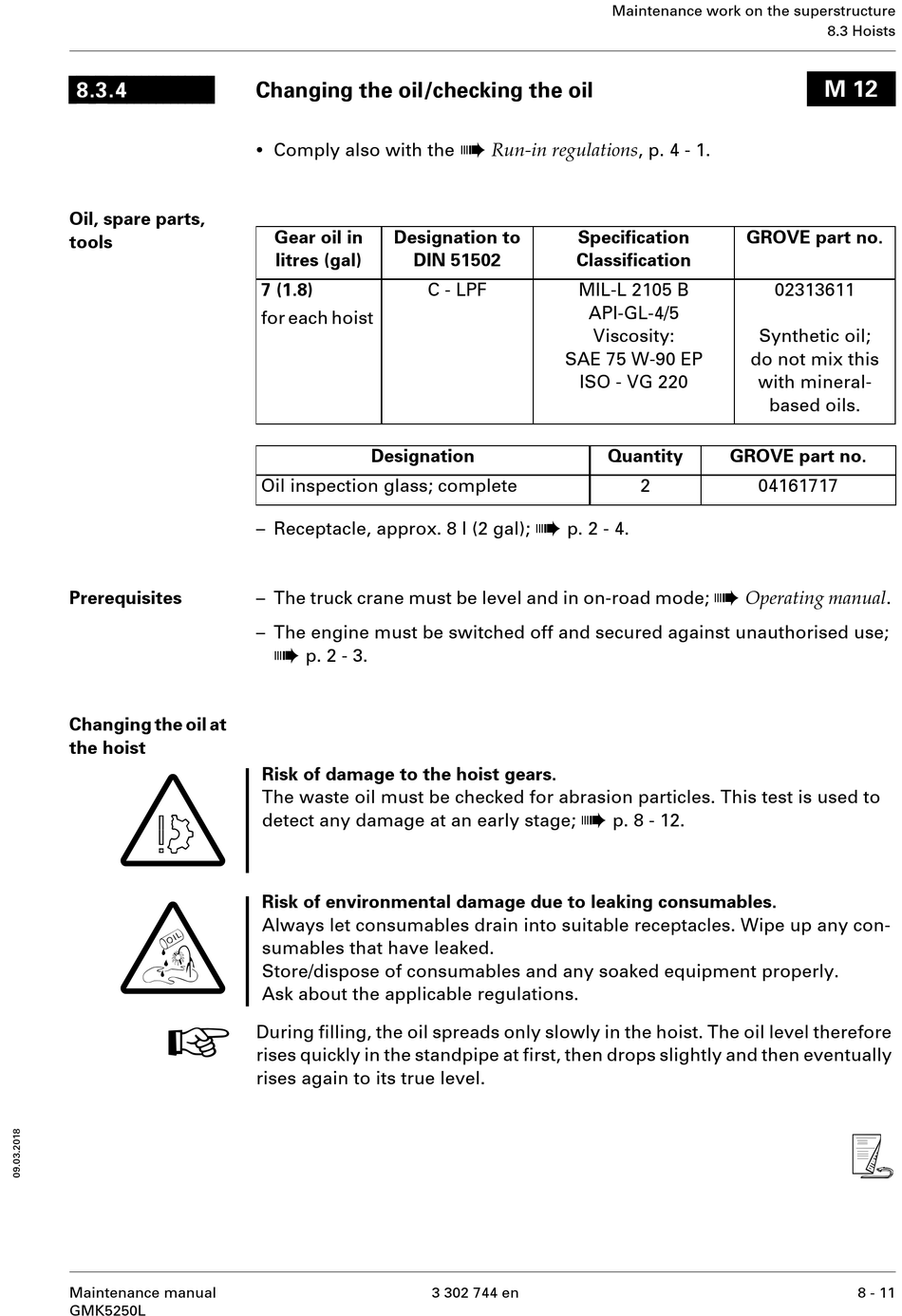

Changing The Oil/Checking The Oil - Manitowoc Grove GMK 5250L Maintenance Manual

8.3.4
Oil, spare parts,
tools
Prerequisites
Changing the oil at
the hoist
S
O
H
Maintenance manual
GMK5250L

Changing the oil/checking the oil

•
Comply also with the
Gear oil in Designation to
litres (gal) DIN 51502
7 (1.8)
for each hoist
Designation
Oil inspection glass; complete
– Receptacle, approx. 8 l (2 gal);
– The truck crane must be level and in on-road mode;
– The engine must be switched off and secured against unauthorised use;
à
p. 2 - 3.
Risk of damage to the hoist gears.
The waste oil must be checked for abrasion particles. This test is used to
detect any damage at an early stage;
Risk of environmental damage due to leaking consumables.
Always let consumables drain into suitable receptacles. Wipe up any con-
sumables that have leaked.
Store/dispose of consumables and any soaked equipment properly.
Ask about the applicable regulations.
During filling, the oil spreads only slowly in the hoist. The oil level therefore
rises quickly in the standpipe at first, then drops slightly and then eventually
rises again to its true level.
à
Run-in regulations , p. 4 - 1.
Specification
Classification
C - LPF MIL-L 2105 B
API-GL-4/5
Viscosity:
SAE 75 W-90 EP
ISO - VG 220
à
p. 2 - 4.
à
3 302 744 en
Maintenance work on the superstructure
GROVE part no.
02313611
Synthetic oil;
do not mix this
with mineral-
based oils.
Quantity GROVE part no.
2 04161717
à
Operating manual .
p. 8 - 12.
