7.8
Access
Maintenance manual
GMK5250L

Angle gear

•
Comply also with the
à
Run-in regulations , p. 4 - 1.

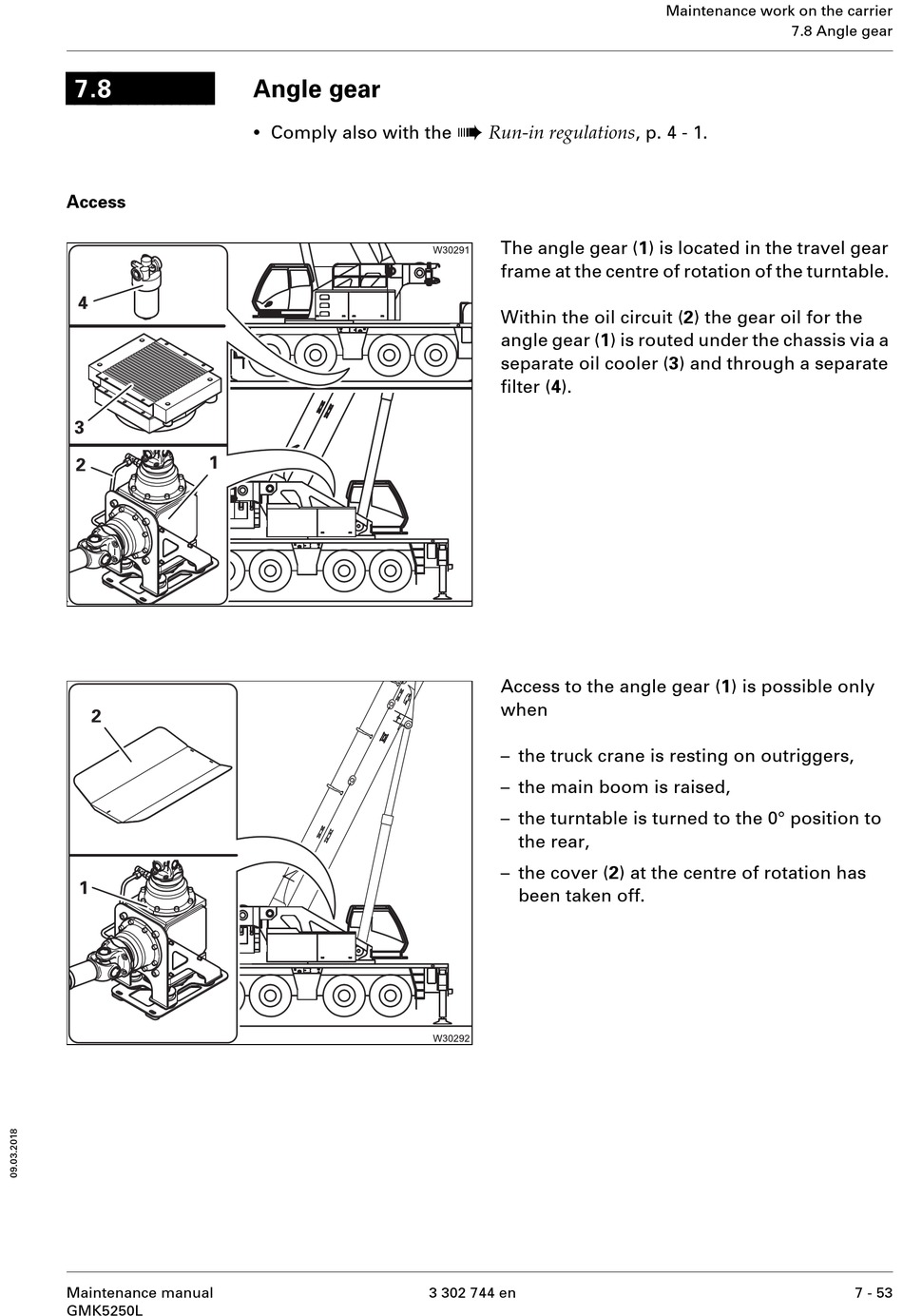

The angle gear (1) is located in the travel gear
frame at the centre of rotation of the turntable.
Within the oil circuit (2) the gear oil for the
angle gear (1) is routed under the chassis via a
separate oil cooler (3) and through a separate
filter (4).
Access to the angle gear (1) is possible only
when
– the truck crane is resting on outriggers,
– the main boom is raised,
– the turntable is turned to the 0° position to
the rear,
– the cover (2) at the centre of rotation has
been taken off.
3 302 744 en
Maintenance work on the carrier
7.8 Angle gear
7 - 53
