Maintenance work on the carrier
7.17 Electrical system
7.17.4
Prerequisites
Battery charger
Connecting
Charging
After completion
of charging
7 - 128

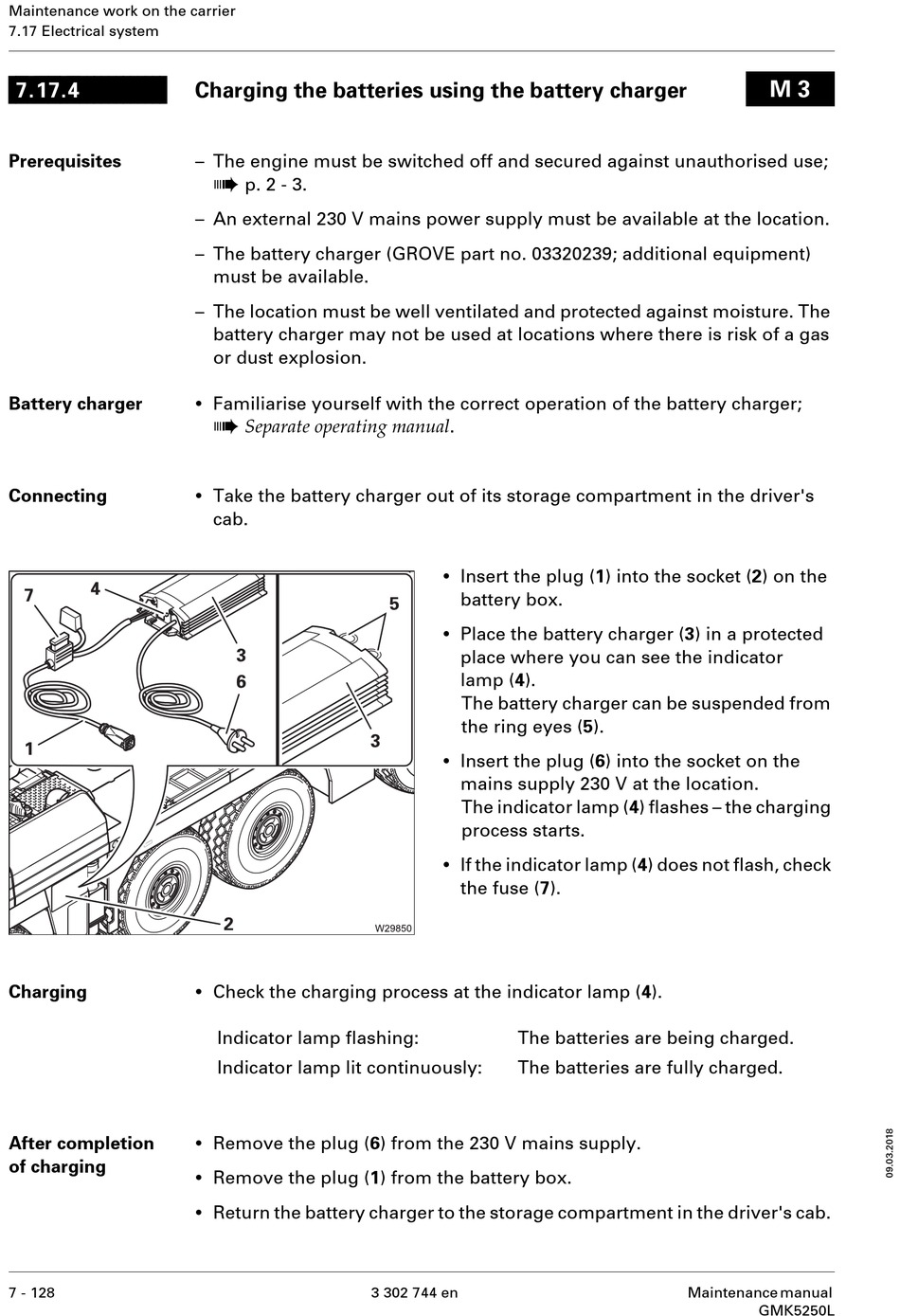

Charging the batteries using the battery charger

– The engine must be switched off and secured against unauthorised use;
à
p. 2 - 3.
– An external 230 V mains power supply must be available at the location.
– The battery charger (GROVE part no. 03320239; additional equipment)
must be available.
– The location must be well ventilated and protected against moisture. The
battery charger may not be used at locations where there is risk of a gas
or dust explosion.
•
Familiarise yourself with the correct operation of the battery charger;
à
Separate operating manual .
•
Take the battery charger out of its storage compartment in the driver's
cab.
•
Check the charging process at the indicator lamp (4).
Indicator lamp flashing:
Indicator lamp lit continuously:
•
Remove the plug (6) from the 230 V mains supply.
•
Remove the plug (1) from the battery box.
•
Return the battery charger to the storage compartment in the driver's cab.
•
Insert the plug (1) into the socket (2) on the
battery box.
•
Place the battery charger (3) in a protected
place where you can see the indicator
lamp (4).
The battery charger can be suspended from
the ring eyes (5).
•
Insert the plug (6) into the socket on the
mains supply 230 V at the location.
The indicator lamp (4) flashes – the charging
process starts.
•
If the indicator lamp (4) does not flash, check
the fuse (7).
The batteries are being charged.
The batteries are fully charged.
3 302 744 en
M 3
Maintenance manual
GMK5250L
