Maintenance work on the carrier
7.5 Exhaust system with exhaust emission control
7.5.1
Check the
following
H
7.5.2
Consumable and
tools
Prerequisites
7 - 34

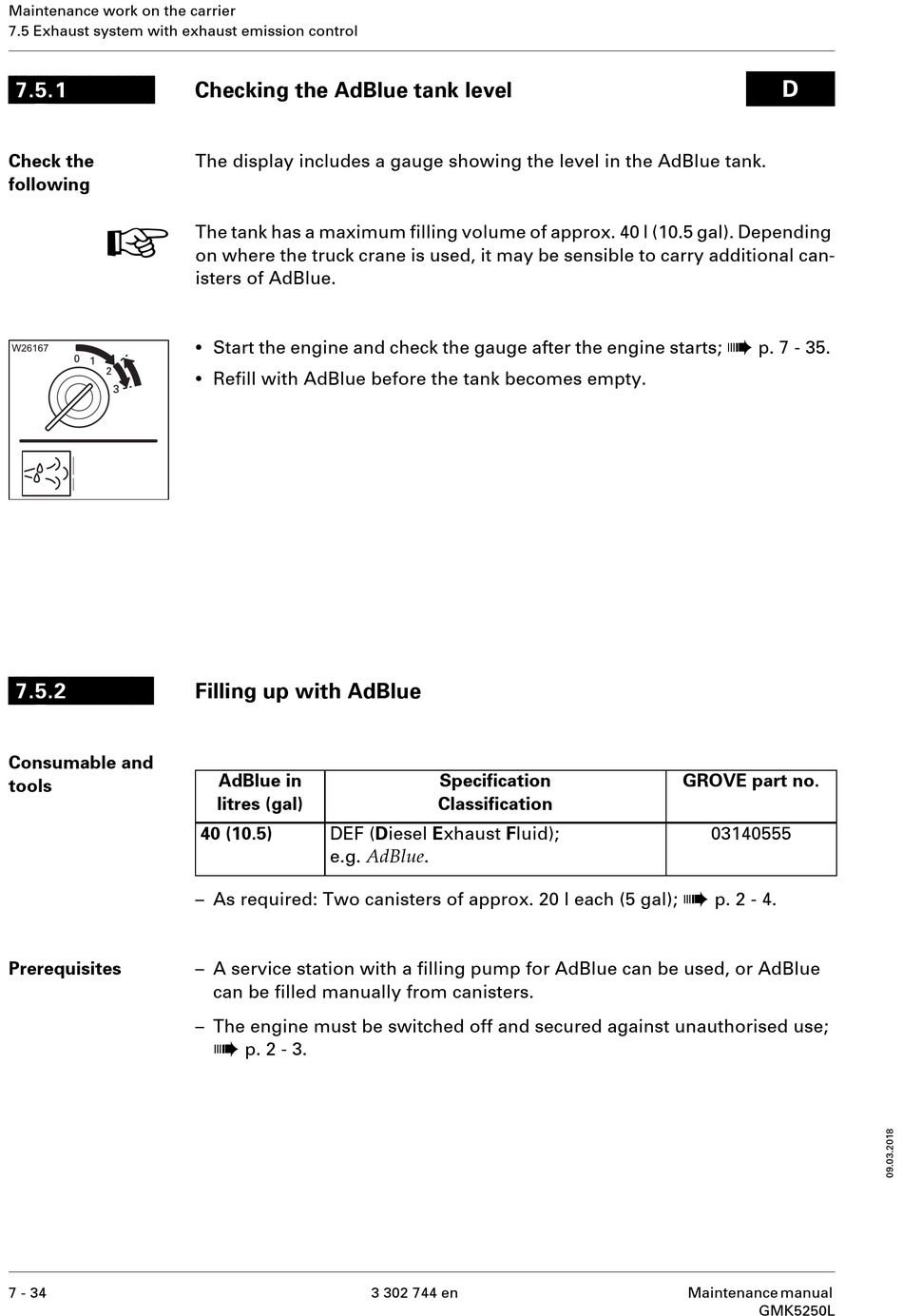

Checking the AdBlue tank level

The display includes a gauge showing the level in the AdBlue tank.
The tank has a maximum filling volume of approx. 40 l (10.5 gal). Depending
on where the truck crane is used, it may be sensible to carry additional can-
isters of AdBlue.
•
Start the engine and check the gauge after the engine starts;
•
Refill with AdBlue before the tank becomes empty.

Filling up with AdBlue

AdBlue in
litres (gal)
40 (10.5) DEF (Diesel Exhaust Fluid);
e.g. AdBlue .
– As required: Two canisters of approx. 20 l each (5 gal);
– A service station with a filling pump for AdBlue can be used, or AdBlue
can be filled manually from canisters.
– The engine must be switched off and secured against unauthorised use;
à
p. 2 - 3.
Specification
Classification
3 302 744 en
D
à
p. 7 - 35.
GROVE part no.
03140555
à
p. 2 - 4.
Maintenance manual
GMK5250L
