Lubricating The Cardan Shafts In The Axle Lines - Manitowoc Grove GMK 5250L Maintenance Manual

Maintenance work on the carrier
7.9 Axle lines
7.9.6
H
Grease, spare
parts, tools
Prerequisites
Greasing
7 - 70

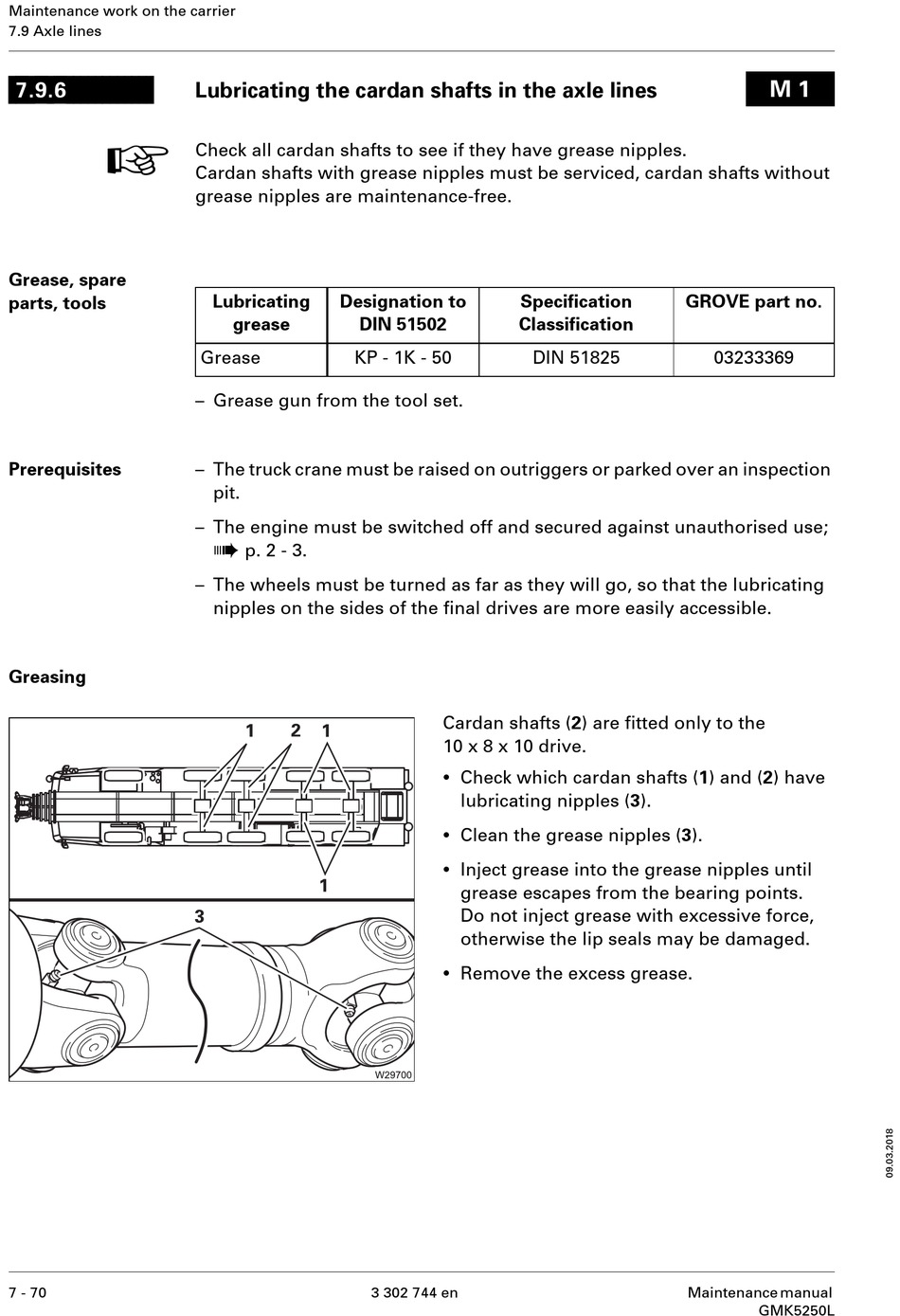

Lubricating the cardan shafts in the axle lines

Check all cardan shafts to see if they have grease nipples.
Cardan shafts with grease nipples must be serviced, cardan shafts without
grease nipples are maintenance-free.
Lubricating Designation to
grease DIN 51502
Grease KP - 1K - 50
– Grease gun from the tool set.
– The truck crane must be raised on outriggers or parked over an inspection
pit.
– The engine must be switched off and secured against unauthorised use;
à
p. 2 - 3.
– The wheels must be turned as far as they will go, so that the lubricating
nipples on the sides of the final drives are more easily accessible.
Specification
Classification
DIN 51825
Cardan shafts (2) are fitted only to the
10 x 8 x 10 drive.
•
Check which cardan shafts (1) and (2) have
lubricating nipples (3).
•
Clean the grease nipples (3).
•
Inject grease into the grease nipples until
grease escapes from the bearing points.
Do not inject grease with excessive force,
otherwise the lip seals may be damaged.
•
Remove the excess grease.
3 302 744 en
M 1
GROVE part no.
03233369
Maintenance manual
GMK5250L
