Maintenance work on the carrier
7.6 Transmission
7.6.3
Spare parts and
tools
Prerequisites
Checking the oil
level
S
7 - 42

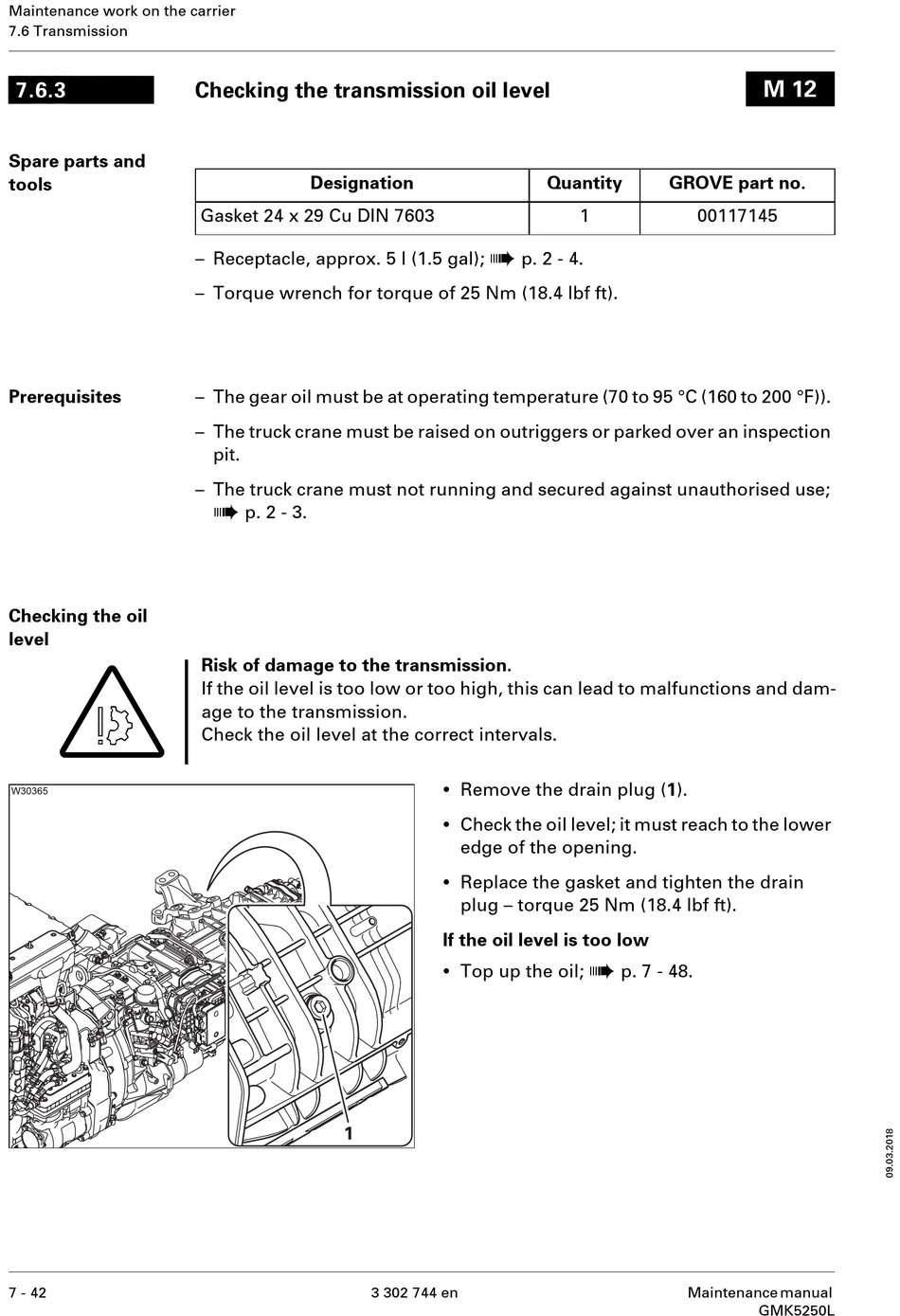

Checking the transmission oil level

Designation
Gasket 24 x 29 Cu DIN 7603
– Receptacle, approx. 5 l (1.5 gal);
– Torque wrench for torque of 25 Nm (18.4 lbf ft).
– The gear oil must be at operating temperature (70 to 95 °C (160 to 200 °F)).
– The truck crane must be raised on outriggers or parked over an inspection
pit.
– The truck crane must not running and secured against unauthorised use;
à
p. 2 - 3.
Risk of damage to the transmission.
If the oil level is too low or too high, this can lead to malfunctions and dam-
age to the transmission.
Check the oil level at the correct intervals.
à
p. 2 - 4.
•
Remove the drain plug (1).
•
Check the oil level; it must reach to the lower
edge of the opening.
•
Replace the gasket and tighten the drain
plug – torque 25 Nm (18.4 lbf ft).
If the oil level is too low
•
Top up the oil;
3 302 744 en
Quantity GROVE part no.
1 00117145
à
p. 7 - 48.
Maintenance manual
M 12
GMK5250L
